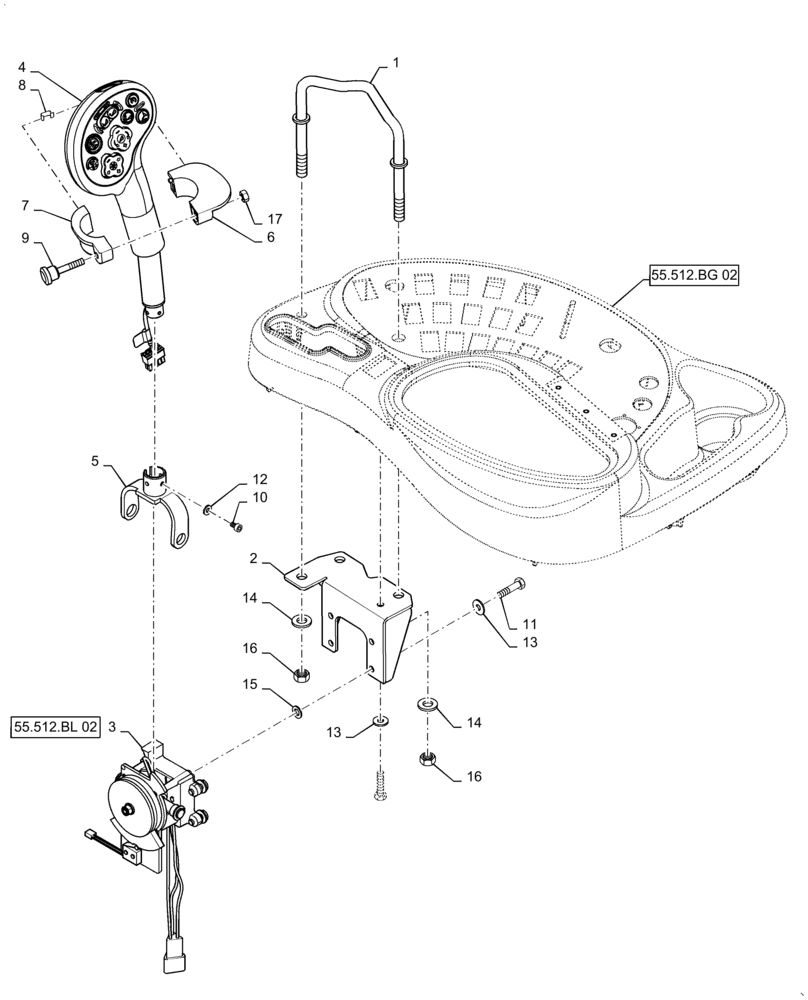

Запчасти Case IH WD2304 (55.512.BL[01]) - HANDLE, MULTIPURPOSE, RH (55) - ELECTRICAL SYSTEMS

1

87609672

SUPPORT ASSY.

Dark Gray

1шт.

2

87013419

SUPPORT

1шт.

3

87026190

BASE

Handle

1шт.

4

84512082

LEVER ASSY & KNOB

No Service Parts Available

1шт.

5

84469476

BRACKET

Mounting

1шт.

6

86997342

SUPPORT

RH

1шт.

7

86997341

SUPPORT

LH

1шт.

8

1343962C1

CLIP,ELECTRICAL

Palm Rest

1шт.

9

86618563

KNOB

1/4x1.25 Stud

1шт.

10

14418924

SCREW,M4 x 8mm, Cl 8.8, Full Thd

3шт.

11

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

7шт.

12

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

3шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

7шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

15

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

16

9628503

NUT,3/8"-16, G5

2шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.
