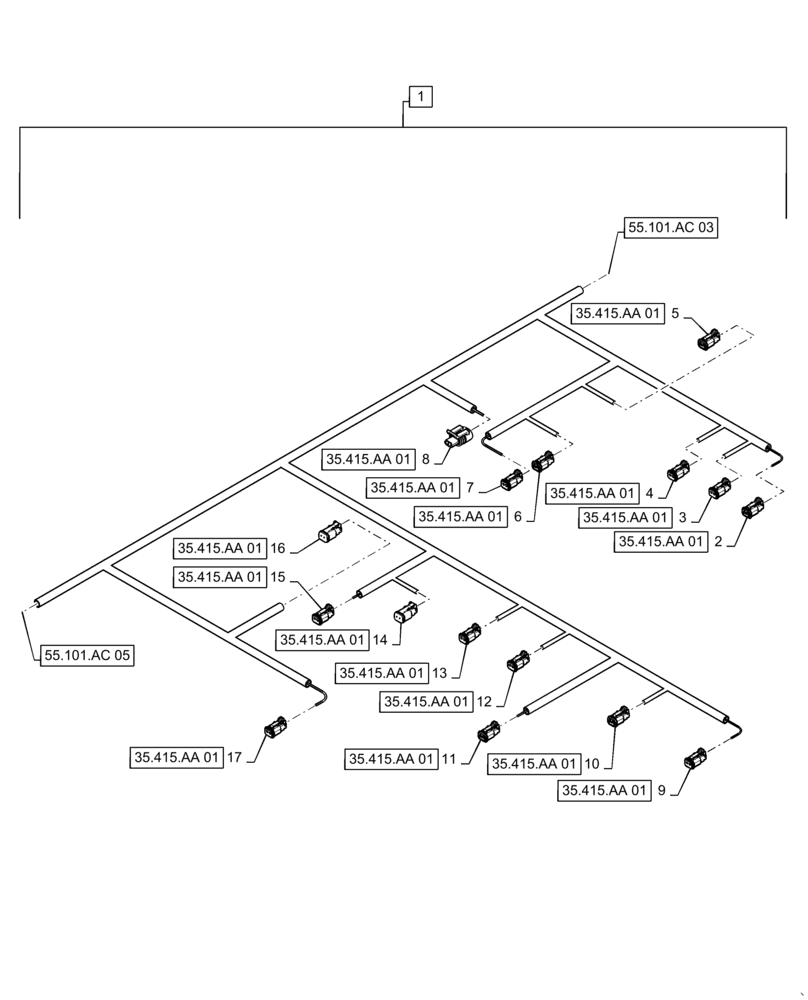

Запчасти Case IH WD2304 (55.101.AC[04]) - WIRE HARNESS & CONNECTOR, DRAPER, FD6 (CONT.) (55) - ELECTRICAL SYSTEMS

1

47474921

WIRE HARNESS

FD6, Incl 2 - 17 (Continued)

1шт.

2

47486924

ELEC CONNECTOR

Y-007 Solenoid, Header Lower Valve, Left (Brown), X-098

1шт.

2

84277220

LOCKING TAB,Wedge Lock

Lock, Y-007 Solenoid, Header Lower Valve, Left (Brown), X-098

1шт.

2

84277237

TERMINAL

Y-007 Solenoid, Header Lower Valve, Left (Brown), X-098

2шт.

3

84277535

ELEC CONNECTOR,Female, 2 Cavities

Y-009 Solenoid, Header Float Valve, Left (Yellow), X-100

1шт.

3

84277220

LOCKING TAB,Wedge Lock

Lock, Y-009 Solenoid, Header Float Valve, Left (Yellow), X-100

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-009 Solenoid, Header Float Valve, Left (Yellow), X-100

2шт.

4

84277534

ELEC CONNECTOR

Y-002 Solenoid, Header Flotation, Left (Green), X-093

1шт.

4

84277220

LOCKING TAB,Wedge Lock

Lock, Y-002 Solenoid, Header Flotation, Left (Green), X-093

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-002 Solenoid, Header Flotation, Left (Green), X-093

2шт.

5

84277534

ELEC CONNECTOR

Y-013 Solenoid, Header Tilt (Brown), X-103

1шт.

5

84277220

LOCKING TAB,Wedge Lock

Lock, Y-013 Solenoid, Header Tilt (Brown), X-103

1шт.

5

84277237

TERMINAL

Y-013 Solenoid, Header Tilt (Brown), X-103

2шт.

6

47461911

ELEC CONNECTOR

Y-028 Solenoid, Brake Valve, Release (White), X-073

1шт.

6

84277220

LOCKING TAB,Wedge Lock

Lock, Y-028 Solenoid, Brake Valve, Release (White), X-073

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-028 Solenoid, Brake Valve, Release (White), X-073

2шт.

7

84277193

ELEC CONNECTOR

Y-023 Solenoid, Ground Speed High (Gray), X-072

1шт.

7

84277220

LOCKING TAB,Wedge Lock

Lock, Y-023 Solenoid, Ground Speed High (Gray), X-072

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-023 Solenoid, Ground Speed High (Gray), X-072

2шт.

8

87690432

ELEC CONNECTOR

R-007 Resistor, Hydraulic Oil Temperature, X-140

1шт.

8

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

R-007 Resistor, Hydraulic Oil Temperature, X-140

2шт.

9

84277533

ELEC CONNECTOR,Fem, 2 Cavities/Pins

Y-003 Solenoid, Unload Valve, Left (Blue), X-094

1шт.

9

84277220

LOCKING TAB,Wedge Lock

Lock, Y-003 Solenoid, Unload Valve, Left (Blue), X-094

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-003 Solenoid, Unload Valve, Left (Blue), X-094

2шт.

10

47461911

ELEC CONNECTOR

Y-004 Solenoid, Unload Valve, Right (White), X-095

1шт.

10

84277220

LOCKING TAB,Wedge Lock

Lock, Y-004 Solenoid, Unload Valve, Right (White), X-095

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-004 Solenoid, Unload Valve, Right (White), X-095

2шт.

11

47486924

ELEC CONNECTOR

Y-008 Solenoid, Header Lower Valve, Right (Brown), X-099

1шт.

11

84277220

LOCKING TAB,Wedge Lock

Lock, Y-008 Solenoid, Header Lower Valve, Right (Brown), X-099

1шт.

11

84277237

TERMINAL

Y-008 Solenoid, Header Lower Valve, Right (Brown), X-099

2шт.

12

84277535

ELEC CONNECTOR,Female, 2 Cavities

Y-010 Solenoid, Header Float Valve, Right (Yellow), X-101

1шт.

12

84277220

LOCKING TAB,Wedge Lock

Lock, Y-010 Solenoid, Header Float Valve, Right (Yellow), X-101

1шт.

12

84277237

TERMINAL

Y-010 Solenoid, Header Float Valve, Right (Yellow), X-101

2шт.

13

84277534

ELEC CONNECTOR

Y-001 Solenoid, Header Flotation, Right (Green), X-092

1шт.

13

84277220

LOCKING TAB,Wedge Lock

Lock, Y-001 Solenoid, Header Flotation, Right (Green), X-092

1шт.

13

84277237

TERMINAL

Y-001 Solenoid, Header Flotation, Right (Green), X-092

2шт.

14

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-006 Solenoid, Header Raise Valve, Right (Black), X-097

1шт.

14

84074638

LOCKING TAB,Locking Wedge, Green

Lock, Y-006 Solenoid, Header Raise Valve, Right (Black), X-097

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-006 Solenoid, Header Raise Valve, Right (Black), X-097

2шт.

15

84277532

ELEC CONNECTOR

Y-005 Solenoid, Header Raise Valve, Left (Red), X-096

1шт.

15

84277220

LOCKING TAB,Wedge Lock

Lock, Y-005 Solenoid, Header Raise Valve, Left (Red), X-096

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-005 Solenoid, Header Raise Valve, Left (Red), X-096

2шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-065 Solenoid, Lift Arm Power Down (Black), X-146

1шт.

16

84074638

LOCKING TAB,Locking Wedge, Green

Lock, Y-065 Solenoid, Lift Arm Power Down (Black), X-146

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-065 Solenoid, Lift Arm Power Down (Black), X-146

2шт.

17

84277193

ELEC CONNECTOR

Y-064 Solenoid, Ground Speed, Range Low (Gray), X-143

1шт.

17

84277220

LOCKING TAB,Wedge Lock

Lock, Y-064 Solenoid, Ground Speed, Range Low (Gray), X-143

1шт.

17

84277237

TERMINAL

Y-064 Solenoid, Ground Speed, Range Low (Gray), X-143

2шт.
