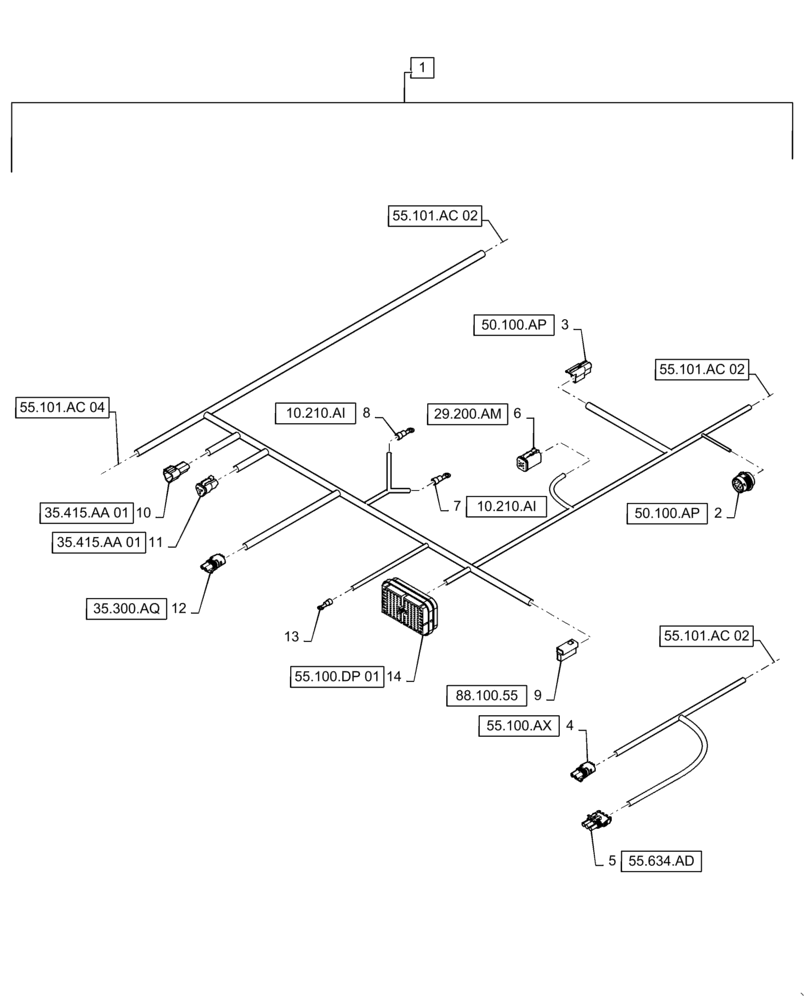

Запчасти Case IH WD2304 (55.101.AC[03]) - WIRE HARNESS & CONNECTOR, DRAPER, FD6 (CONT.) (55) - ELECTRICAL SYSTEMS

1

47474921

WIRE HARNESS

FD6, Incl 2 - 14 (Continued)

1шт.

2

87696087

ELEC CONNECTOR

FM To AC Pass Thru Connector, Manual & ATC, X-033

1шт.

2

84068583

PLUG,12 - 16 Ga, White

FM To AC Pass Thru Connector, Manual & ATC, X-033

1шт.

2

87704524

ELEC CONNECTOR,Pin, Size 12

Terminal, FM To AC Pass Thru Connector, Manual & ATC, X-033

2шт.

2

87695623

ELEC. TERMINAL PIN

FM To AC Pass Thru Connector, Manual & ATC, X-033

10шт.

3

87697530

ELEC CONNECTOR

M-010 Motor, Intake Air Pressurization, X-039

1шт.

3

87693724

TERMINAL CONNECTOR,Tin, 1.00 - 2.00mm

M-010 Motor, Intake Air Pressurization, X-039

2шт.

4

87692855

CONTACT HOUSING,Male, 2 Cavities

B-001 Sensor, Ground Speed, Left, X-178

1шт.

4

87680701

SEAL

B-001 Sensor, Ground Speed, Left, X-178

2шт.

4

87692856

CABLE TERMINAL

B-001 Sensor, Ground Speed, Left, X-178

2шт.

5

87644909

WIRE CONNECTOR,Female, 3 Pins

B-055 Sensor, Lift Arm Position, Left, X-075

1шт.

5

87680701

SEAL

B-055 Sensor, Lift Arm Position, Left, X-075

3шт.

5

87692880

CABLE TERMINAL

B-055 Sensor, Lift Arm Position, Left, X-075

3шт.

6

87694112

ELEC CONNECTOR,Female, 6 Pole

X-042

1шт.

6

87694150

LOCKING TAB,Wedge Lock

X-042

1шт.

6

84391167

CAP

X-042

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-042

5шт.

7

84159852

TERMINAL,#10 Ring, SAE 18 - 20

R-001 Sensor, Fuel Level, X-498

1шт.

8

84159852

TERMINAL,#10 Ring, SAE 18 - 20

R-001 Sensor, Fuel Level, X-047

1шт.

9

87693325

ELEC CONNECTOR,Female, 2 Cavities

M-005 Motor, WIndshield Washer Pump, X-266

1шт.

9

87709400

ELEC. TERMINAL PIN

M-005 Motor, WIndshield Washer Pump, X-266

2шт.

10

87695723

ELEC CONNECTOR,Male , 3 Pole

FD To FM Pass Thru, X-627A

1шт.

10

87695625

WIRE CONNECTOR,Locking, Green

Lock, FD To FM Pass Thru, X-627A

1шт.

10

87695623

ELEC. TERMINAL PIN

FD To FM Pass Thru, X-627A

3шт.

11

87695580

ELEC CONNECTOR,Female, 3 Pole

FM To RS/FD Pass Thru, X-627

1шт.

11

84074639

LOCKING TAB,Wedge Lock

Lock, FM To RS/FD Pass Thru, X-627

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM To RS/FD Pass Thru, X-627

3шт.

12

87692855

CONTACT HOUSING,Male, 2 Cavities

S-019 Switch, Hydraulic Reservoir Level, X-141

1шт.

12

87692856

CABLE TERMINAL

S-019 Switch, Hydraulic Reservoir Level, X-141

2шт.

12

87680701

SEAL

S-019 Switch, Hydraulic Reservoir Level, X-141

2шт.

13

84159856

TERMINAL,5/16" Ring, SAE 14 - 16

GND-005 Left Cab (Under Instructors Seat), X-376

1шт.

14

84479171

MULTIPOLE CONNECTOR,128 Contacts

FM To CM Pass Thru, X-044

1шт.

14

84479172

LOCKING TAB

FM To CM Pass Thru, X-044

2шт.

14

84068583

PLUG,12 - 16 Ga, White

FM To CM Pass Thru, X-044

1шт.

14

87695923

TERMINAL

FM To CM Pass Thru, X-044

3шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM To CM Pass Thru, X-044

73шт.

14

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

FM To CM Pass Thru, X-044

16шт.
