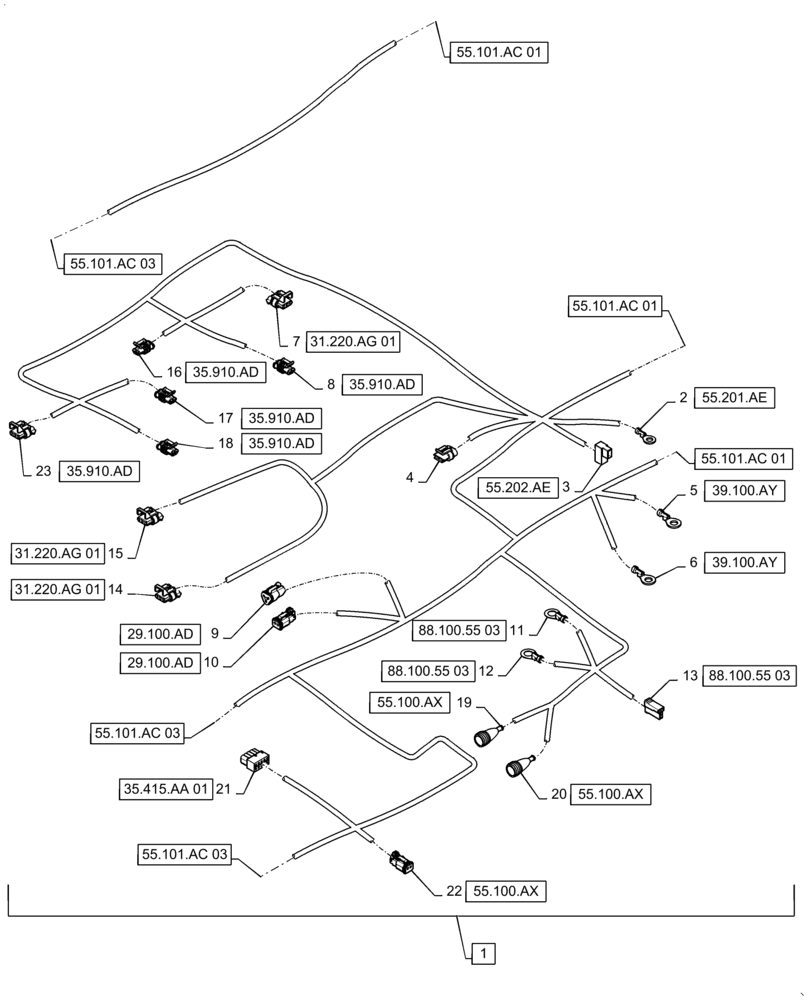

Запчасти Case IH WD2304 (55.101.AC[02]) - WIRE HARNESS & CONNECTOR, DRAPER, FD6 (CONT.) (55) - ELECTRICAL SYSTEMS

1

47474921

WIRE HARNESS

FD6, Incl 2 - 23 (Continued)

1шт.

2

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

M-008 Motor, Starter, X-016

1шт.

3

84120017

ELEC CONNECTOR

M-008 Motor, Starter, X-348

1шт.

3

371230-AL02

TERMINAL

M-008 Motor, Starter, X-348

1шт.

4

87688712

WIRE CONNECTOR,Female

F-056 Fuse, Engine Control Module (6 Cyl), X-017

1шт.

4

87689644

FUSE,30A, Blade/Uni

F-056 Fuse, Engine Control Module (6 Cyl), X-017

1шт.

4

87688863

CAP

F-056 Fuse, Engine Control Module (6 Cyl), X-017

1шт.

4

87688851

TERMINAL

F-056 Fuse, Engine Control Module (6 Cyl), X-017

2шт.

5

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

GND-001 Left Rear Frame, X-305

2шт.

6

84398832

TERMINAL,Eyelet, M10, 1.00 - 2.00mm

GND-001 Left Rear Frame, X-296

2шт.

7

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-064 Sensor, Swash Plate Angle, Pump 1, X-080

1шт.

7

87693732

LOCKING TAB,Wedge Lock

Lock, B-064 Sensor, Swash Plate Angle, Pump 1, X-080

1шт.

7

87688852

ELEC. TERMINAL PIN

B-064 Sensor, Swash Plate Angle, Pump 1, X-080

3шт.

7

87689629

SEAL

B-064 Sensor, Swash Plate Angle, Pump 1, X-080

3шт.

8

82012083

WIRE CONNECTOR,Female

Y-070 Solenoid, PTO Tandem Pump Leftside Fluid, X-169

1шт.

8

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-070 Solenoid, PTO Tandem Pump Leftside Fluid, X-169

2шт.

8

82012084

SEAL,1.4mm ID

Y-070 Solenoid, PTO Tandem Pump Leftside Fluid, X-169

2шт.

9

87695580

ELEC CONNECTOR,Female, 3 Pole

Y-049 Solenoid, Propulsion Forward, X-064

1шт.

9

84068583

PLUG,12 - 16 Ga, White

Y-049 Solenoid, Propulsion Forward, X-064

1шт.

9

84074639

LOCKING TAB,Wedge Lock

Y-049 Solenoid, Propulsion Forward, X-064

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-049 Solenoid, Propulsion Forward, X-064

2шт.

10

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-050 Solenoid, Propulsion Reverse, X-065

1шт.

10

84074638

LOCKING TAB,Locking Wedge, Green

Lock, Y-050 Solenoid, Propulsion Reverse, X-065

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-050 Solenoid, Propulsion Reverse, X-065

2шт.

11

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

S-043 Switch, Fuel Door Light, X-196

1шт.

12

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

S-043 Switch, Fuel Door Light, X-345

1шт.

13

82944110

ELEC CONNECTOR,Female, 2 Cavities

J-007 Jack, Service Light, Left, X-255

1шт.

13

87690511

ELEC CONNECTOR

Terminal, J-007 Jack, Service Light, Left, X-255

2шт.

14

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-060 Sensor, Swash Plate Angle Right (Rear), X-079

1шт.

14

87693732

LOCKING TAB,Wedge Lock

Lock, B-060 Sensor, Swash Plate Angle Right (Rear), X-079

1шт.

14

87688852

ELEC. TERMINAL PIN

B-060 Sensor, Swash Plate Angle Right (Rear), X-079

3шт.

14

87689629

SEAL

B-060 Sensor, Swash Plate Angle Right (Rear), X-079

3шт.

15

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-059 Sensor, Swash Plate Angle Left (Front), X-078

1шт.

15

87693732

LOCKING TAB,Wedge Lock

B-059 Sensor, Swash Plate Angle Left (Front), X-078

1шт.

15

87688852

ELEC. TERMINAL PIN

B-059 Sensor, Swash Plate Angle Left (Front), X-078

3шт.

15

87689629

SEAL

B-059 Sensor, Swash Plate Angle Left (Front), X-078

3шт.

16

82012083

WIRE CONNECTOR,Female

Y-071 Solenoid, PTO Tandem Pump Left Side Reverse, X-046

1шт.

16

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-071 Solenoid, PTO Tandem Pump Left Side Reverse, X-046

2шт.

16

82012084

SEAL,1.4mm ID

Y-071 Solenoid, PTO Tandem Pump Left Side Reverse, X-046

2шт.

17

82012083

WIRE CONNECTOR,Female

Y-072 Solenoid, PTO Tandem Pump Right Side Forward, X-153

1шт.

17

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-072 Solenoid, PTO Tandem Pump Right Side Forward, X-153

2шт.

17

82012084

SEAL,1.4mm ID

Y-072 Solenoid, PTO Tandem Pump Right Side Forward, X-153

2шт.

18

82012083

WIRE CONNECTOR,Female

Y-073 Solenoid, PTO Tandem Pump Right Side, Reverse, X-156

1шт.

18

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-073 Solenoid, PTO Tandem Pump Right Side, Reverse, X-156

2шт.

18

82012084

SEAL,1.4mm ID

Y-073 Solenoid, PTO Tandem Pump Right Side, Reverse, X-156

2шт.

19

84364894

BOOT

H-002 Horn, X-145

1шт.

19

87690511

ELEC CONNECTOR

H-002 Horn, X-145

1шт.

20

84364894

BOOT

H-002 Horn, X-144

1шт.

20

87690511

ELEC CONNECTOR

H-002 Horn, X-144

1шт.

21

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-101 Switch, Header Tilt, Apron, X-091

1шт.

21

82035902

PLUG

S-101 Switch, Header Tilt, Apron, X-091

1шт.

21

87694668

ELEC CONNECTOR

S-101 Switch, Header Tilt, Apron, X-091

3шт.

21

87691478

SEAL

S-101 Switch, Header Tilt, Apron, X-091

3шт.

22

87695582

ELEC CONNECTOR,Female, 2 Pole

E-009 Lamp, Base Unit, Flashing, Left, X-326

1шт.

22

84074638

LOCKING TAB,Locking Wedge, Green

Lock, E-009 Lamp, Base Unit, Flashing, Left, X-326

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

E-009 Lamp, Base Unit, Flashing, Left, X-326

2шт.

23

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-065 Sensor, Swash Plate Angle, Pump 2, X-089

1шт.

23

87693732

LOCKING TAB,Wedge Lock

B-065 Sensor, Swash Plate Angle, Pump 2, X-089

1шт.

23

87688852

ELEC. TERMINAL PIN

B-065 Sensor, Swash Plate Angle, Pump 2, X-089

3шт.

23

87689629

SEAL

B-065 Sensor, Swash Plate Angle, Pump 2, X-089

3шт.
