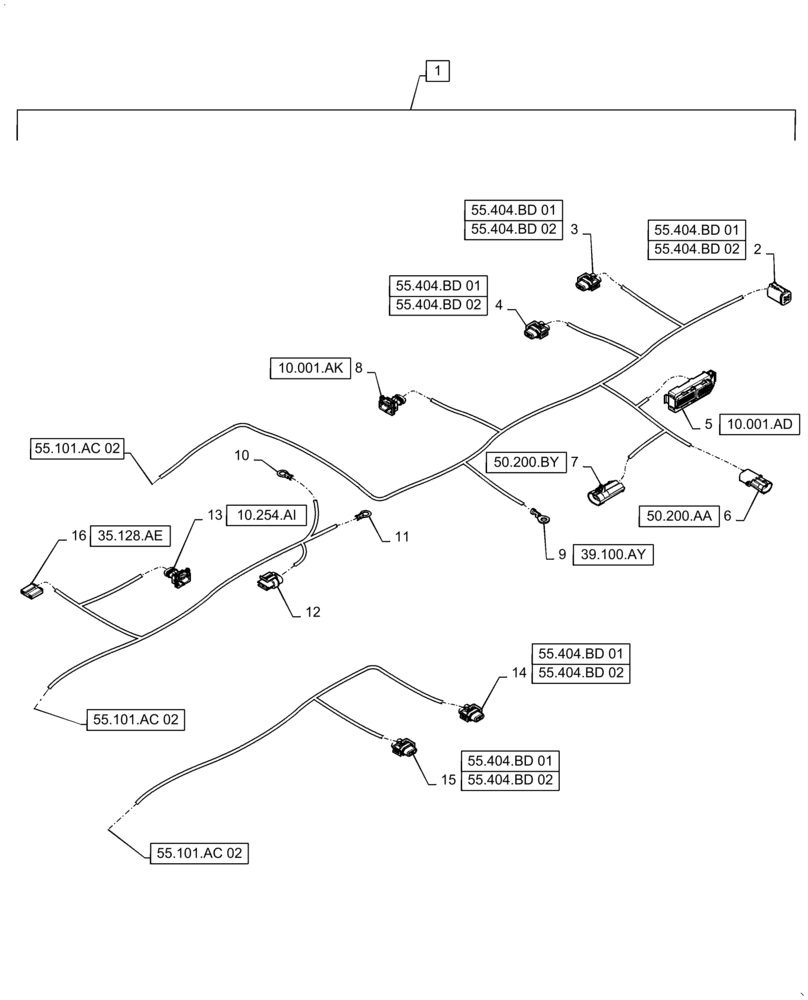

Запчасти Case IH WD2304 (55.101.AC[01]) - WIRE HARNESS & CONNECTOR, DRAPER, FD6 (55) - ELECTRICAL SYSTEMS

1

47474921

WIRE HARNESS

FD6, Incl 2 - 16

1шт.

2

87694112

ELEC CONNECTOR,Female, 6 Pole

FM To TL Pass Thru, X-149

1шт.

2

87694150

LOCKING TAB,Wedge Lock

FM To TL Pass Thru, X-149

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

FM To TL Pass Thru, X-149

4шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM To TL Pass Thru, X-149

2шт.

3

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-025 Lamp, Work, Right Rear, X-222

1шт.

3

87690602

LOCK

E-025 Lamp, Work, Right Rear, X-222

1шт.

3

87680656

CONTACT

E-025 Lamp, Work, Right Rear, X-222

2шт.

3

87680701

SEAL

E-025 Lamp, Work, Right Rear, X-222

2шт.

4

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-023 Lamp, Stubble, Right, X-221A

1шт.

4

87690602

LOCK

E-023 Lamp, Stubble, Right, X-221A

1шт.

4

87680656

CONTACT

E-023 Lamp, Stubble, Right, X-221A

2шт.

4

87680701

SEAL

E-023 Lamp, Stubble, Right, X-221A

2шт.

5

84160698

ELEC CONNECTOR

A-003 Module, 6 Cyl Engine Control, X-034

1шт.

5

84160698

ELEC CONNECTOR

Cover, A-003 Module, 6 Cyl Engine Control, X-034

1шт.

5

84280969

Cap, A-003 Module, 6 Cyl Engine Control, X-034

1шт.

5

84607242

SEAL

A-003 Module, 6 Cyl Engine Control, X-034

1шт.

5

87691478

SEAL

A-003 Module, 6 Cyl Engine Control, X-034

1шт.

5

84130602

TERMINAL CONNECTOR

A-003 Module, 6 Cyl Engine Control, X-034

8шт.

5

84183922

TERMINAL

A-003 Module, 6 Cyl Engine Control, X-034

6шт.

5

87636264

ELEC CONNECTOR

Seal, A-003 Module, 6 Cyl Engine Control, X-034

72шт.

6

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Y-027 Solenoid, A/C Clutch, X-027

1шт.

6

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Y-027 Solenoid, A/C Clutch, X-027

2шт.

6

87680701

SEAL

Y-027 Solenoid, A/C Clutch, X-027

2шт.

7

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

S-040 Switch, Pressure, ATC High, X-014

1шт.

7

87688862

LOCKING TAB

S-040 Switch, Pressure, ATC High, X-014

1шт.

7

87688814

TERMINAL

S-040 Switch, Pressure, ATC High, X-014

2шт.

7

87688858

SEAL

S-040 Switch, Pressure, ATC High, X-014

2шт.

8

84806091

WIRE CONNECTOR,Female, 3 Pin

S-088 Switch, H2O In Fuel, X-548

1шт.

8

47625618

LOCKING TAB,Wedge Lock

Back Shell, S-088 Switch, H2O In Fuel, X-548

1шт.

8

84607244

ELEC. TERMINAL PIN,Female, 0.5 - 1 mm2

S-088 Switch, H2O In Fuel, X-548

3шт.

8

84607242

SEAL

S-088 Switch, H2O In Fuel, X-548

2шт.

8

87691478

SEAL

S-088 Switch, H2O In Fuel, X-548

1шт.

9

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

GND-008 Right Rear Frame, X011

2шт.

10

84159854

TERMINAL,M8

G-001 Alternator, X-148

1шт.

11

84159852

TERMINAL,#10 Ring, SAE 18 - 20

G-001 Alternator, X-212

1шт.

12

87688712

WIRE CONNECTOR,Female

F-057 Fuse, Alternator "W" Line, X-020

1шт.

12

87688863

CAP

F-057 Fuse, Alternator "W" Line, X-020

1шт.

12

83933689

FUSE,10A, Red

F-057 Fuse, Alternator "W" Line, X-020

1шт.

12

87688848

TERMINAL

F-057 Fuse, Alternator "W" Line, X-020

2шт.

13

84607243

ELEC CONNECTOR,Female, 2 Cavities

S-009 Switch, Air Filter, X-061

1шт.

13

87702681

TERMINAL

S-009 Switch, Air Filter, X-061

2шт.

13

87691478

SEAL

S-009 Switch, Air Filter, X-061

2шт.

14

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-024 Lamp, Work, Left Rear, X-225

1шт.

14

87690602

LOCK

E-024 Lamp, Work, Left Rear, X-225

1шт.

14

87680656

CONTACT

E-024 Lamp, Work, Left Rear, X-225

2шт.

14

87680701

SEAL

E-024 Lamp, Work, Left Rear, X-225

2шт.

15

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-022 Lamp, Stubble, Light, X-283

1шт.

15

87690602

LOCK

E-022 Lamp, Stubble, Light, X-283

1шт.

15

87680701

SEAL

E-022 Lamp, Stubble, Light, X-283

2шт.

15

87680656

CONTACT

E-022 Lamp, Stubble, Light, X-283

2шт.

16

87709211

ELEC CONNECTOR

S-010 Switch, Hydraulic Charge Pressure, X-139

1шт.

16

87709400

ELEC. TERMINAL PIN

S-010 Switch, Hydraulic Charge Pressure, X-139

2шт.
