Запчасти Case IH WD2304 (55.100.DP[05]) - WIRE HARNESS & CONNECTOR, DRAPER, CD6 (CONT.) (55) - ELECTRICAL SYSTEMS

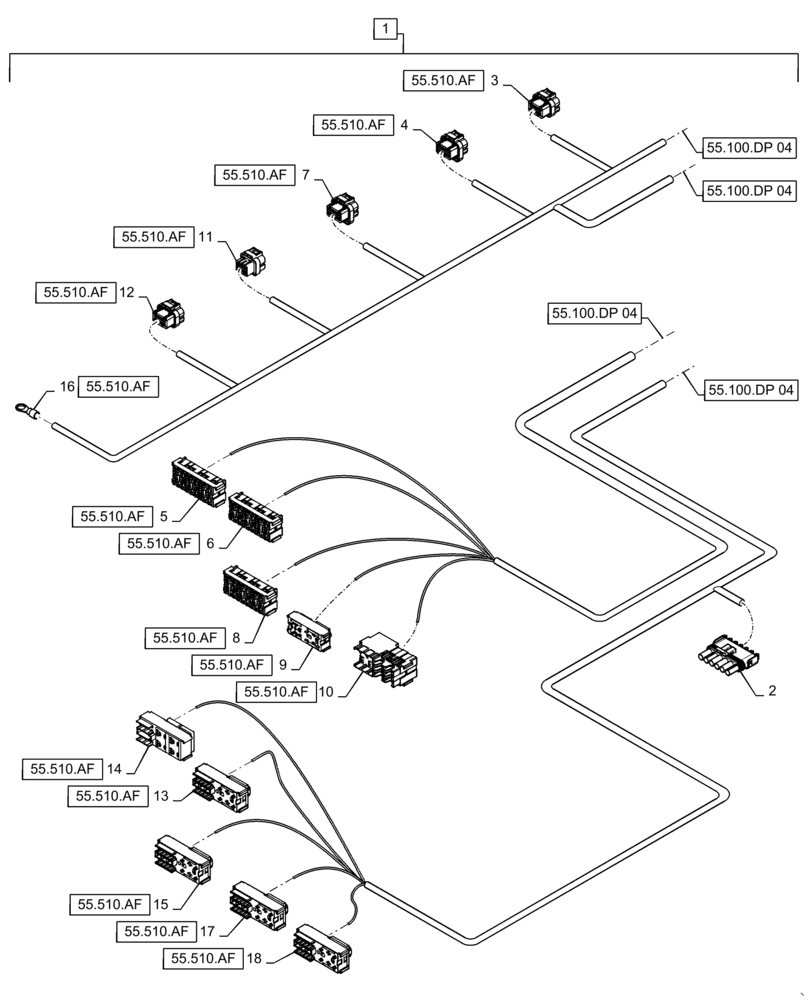

Схема запчастей Case IH WD2304 - (55.100.DP[05]) - WIRE HARNESS & CONNECTOR, DRAPER, CD6 (CONT.) (55) - ELECTRICAL SYSTEMS
16
55.510.af
10
55.510.af
8
55.510.af
55.100.dp 04
12
55.100.dp 04
55.510.af
55.510.af
55.510.af
55.510.af
55.510.af
6
55.510.af
3
5
14
55.510.af
4
11
13
55.510.af
55.100.dp 04
2
55.510.af
15
18
55.100.dp 04
55.510.af
55.510.af
17
55.510.af
7
1
9
55.510.af

Артикул

Название

Примечание

Количество

1

47616415

WIRE HARNESS

CD6, Incl 2 - 18 (Continued)

1шт.

2

87039236

ELEC CONNECTOR

D-009 Diode Module, X-502

1шт.

2

87022597

MODULE

D-009 Diode Module, X-502

1шт.

2

87686742

PLUG

D-009 Diode Module, X-502

1шт.

2

87692856

CABLE TERMINAL

D-009 Diode Module, X-502

5шт.

2

87680701

SEAL

D-009 Diode Module, X-502

5шт.

3

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

A-001 Module, UCM, X-004

1шт.

3

82017048

CABLE TERMINAL

A-001 Module, UCM, X-004

22шт.

4

84130757

ELEC CONNECTOR,Female, 26 Cavities

A-001 Module, UCM, X-005

1шт.

4

82017048

CABLE TERMINAL

A-001 Module, UCM, X-005

20шт.

5

84526304

MODULE

Z-009, X-372

1шт.

5

84529032

TERMINAL

Z-009, X-372

6шт.

5

84491250

TERMINAL

Z-009, X-372

4шт.

6

84526304

MODULE

Z-008, X-366

1шт.

6

84491250

TERMINAL

Z-008, X-366

10шт.

6

84529032

TERMINAL

Z-008, X-366

13шт.

6

84491251

TERMINAL

Z-008, X-366

2шт.

7

84130760

ELEC CONNECTOR,Female, 34 Cavities

A-001 UCM, X-006

1шт.

7

82017048

CABLE TERMINAL

A-001 UCM, X-006

23шт.

8

84526304

MODULE

Z-007, X-365

1шт.

8

84529032

TERMINAL

Z-007, X-365

12шт.

8

84491251

TERMINAL

Z-007, X-365

6шт.

8

84491250

TERMINAL

Z-007, X-365

4шт.

8

84153388

TERMINAL

Terminal, Z-007, X-365

2шт.

9

87733587

ELEC CONNECTOR

Z-001, X-360

1шт.

9

84219725

TERMINAL

Terminal, Z-001, X-360

1шт.

9

84207859

TERMINAL

Z-001, X-360

1шт.

9

84153403

TERMINAL

Terminal, Z-001, X-360

4шт.

9

84164961

TERMINAL

Z-001, X-360

2шт.

10

87733597

FUSE BOX

Connector, Z-010, X-165

1шт.

10

84207857

LOCK

Z-010, X-165

1шт.

10

87716256

Terminal, Z-010, X-165

4шт.

11

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

A-001 UCM, X-007

1шт.

11

82017048

CABLE TERMINAL

A-001 UCM, X-007

8шт.

12

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

A-001 UCM, X-008

1шт.

12

82017048

CABLE TERMINAL

A-001 UCM, X-008

24шт.

13

87733595

FUSE HOLDER

Connector, Z-005, X-364

1шт.

13

84127679

TERMINAL

Z-005, X-364

1шт.

13

84164963

TERMINAL

Terminal, Z-005, X-364

2шт.

13

84164962

TERMINAL

Z-005, X-364

2шт.

13

84123442

TERMINAL

Z-005, X-364

6шт.

13

84123443

TERMINAL

Z-005, X-364

7шт.

14

87733596

FUSE BOX

Connector, Z-006, X-356

1шт.

14

84123442

TERMINAL

Z-006, X-356

3шт.

14

84164963

TERMINAL

Terminal, Z-006, X-356

8шт.

14

84153403

TERMINAL

Terminal, Z-006, X-356

10шт.

14

84123443

TERMINAL

Z-006, X-356

3шт.

14

84127679

TERMINAL

Z-006, X-356

1шт.

15

87733595

FUSE HOLDER

Connector, Z-004, X-363

1шт.

15

84123442

TERMINAL

Z-004, X-363

8шт.

15

84164963

TERMINAL

Terminal, Z-004, X-363

2шт.

15

84164962

TERMINAL

Z-004, X-363

2шт.

15

84123443

TERMINAL

Z-004, X-363

6шт.

15

84127679

TERMINAL

Z-004, X-363

2шт.

16

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Terminal, GND-002 UCM Ground, X-333

1шт.

17

87733595

FUSE HOLDER

Connector, Z-003, X-362

1шт.

17

84127679

TERMINAL

Z-003, X-362

3шт.

17

84123442

TERMINAL

Z-003, X-362

5шт.

17

84123443

TERMINAL

Z-003, X-362

5шт.

17

84164962

TERMINAL

Z-003, X-362

2шт.

17

84164963

TERMINAL

Terminal, Z-003, X-362

2шт.

18

87733595

FUSE HOLDER

Connector, Z-002, X-361

1шт.

18

84127679

TERMINAL

Z-002, X-361

1шт.

18

84164963

TERMINAL

Terminal, Z-002, X-361

2шт.

18

84123443

TERMINAL

Z-002, X-361

3шт.

18

84123442

TERMINAL

Z-002, X-361

6шт.

18

84164962

TERMINAL

Z-002, X-361

2шт.

Выбрано товаров: 67
