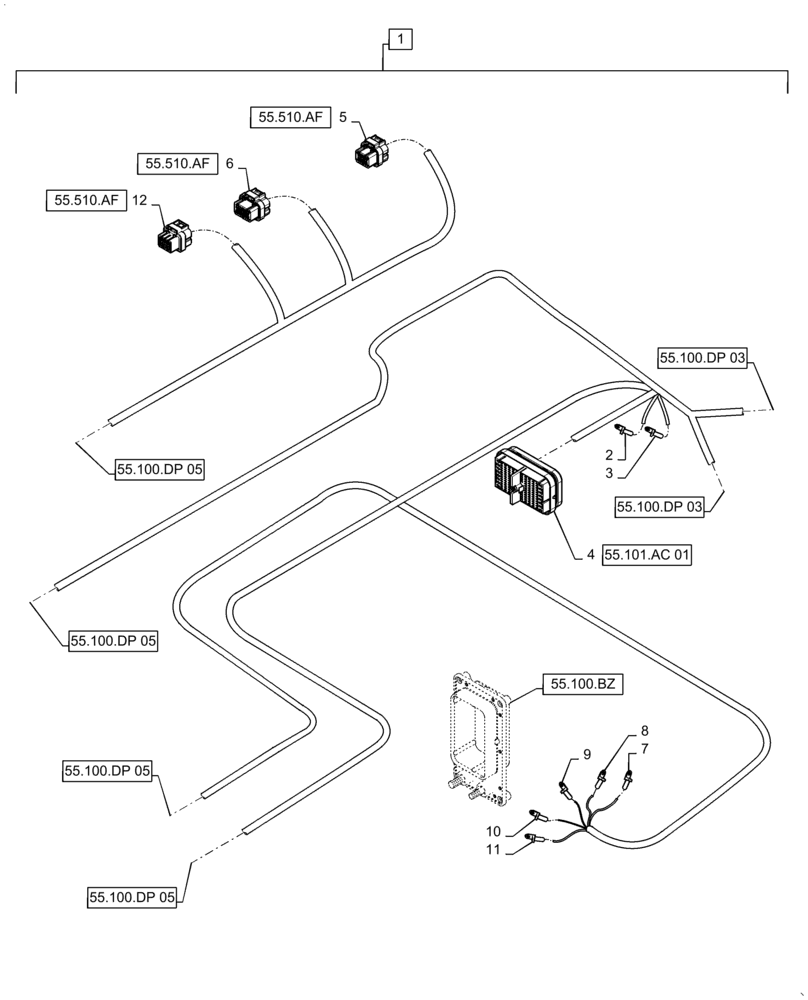

Запчасти Case IH WD2304 (55.100.DP[04]) - WIRE HARNESS & CONNECTOR, DRAPER, CD6 (CONT.) (55) - ELECTRICAL SYSTEMS

1

47616415

WIRE HARNESS

CD6, Incl 2 - 12 (Continued)

1шт.

2

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Terminal, GND-05 Left Cab (Under Instructors Seat), X-278

1шт.

3

84399575

TERMINAL,5/16" Ring, SAE 8

Terminal, GND 05 Left Cab (Under Instructors Seat), X-332

1шт.

4

8447026

Connector, FM To CM Pass Thru, X-044

1шт.

4

84477105

LOCKING TAB,Wedge Lock

Lock, FM To CM Pass Thru, X-044

2шт.

4

8447095

Flange, FM To CM Pass Thru, X-044

1шт.

4

87695623

ELEC. TERMINAL PIN

FM To CM Pass Thru, X-044

90шт.

4

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

FM To CM Pass Thru, X-044

9шт.

4

87704524

ELEC CONNECTOR,Pin, Size 12

Terminal, FM To CM Pass Thru, X-044

3шт.

5

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

A-001 UCM, X-001

1шт.

5

82017048

CABLE TERMINAL

A-001 UCM, X-001

20шт.

6

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

A-001 UCM, X-002

1шт.

6

82017048

CABLE TERMINAL

A-001 UCM, X-002

24шт.

7

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Terminal, FM To CM Battery Pass Thru, X-051

1шт.

8

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Terminal, FM To CM Battery Pass Thru, X-050

1шт.

9

84477095

FLANGE

Flange, FM To CM Battery Pass Thru, X-049

1шт.

9

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Terminal, FM To CM Battery Pass Thru, X-049

1шт.

10

84477095

FLANGE

Flange, FM To CM Battery Pass Thru, X-054

1шт.

10

84401295

TERMINAL

FM To CM Battery Pass Thru, X-054

1шт.

11

84401295

TERMINAL

FM To CM Battery Pass Thru, X-055

1шт.

12

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

A-001 UCM, X-003

1шт.

12

82017048

CABLE TERMINAL

A-001 UCM, X-003

20шт.
