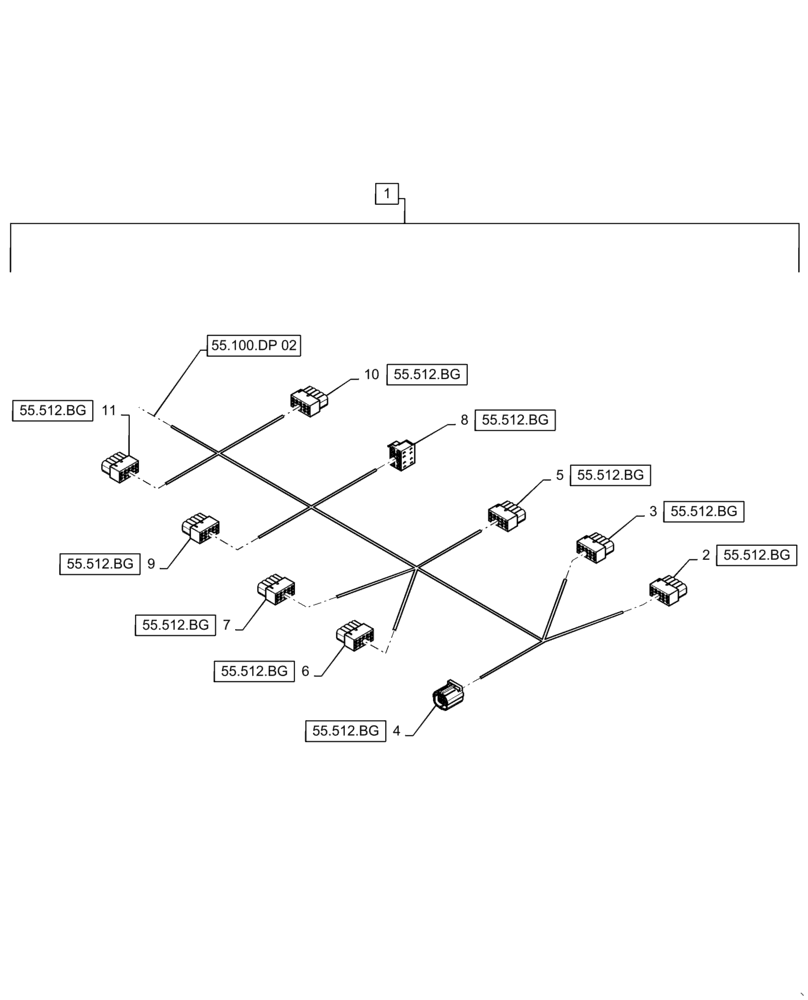

Запчасти Case IH WD2304 (55.100.DP[01]) - WIRE HARNESS & CONNECTOR, DRAPER, CD6 (55) - ELECTRICAL SYSTEMS

1

47616415

WIRE HARNESS

CD6, Incl 2 - 11

1шт.

2

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-052 Header PTO Switch (Forward/Reverse), X-108

1шт.

2

87691478

SEAL

S-052 Header PTO Switch (Forward/Reverse), X-108

2шт.

2

87694668

ELEC CONNECTOR

Terminal, S-052 Header PTO Switch (Forward/Reverse), X-108

2шт.

3

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-028 Park Brake Switch, X-076

1шт.

3

87691478

SEAL

S-028 Park Brake Switch, X-076

5шт.

3

87694668

ELEC CONNECTOR

Terminal, S-028 Park Brake Switch, X-076

5шт.

4

82002274

MULTIPOLE CONNECTOR,Female, 6 Pole

S-017 Switch, PTO Engage, X-107

1шт.

4

82002277

LOCKING PLATE,Wedge Lock, 6 Way

S-017 Switch, PTO Engage, X-107

1шт.

4

87680685

CABLE TERMINAL

S-017 Switch, PTO Engage, X-107

4шт.

4

82863648

SEAL

S-017 Switch, PTO Engage, X-107

4шт.

5

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-102 Switch, Autoguidance Enable, X-403

1шт.

5

87694668

ELEC CONNECTOR

Terminal, S-102 Switch, Autoguidance Enable, X-403

2шт.

5

87691478

SEAL

S-102 Switch, Autoguidance Enable, X-403

2шт.

6

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-013 Header Speed Switch (Increase/Decrease), X-110

1шт.

6

87694668

ELEC CONNECTOR

Terminal, S-013 Header Speed Switch (Increase/Decrease), X-110

3шт.

6

87691478

SEAL

S-013 Header Speed Switch (Increase/Decrease), X-110

3шт.

7

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-027 Switch, Reel Mode, X-082

1шт.

7

87694668

ELEC CONNECTOR

Terminal, S-027 Switch, Reel Mode, X-082

3шт.

7

87691478

SEAL

S-027 Switch, Reel Mode, X-082

3шт.

8

84526561

Connector, S-031 Switch, Merger On/Off, X-069

1шт.

8

87697756

TERMINAL

S-031 Switch, Merger On/Off, X-069

2шт.

9

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-100 High Speed Ground Switch, X-081

1шт.

9

87694668

ELEC CONNECTOR

Terminal, S-100 High Speed Ground Switch, X-081

4шт.

9

87691478

SEAL

S-100 High Speed Ground Switch, X-081

4шт.

10

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-054 Switch, Windrow Shields, X-134

1шт.

10

87694668

ELEC CONNECTOR

Terminal, S-054 Switch, Windrow Shields, X-134

3шт.

10

87691478

SEAL

S-054 Switch, Windrow Shields, X-134

3шт.

11

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-050 Switch, Draper Canvas Speed (Increase/Decrease), X-121

1шт.

11

87694668

ELEC CONNECTOR

Terminal, S-050 Switch, Draper Canvas Speed (Increase/Decrease), X-121

3шт.

11

87691478

SEAL

S-050 Switch, Draper Canvas Speed (Increase/Decrease), X-121

3шт.
