(55.100.BZ) - REAR FRAME ELECTRIC SYSTEM CONTROL

Запчасти Case IH WD2304 (55.100.BZ) - REAR FRAME ELECTRIC SYSTEM CONTROL (55) - ELECTRICAL SYSTEMS

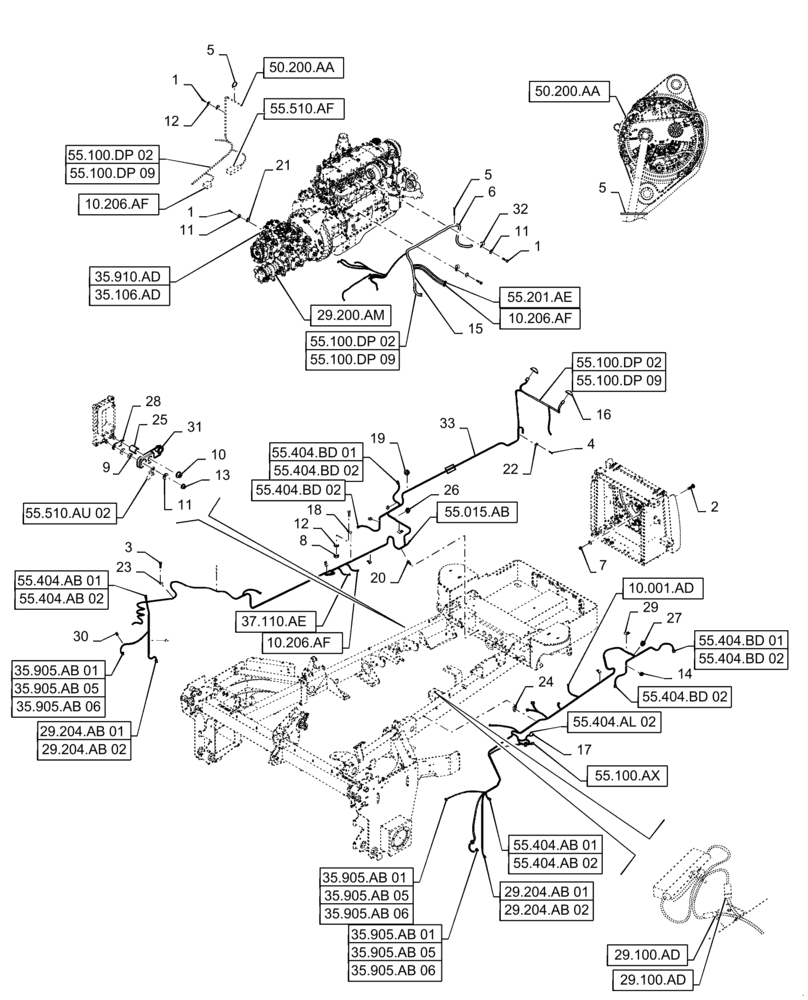

Схема запчастей Case IH WD2304 - (55.100.BZ) - REAR FRAME ELECTRIC SYSTEM CONTROL (55) - ELECTRICAL SYSTEMS
24
12
8
55.100.dp 02
12
22
29.204.ab 02
29.204.ab 01
55.510.af
2
3
1
1
18
27
35.905.ab 05
35.905.ab 01
10
55.404.bd 01
14
35.910.ad
35.905.ab 06
5
29.100.ad
15
35.905.ab 06
23
55.404.ab 02
5
20
10.001.ad
55.404.bd 02
35.905.ab 01
35.905.ab 05
55.404.al 02
55.201.ae
55.404.ab 01
55.100.ax
55.100.dp 02
55.015.ab
50.200.aa
50.200.aa
33
29.204.ab 02
29.204.ab 01
28
55.100.dp 02
29
55.404.ab 01
55.100.dp 09
30
10.206.af
35.905.ab 01
35.905.ab 05
31
32
10.206.af
55.404.bd 01
13
55.404.bd 02
55.404.bd 02
35.106.ad
25
37.110.ae
55.404.ab 02
17
11
55.510.au 02
55.100.dp 09
19
55.100.dp 09
1
5
29.100.ad
7
6
21
9
4
26
29.204.ab 01
35.905.ab 06
10.206.af
55.404.bd 02
11
11
29.200.am
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

9шт.

2

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

4шт.

3

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

4

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

86566989

CABLE TIE,208mm L

40шт.

6

84515765

WIRE HARNESS

Battery Cable

1шт.

7

86521605

FLANGE NUT,5/16"-18, Cl 5

17шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

9

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

10

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

27шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

13

9706690

NUT,M8 x 1.25, Cl 8

1шт.

14

87742343

GROMMET,.688" x 1"

4шт.

15

84391159

WIRE CONNECTOR

Wire Connector

2шт.

16

87627854

LIGHT ASSY.,12V, 27W, Red

Rear Stop - Tail

2шт.

17

86562581

SWITCH

Rocker

1шт.

18

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

P Style

2шт.

19

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

Wire Protection

1шт.

20

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

21

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

5шт.

22

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

23

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

12шт.

24

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

Closed

3шт.

25

87342153

SPACER,10.34mm ID x 15.88mm OD x 6.3mm L

Terminal

1шт.

26

237915

GROMMET

#109

2шт.

27

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

28

84476466

PLATE

Bus

1шт.

29

9848767

CLAMP,17.5mm, Coat, 13.5mm Bolt Hole, P Type

Closed

2шт.

30

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

31

84558376

COVER

Terminal, Red

1шт.

32

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

33

47408002

WIRE HARNESS

Tail Light

1шт.
