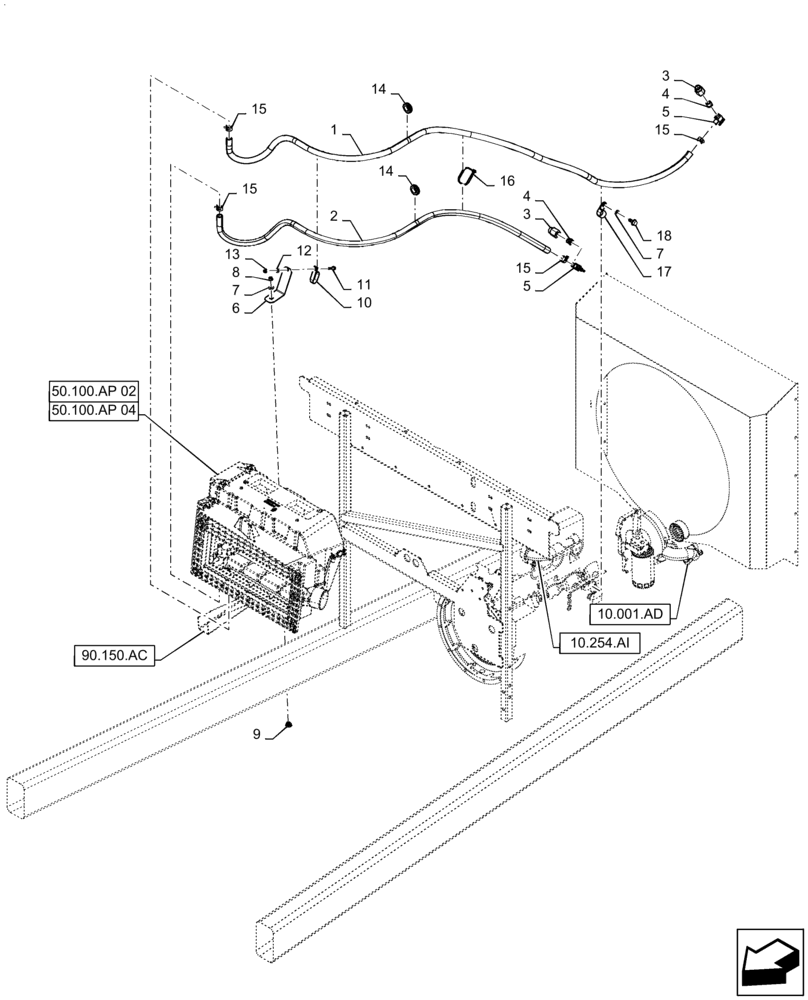

Запчасти Case IH WD2304 (50.100.AC) - HEATING SYSTEM, LINES (50) - CAB CLIMATE CONTROL

1

87567191

HEATER HOSE,5/8” Bulk Roll 500 FT, Supply

Engine to Heater Valve

1шт.

2

87567192

HEATER HOSE,5/8” Bulk Roll 500 FT, Return

Coolant Supply Line

1шт.

3

87687370

HYD CONNECTOR,½”-14 NPTF ID x M18 x 1.5 Thd. OD x 1.67” Long

NTPF

2шт.

4

87572

BUSHING

1/2" x 3/8"

2шт.

5

83961305

VALVE

Heater

2шт.

6

87367603

ANGLE

Hose Mounting

1шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

9

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

10

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

Hose

1шт.

11

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

13

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

14

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

Hose Protection

2шт.

15

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

Heater

4шт.

16

249730

SECURING STRAP,8" L

Cable Tie

1шт.

17

86000810

CLAMP,27mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

18

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

1шт.
