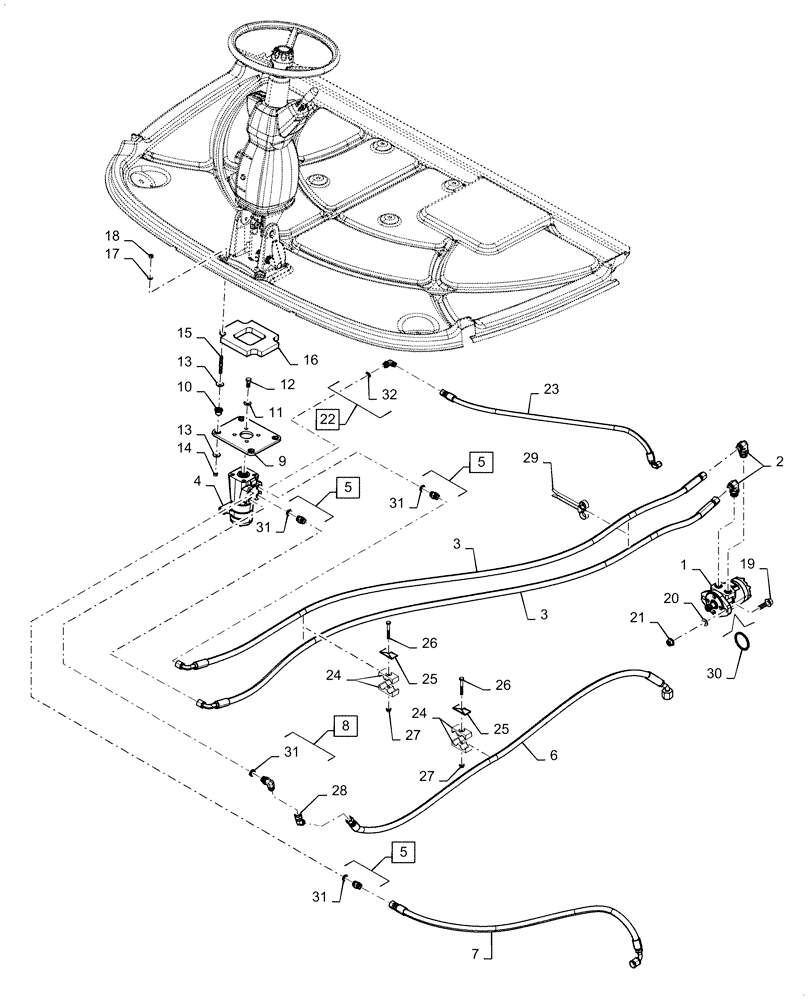

Запчасти Case IH WD2304 (41.200.AE[04]) - STEERING ASSY, HYDRAULIC, 6 CYLINDER HI SPEED (41) - STEERING

1

47515828

HYDRAULIC MOTOR

Incl 30

1шт.

2

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

2шт.

3

47579059

HYDRAULIC HOSE

Steering Valve

2шт.

4

47515830

STEERING VALVE

Dual Speed

1шт.

5

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 31

3шт.

6

47722959

HOSE

Steering Valve, Charge

1шт.

7

47434823

HYDRAULIC HOSE

Steering Valve, Tank

1шт.

8

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 31

1шт.

9

84075217

PLATE

Identity

1шт.

10

601062

ISOLATOR

Mounting

4шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

12

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

13

86012639

WASHER,10.3mm ID x 31.8mm OD x 3.2mm Thk

8шт.

14

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

15

84432508

STUD,M8 x 71

4шт.

16

86974950

GASKET

1шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

18

9706690

NUT,M8 x 1.25, Cl 8

4шт.

19

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

20

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

2шт.

21

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

22

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 32

1шт.

23

47434825

HYDRAULIC HOSE

Steering Valve, Displacement Shift

1шт.

24

1589857

CLAMP

2шт.

25

87000230

PLATE

2шт.

26

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

27

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

28

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

29

84386243

CLAMP,489mm L

1шт.

30

47725943

SEAL KIT

1шт.

31

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

32

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
