Запчасти Case IH WD2304 (35.220.AA[01]) - AUXILIARY HYDRAULIC DRIVE, 6 CYLINDER (35) - HYDRAULIC SYSTEMS

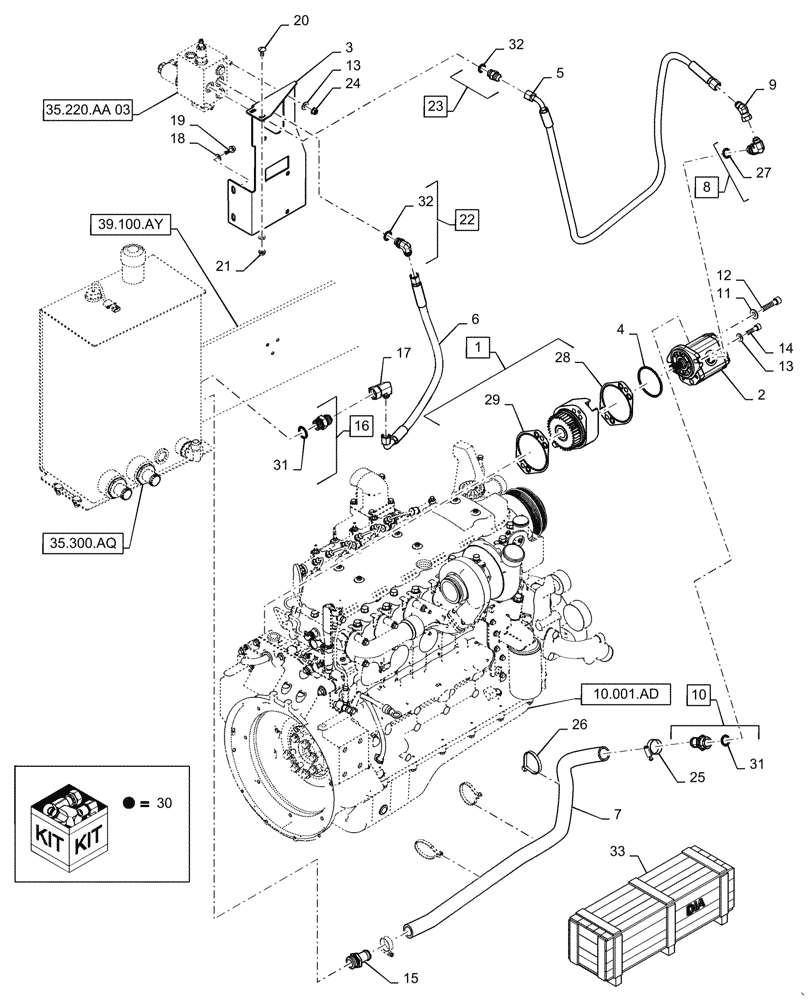

Схема запчастей Case IH WD2304 - (35.220.AA[01]) - AUXILIARY HYDRAULIC DRIVE, 6 CYLINDER (35) - HYDRAULIC SYSTEMS
10.001.ad
35.300.aq
14
19
23
29
3
13
33
5
10
1
31
6
2
28
22
21
18
30
7
9
24
17
27
32
26
12
13
32
16
25
20
11
15
30
31
8
4
39.100.ay
35.220.aa 03

Артикул

Название

Примечание

Количество

1

84272202

PTO

Auxiliary Drive, Incl 28 - 29

1шт.

2

87050689

HYDRAULIC PUMP,22.8 CC

Gear

1шт.

3

47545029

BRACKET

Header Reverse Manifold Mount

1шт.

4

272310

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

5

47643452

HOSE

Manifold "P" Port to Pump

1шт.

6

47632502

HOSE

Manifold "T" Port to Reservior

1шт.

7

87032237

HOSE,1.00" ID x 44.00", SAE 100R4

Return

1шт.

8

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 27

1шт.

9

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

10

87027931

NIPPLE

Stem, Incl 31

1шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

12

86511099

HEX SOC SCREW,M12 x 50mm, Cl 12.9, Full Thd

2шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

14

86566100

HEX SOC SCREW,M10 x 35mm, Cl 12.9, Full Thd

2шт.

15

47503592

FITTING

Hose

1шт.

16

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 31

1шт.

17

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

19

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

20

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

2шт.

21

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

22

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 32

1шт.

23

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 32

1шт.

24

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

25

86536660

HOSE CLAMP,25mm - 44mm

2шт.

26

529070

CABLE TIE,368.3mm L

3шт.

27

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl with 8

1шт.

28

16588324

SCREW,M12 x 45mm

Gasket, Incl with 2

2шт.

29

4896897

GASKET,1.35mm Thk

Incl with 2

1шт.

30

87340205

SEAL KIT

For Pump

1шт.

31

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl 10

2шт.

32

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl with 22, 23

2шт.

33

47795700

KIT

DIA, 6 Cyl Auxilary Hydraulic; Instruction 47795736

1шт.

Выбрано товаров: 33
