Запчасти Case IH WD2304 (35.105.AD) - FILTER ASSY, HYDRAULIC OIL (35) - HYDRAULIC SYSTEMS

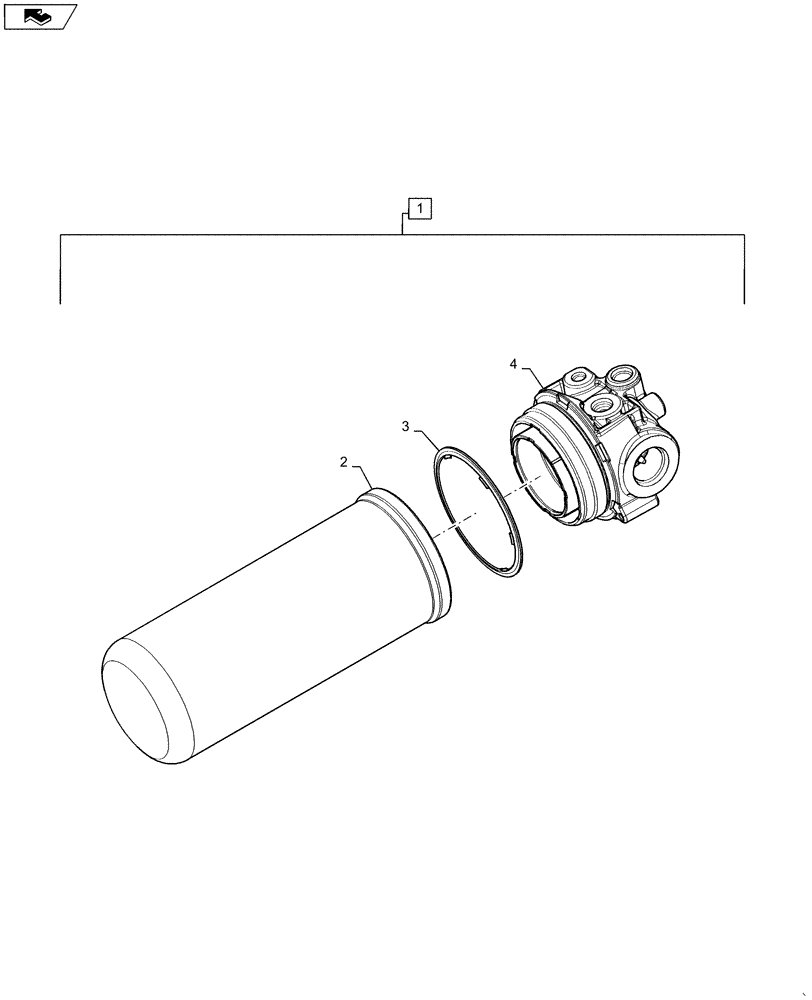

Схема запчастей Case IH WD2304 - (35.105.AD) - FILTER ASSY, HYDRAULIC OIL (35) - HYDRAULIC SYSTEMS
1
4
2
3

Артикул

Название

Примечание

Количество

1

84487527

FILTER ASSY

Hydraulic Charge Circuit, Incl 2 - 4

1шт.

2

47833564

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L, M87 x 2.5-6H, <4 Microns

Spin On

1шт.

3

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

Friction

1шт.

4

NSS

NOT SOLD SEPARAT

Filter Head, Incl In 1

1шт.

Выбрано товаров: 4
