Запчасти Case IH WD2104 (10.419.AD[02]) - REAR AIR CLEANER (10) - ENGINE

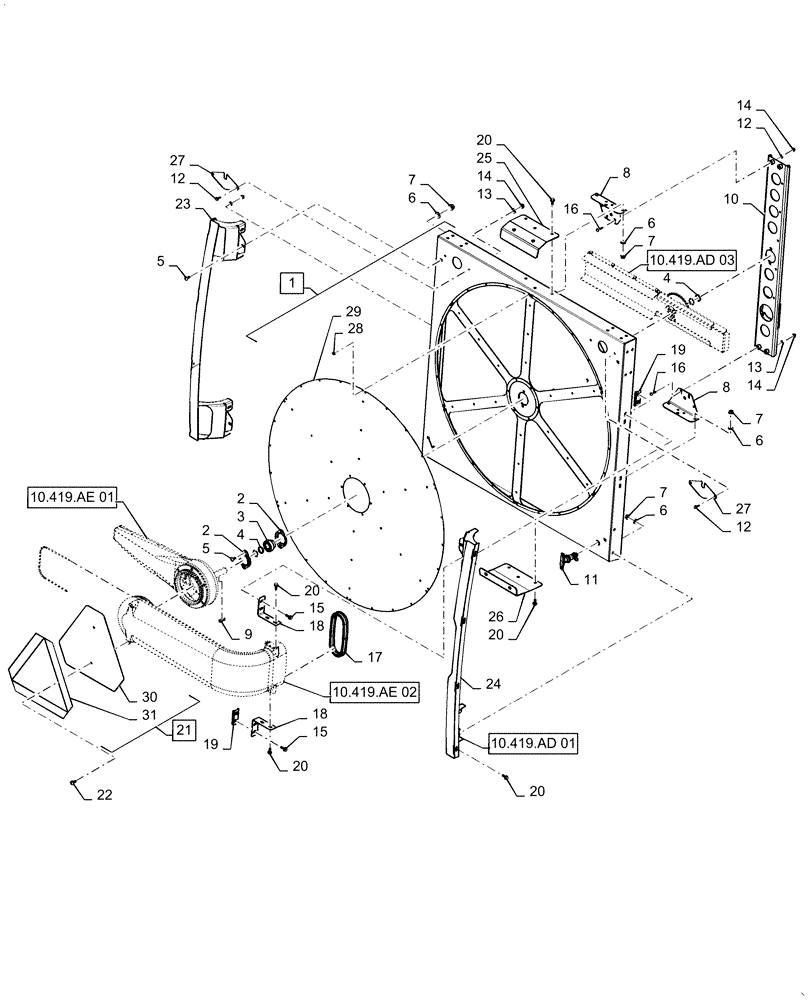

Схема запчастей Case IH WD2104 - (10.419.AD[02]) - REAR AIR CLEANER (10) - ENGINE
6
10.419.ad 03
8
11
18
12
16
22
30
12
5
2
13
2
31
10.419.ae 01
20
15
10.419.ae 02
6
17
4
14
19
15
7
26
20
27
28
6
20
14
9
10.419.ad 01
24
3
25
16
4
6
13
7
18
29
5
14
1
20
12
23
8
19
10
7
7
21
27
20

Артикул

Название

Примечание

Количество

1

47624932

DOOR

Fixed Air Screen, Incl 28 - 29

1шт.

2

86548974

FLANGE,Bearing

Drive

2шт.

3

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

Drive

1шт.

4

47513513

SPACER

Nozzle

4шт.

5

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

6шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

16шт.

8

47408996

ANGLE

Vertical Support Mount

2шт.

9

170030

KEY,8mm x 7mm x 32mm

1шт.

10

47544472

SUPPORT

Vertical

1шт.

11

87283386

LATCH

1/4 Turn Compression

2шт.

12

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

7шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

11шт.

14

86050300

FLANGE NUT,M6 x 1.0, Cl 10

8шт.

15

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

16

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

4шт.

17

47490204

SEAL

Door

1шт.

18

47624533

BRACKET

Duct

2шт.

19

47656939

NUT

Sheet Metal

2шт.

20

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

14шт.

21

47639947

DECAL

SMV Emblem, Incl 30 - 31

1шт.

22

86511828

SCREW,Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8

2шт.

23

47621503

SUPPORT

Left Rail

1шт.

24

47621512

SUPPORT

Right Rail

1шт.

25

47692737

SUPPORT

Upper Screen

1шт.

26

47692830

SUPPORT

Lower Screen

1шт.

27

47623681

PLATE

Light

2шт.

28

47423164

SCREEN

Incl with 1

1шт.

29

87644487

RIVET,Pop, 4.76mm OD x 10.92mm L

Incl with 1

54шт.

30

47639951

PLATE

Sign, Incl with 21

1шт.

31

86547711

DECAL,SMV

SMV, Incl with 21

1шт.

Выбрано товаров: 31
