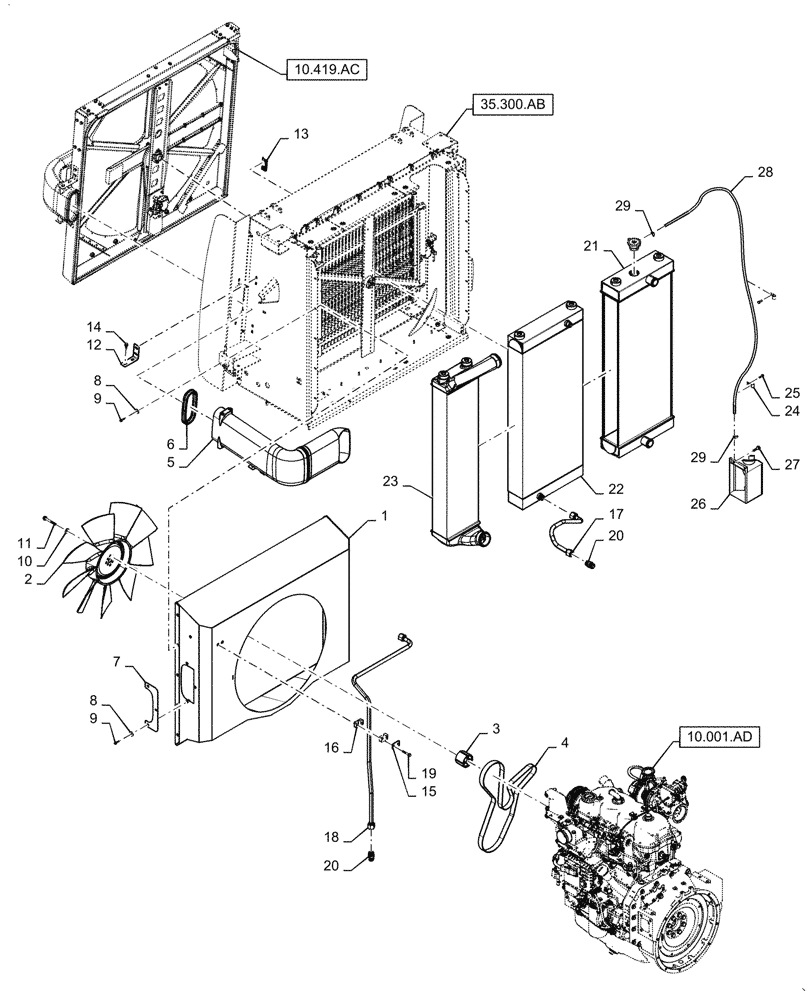

Запчасти Case IH WD2104 (10.400.BE) - RADIATOR & RELATED PARTS (10) - ENGINE

1

47618195

SHROUD

Fan

1шт.

2

47526216

FAN

30"

1шт.

3

87749294

SPACER

Fan

1шт.

4

47655419

V-BELT

Drive

1шт.

5

47615792

DUCT

Fan shroud

1шт.

6

47490204

SEAL

Air Duct

1шт.

7

47505232

SHROUD

Duct Filler

1шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

13шт.

9

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

13шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

11

87681213

BOLT,Hex, M10 x 140mm, Cl 10.9

4шт.

12

47618578

BRACKET

Duct Support

2шт.

13

47656939

NUT

Sheet Metal

2шт.

14

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

15

86900727

COVER

Plate

2шт.

16

86900723

CLAMP

Hydraulic Tube

1шт.

17

47719945

TUBE

Hydraulic Oil Cooler Supply

1шт.

18

47719946

TUBE

Hydraulic Oil Cooler Supply

1шт.

19

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

20

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

2шт.

21

47524116

RADIATOR

6 Cylinder

1шт.

21a

48052216

CAP

Radiator

1шт.

22

47524117

OIL COOLER

Hydraulic

1шт.

23

47524119

OIL COOLER

Charge Air

1шт.

24

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

25

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

3шт.

26

86509554

TANK

Coolant Overflow

1шт.

27

87698760

FLANGE BOLT,M6 x 36.6mm, Cl 10.9

2шт.

28

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Overflow

1шт.

29

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

30

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.
