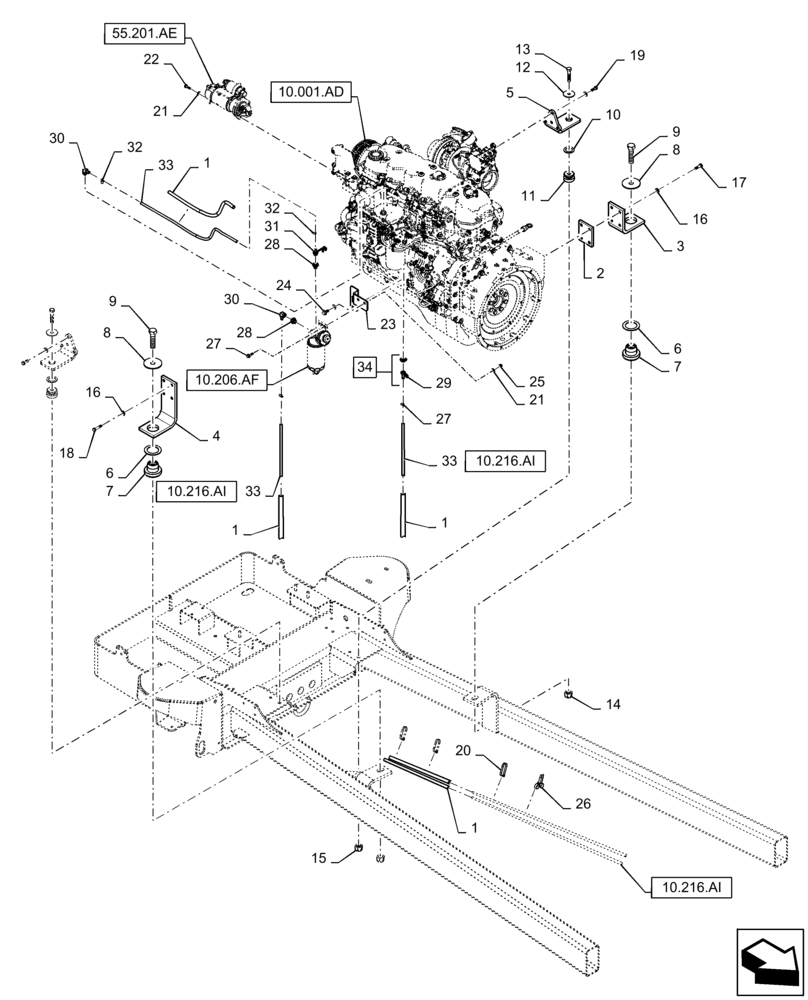

Запчасти Case IH WD2104 (10.001.AK) - ENGINE MOUNT, 6 CYLINDER (10) - ENGINE

1

87580075

CONDUIT

Hose Protection

1шт.

2

87353377

SUPPORT

Engine Mount, Front

1шт.

3

87350563

MOUNTING PLATE

Engine, Front, Left

1шт.

4

87350560

MOUNTING PLATE

Engine, Front, Right

1шт.

5

87350556

MOUNTING PLATE

Engine, Rear

2шт.

6

9823910

WASHER

Front Isolator

2шт.

7

86550699

INSULATOR

Engine Mount

2шт.

8

86545287

WASHER,25.9mm ID x 101.6mm OD x 4.8mm thick

Front Mount

2шт.

9

280285

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

10

87350623

WASHER

Rear Isolator

2шт.

11

86550698

INSULATOR

Engine Mount

2шт.

12

86545286

WASHER

Rear Mount

2шт.

13

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

14

280286

NUT,1"-8, GB

2шт.

15

19670

NUT,5/8"-11, GB

2шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

16шт.

17

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

18

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

19

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

20

249730

SECURING STRAP,8" L

Cable Tie

4шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

22

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

3шт.

23

87375650

SUPPORT

Filter Bracket

1шт.

24

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

25

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

26

84484346

STRAP,328mm L

Dual Tie

1шт.

27

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

28

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

2шт.

29

87408919

FITTING

Straight, Incl 34

1шт.

30

8605735

90 ELBOW

90 Degree Elbow

2шт.

31

8605736

FITTING

Straight

1шт.

32

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

4шт.

33

86516356

FUEL HOSE,0.38" ID, SAE 30R7

1шт.

34

87445404

O-RING,2.5mm Thk x 8mm ID, 60 Duro

Fuel Fitting, Incl with 29

1шт.
