Запчасти Case IH WD2104 (39.100.AB) - MAIN FRAME, FRONT (39) - FRAMES AND BALLASTING

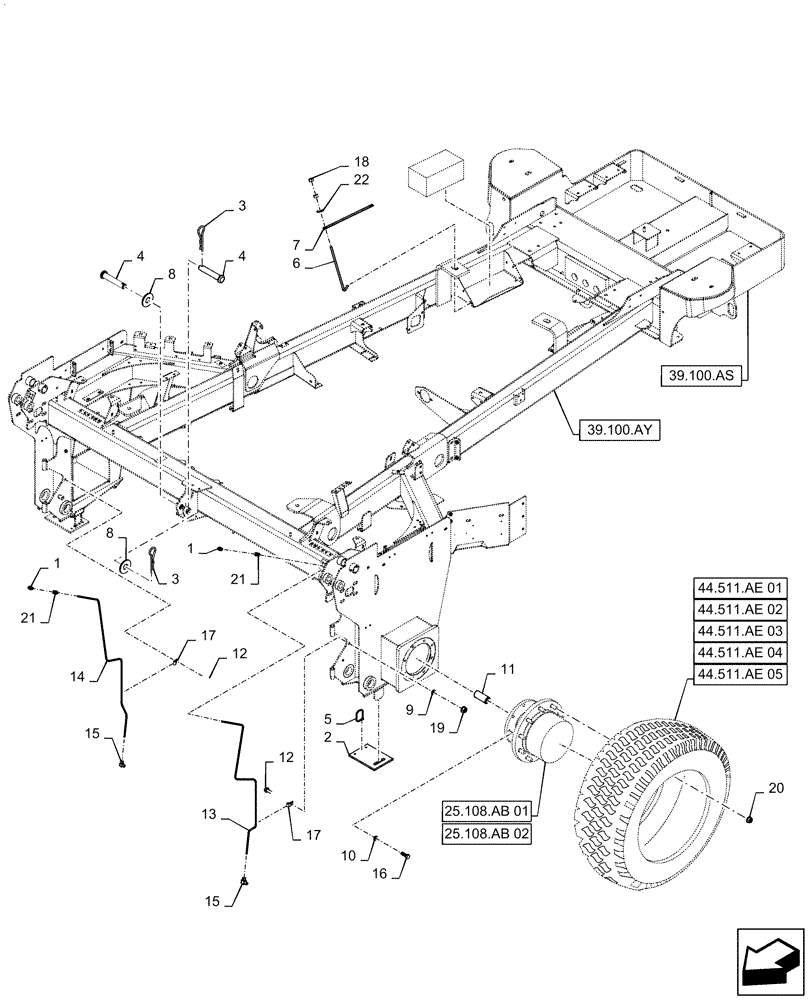

Схема запчастей Case IH WD2104 - (39.100.AB) - MAIN FRAME, FRONT (39) - FRAMES AND BALLASTING
44.511.ae 03
12
4
44.511.ae 05
5
9
44.511.ae 01
25.108.ab 01
39.100.as
12
22
19
1
13
8
17
11
3
8
14
17
3
20
21
6
44.511.ae 02
44.511.ae 04
4
25.108.ab 02
10
15
7
39.100.ay
21
1
15
2
16
18

Артикул

Название

Примечание

Количество

1

84303

LUBE NIPPLE,1/8"-27 NPT x 1" lg, Fem

2шт.

2

87052140

SKID/SHOE

Frame

2шт.

3

86000109

COTTER PIN

Hair

2шт.

4

84206494

PIN,19.05mm OD x 108.07mm L

Headed

2шт.

5

801895

CABLE TIE,30.63"

2шт.

6

798180

BOLT

Hook

2шт.

7

794967

SUPPORT

Battery Strip

1шт.

8

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

10

86729275

LOCK WASHER,5/8 0.634 CST ZND

16шт.

11

84291751

SPLINED COUPLING,13T

Splined, Planetary Input

2шт.

12

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

13

47763921

TUBE

LH Grease Line

1шт.

14

47763969

TUBE

RH Grease Line

1шт.

15

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

Male

2шт.

16

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

16шт.

17

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

18

9628503

NUT,3/8"-16, G5

8шт.

19

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

20

9790660

FLANGE NUT,Flg, 3/4"-16, G8

20шт.

21

11787

FITTING,3/8"-24 Fem x 1/8" NPT

2шт.

22

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

Выбрано товаров: 22
