Запчасти Case IH WD2104 (35.910.AF[03]) - PISTON PUMP, ASSY, BSN YGG677500 (35) - HYDRAULIC SYSTEMS

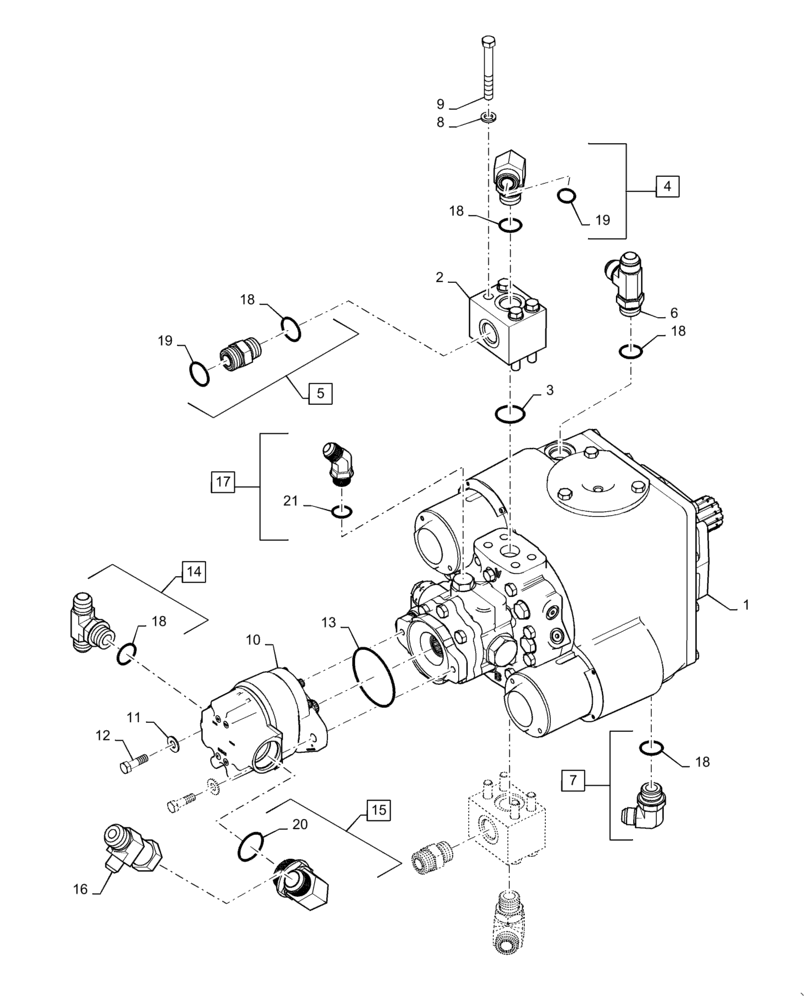

Схема запчастей Case IH WD2104 - (35.910.AF[03]) - PISTON PUMP, ASSY, BSN YGG677500 (35) - HYDRAULIC SYSTEMS
16
6
5
2
20
10
11
18
21
1
3
18
13
18
7
18
14
17
15
4
18
9
19
12
19
8

Артикул

Название

Примечание

Количество

1

47678472

HYDRAULIC PUMP

Piston, 105CC

1шт.

Ref 35.910.AF(06) For Breakdown

1шт.

2

84591069

HYDRAULIC MANIFOLD

Header Pump

2шт.

3

353108

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

2шт.

4

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 18 - 19

2шт.

5

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 18 - 19

2шт.

6

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

7

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 18

1шт.

8

81547

LOCK WASHER,7/16"

8шт.

9

9627866

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

8шт.

10

47678473

HYDRAULIC PUMP

Gear, Charge

1шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

12

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

13

272310

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

14

87622774

TEE,-12, Male 37 Degree Fl, 1 1/16"-12, Adj Str Thd OR, Br

Incl 18

1шт.

15

86513541

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

Incl 20

1шт.

16

86625274

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

1шт.

17

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl 21

1шт.

18

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

7шт.

19

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

20

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

21

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 22
