Запчасти Case IH WD2104 (35.910.AF[01]) - HYDRAULIC SYSTEM, DRIVE, DRAPER 6 CYLINDER (35) - HYDRAULIC SYSTEMS

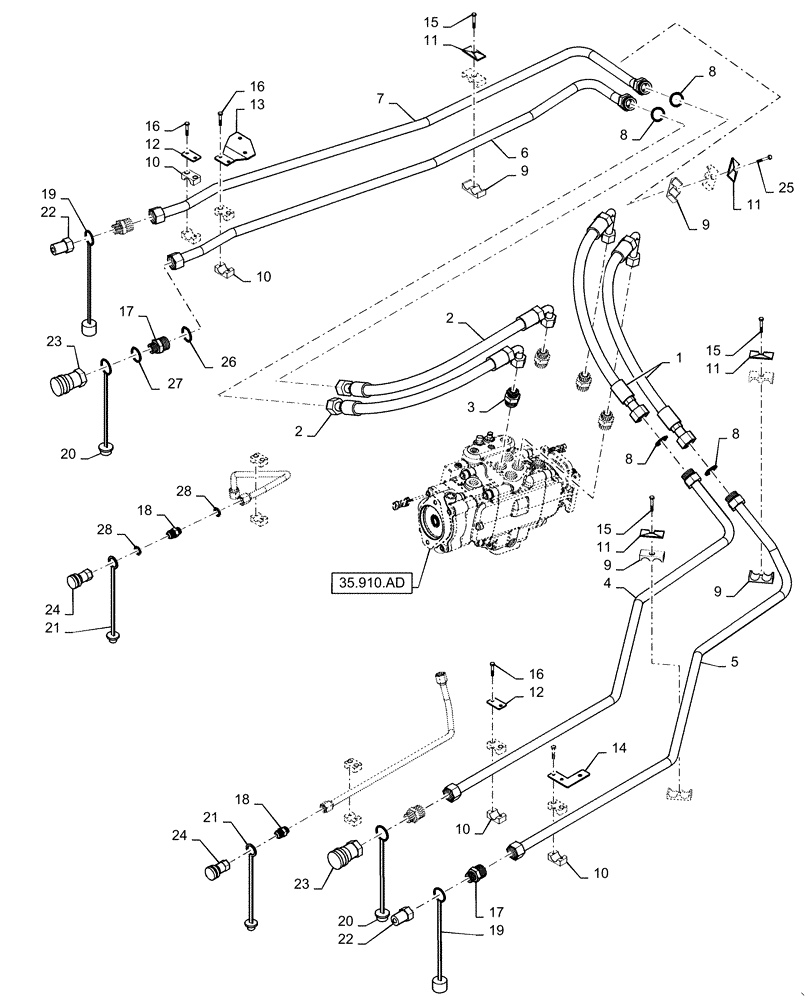

Схема запчастей Case IH WD2104 - (35.910.AF[01]) - HYDRAULIC SYSTEM, DRIVE, DRAPER 6 CYLINDER (35) - HYDRAULIC SYSTEMS
1
21
8
35.910.ad
9
19
10
8
26
2
8
27
3
5
14
25
11
24
6
9
12
10
15
23
16
13
9
11
19
10
9
7
4
11
17
22
22
20
28
18
23
12
18
17
21
20
24
15
11
16
8
16
28
2
10
15

Артикул

Название

Примечание

Количество

1

47396858

HYDRAULIC HOSE

LH Draper Header Drive, Serial Range: -YGG677500

2шт.

1

47965610

HYDRAULIC HOSE

, Start Serial: YGG677501

2шт.

2

47370375

HYDRAULIC HOSE

RH Draper Header Drive, Serial Range: -YGG677500

2шт.

2

47964946

HYDRAULIC HOSE

, Start Serial: YGG677501

2шт.

3

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Pump

4шт.

4

47396854

HYD TUBE

LH Draper Header Forward, Serial Range: -YGG677500

1шт.

4

47633863

HYD TUBE

LH Draper Header Forward, Start Serial: YGG677501

1шт.

5

47396859

HYD TUBE

LH Draper Header Reverse, Serial Range: -YGG677500

1шт.

5

47629312

HYD TUBE

LH Draper Header Reverse, Start Serial: YGG677501

1шт.

6

47396849

HYD TUBE

RH Draper Header Forward, Serial Range: -YGG677500

1шт.

6

47633862

HYD TUBE

RH Draper Header Forward, Start Serial: YGG677501

1шт.

7

47396851

HYD TUBE

RH Draper Header Reverse, Serial Range: -YGG677500

1шт.

7

47629313

HYD TUBE

RH Draper Header Reverse, Start Serial: YGG677501

1шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

9

86900725

CLAMP

Twin Tube

4шт.

10

87022323

CLAMP,25.4mm D Clamping Pipe

Single Tube

4шт.

11

87000230

PLATE

Top, Twin

4шт.

12

86900727

COVER

Top, Single

2шт.

13

47360929

BRACKET

RH

1шт.

14

47390242

BRACKET

LH

1шт.

15

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

3шт.

16

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

8шт.

17

9840329

HYD CONNECTOR

Tube to Quick Coupler

4шт.

18

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Tube to Quick Coupler

2шт.

19

87036367

DUST CAP

Black, 3/4"

2шт.

20

87036366

DUST CAP

Black Plug, 3/4"

2шт.

21

87036368

DUST CAP

Black Plug 1/2"

2шт.

22

9820148

COUPLING,1-1/16" - 12

Male

2шт.

23

86564734

COUPLING

Female

2шт.

24

87037009

COUPLING, QUICK, FEM

2шт.

25

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

26

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

Выбрано товаров: 34
