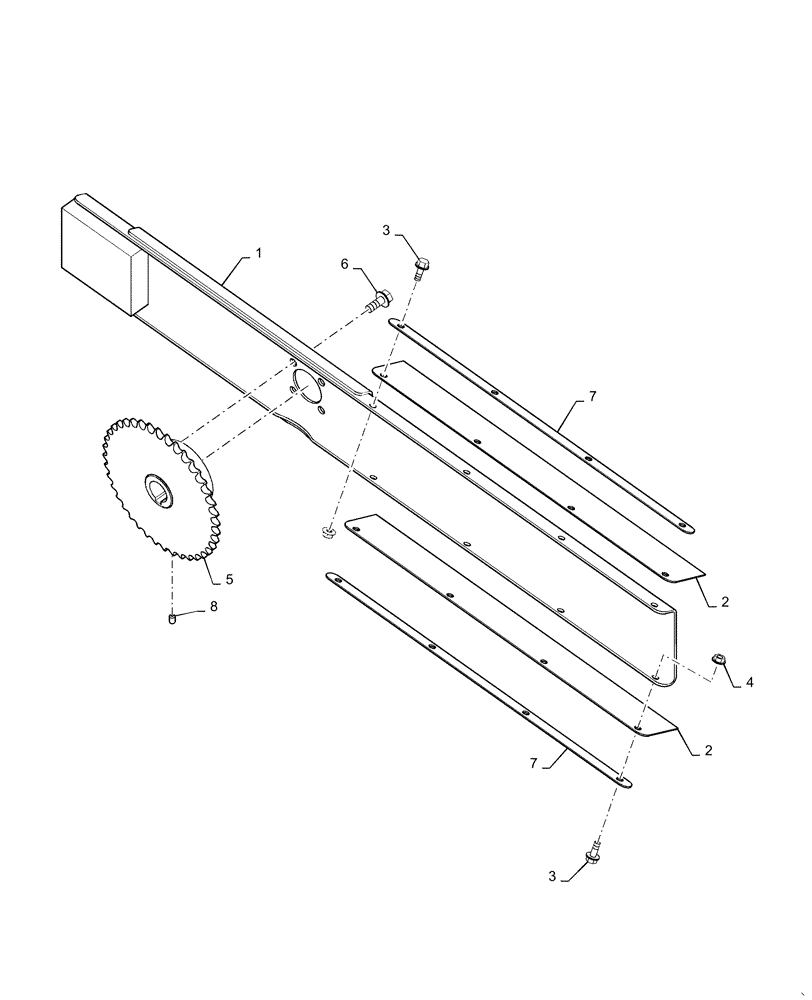

Запчасти Case IH WD1904 (10.419.AD[03]) - CHANNEL, REAR AIR CLEANER (10) - ENGINE

1

47692716

CHANNEL

RAS, Serial Range: -YGG677065

1шт.

1

47931948

CHANNEL

, Start Serial: YGG677066

1шт.

2

47362757

PANEL

Rubber Track

2шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

8шт.

4

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

8шт.

5

47408993

SPROCKET

Nozzle, Serial Range: -YGG677065

1шт.

5

47931938

SPROCKET

, Start Serial: YGG677066

1шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

7

47362761

RETAINER

Seal

2шт.

8

120242

SET SCREW,Hex Skt, M6 x 10mm, Cup Pt

1шт.
