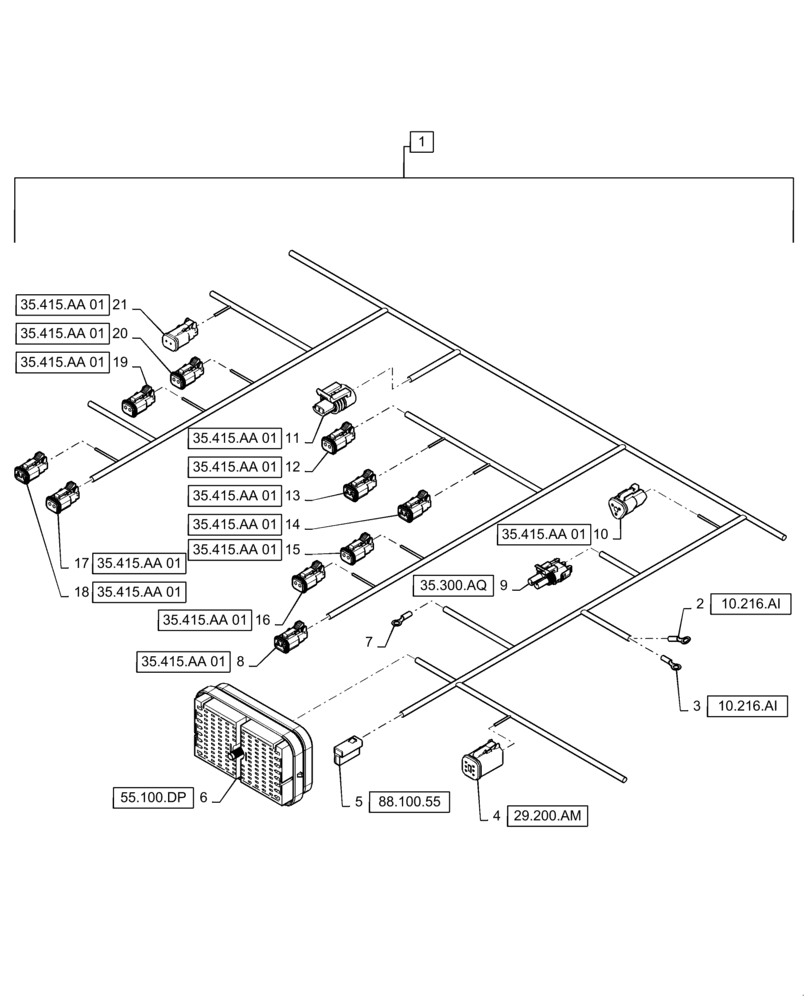

Запчасти Case IH WD1904 (55.101.AC[04]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, FM6 (CONT,) (55) - ELECTRICAL SYSTEMS

1

84572790

WIRE HARNESS

FM6, Incl 2 - 21 (Continued)

1шт.

2

84128198

HEAT SHIELD

R-001 Sensor,Fuel Level, X-047

1шт.

2

84159852

TERMINAL,#10 Ring, SAE 18 - 20

R-001 Sensor,Fuel Level, X-047

1шт.

3

84128198

HEAT SHIELD

R-001 Sensor,Fuel Level, X-498

1шт.

3

84159852

TERMINAL,#10 Ring, SAE 18 - 20

R-001 Sensor,Fuel Level, X-498

1шт.

4

87694112

ELEC CONNECTOR,Female, 6 Pole

FM To AG Pass Thru, X-042

1шт.

4

87694150

LOCKING TAB,Wedge Lock

FM To AG Pass Thru, X-042

1шт.

4

84391167

CAP

FM To AG Pass Thru, X-042

1шт.

4

87704042

TERMINAL

FM To AG Pass Thru, X-042

5шт.

5

87693325

ELEC CONNECTOR,Female, 2 Cavities

M-005 Motor, Windshield Washer Pump, X-266

1шт.

5

87709400

ELEC. TERMINAL PIN

M-005 Motor, Windshield Washer Pump, X-266

2шт.

6

84479171

MULTIPOLE CONNECTOR,128 Contacts

FM To CM Pass-Thru, X-044

1шт.

6

84479172

LOCKING TAB

FM To CM Pass-Thru, X-044

1шт.

6

84068583

PLUG,12 - 16 Ga, White

FM To CM Pass-Thru, X-044

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM To CM Pass-Thru, X-044

59шт.

6

87695923

TERMINAL

FM To CM Pass-Thru, X-044

3шт.

6

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

FM To CM Pass-Thru, X-044

12шт.

7

84128198

HEAT SHIELD

GND-005 Left Cab (Under Instruct Seat) X-376

1шт.

7

84159856

TERMINAL,5/16" Ring, SAE 14 - 16

GND-005 Left Cab (Under Instruct Seat) X-376

1шт.

8

47486924

ELEC CONNECTOR

Y-007 Solenoid, Header Lower Valve, Left (Brown) X-098

1шт.

8

84277220

LOCKING TAB,Wedge Lock

Y-007 Solenoid, Header Lower Valve, Left (Brown) X-098

1шт.

8

84277237

TERMINAL

Y-007 Solenoid, Header Lower Valve, Left (Brown) X-098

2шт.

9

87692855

CONTACT HOUSING,Male, 2 Cavities

S-019 Switch, Hydraulic Reservoir Level, X-141

1шт.

9

87692856

CABLE TERMINAL

S-019 Switch, Hydraulic Reservoir Level, X-141

2шт.

9

87680701

SEAL

S-019 Switch, Hydraulic Reservoir Level, X-141

2шт.

10

87695580

ELEC CONNECTOR,Female, 3 Pole

FM To RS/FD Pass Thru, X-627

1шт.

10

84074639

LOCKING TAB,Wedge Lock

FM To RS/FD Pass Thru, X-627

1шт.

10

84391165

HOUSING,Male, 3 Pins

FM To RS/FD Pass Thru, X-627

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM To RS/FD Pass Thru, X-627

3шт.

11

87690432

ELEC CONNECTOR

R-007 Resistor Hydraulic Oil Temperature, X-140

1шт.

11

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

R-007 Resistor Hydraulic Oil Temperature, X-140

2шт.

12

84277193

ELEC CONNECTOR

Y-023 Solenoid, Ground Speed High (Gray) X-072

1шт.

12

84277220

LOCKING TAB,Wedge Lock

Y-023 Solenoid, Ground Speed High (Gray) X-072

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-023 Solenoid, Ground Speed High (Gray) X-072

2шт.

13

47461911

ELEC CONNECTOR

Y-028 Solenoid, Brake Valve, Release (White) X-073

1шт.

13

84277220

LOCKING TAB,Wedge Lock

Y-028 Solenoid, Brake Valve, Release (White) X-073

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-028 Solenoid, Brake Valve, Release (White) X-073

2шт.

14

47486924

ELEC CONNECTOR

Y-013 Solenoid, Header Tilt (Brown) X-103

1шт.

14

84277220

LOCKING TAB,Wedge Lock

Y-013 Solenoid, Header Tilt (Brown) X-103

1шт.

14

84277237

TERMINAL

Y-013 Solenoid, Header Tilt (Brown) X-103

2шт.

15

84277534

ELEC CONNECTOR

Y-002 Solenoid, Header Flotation, Left (Green) X-093

1шт.

15

84277220

LOCKING TAB,Wedge Lock

Y-002 Solenoid, Header Flotation, Left (Green) X-093

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-002 Solenoid, Header Flotation, Left (Green) X-093

2шт.

16

84277535

ELEC CONNECTOR,Female, 2 Cavities

Y-009 Solenoid, Header Float Valve, Left (Yellow) X-100

1шт.

16

84277220

LOCKING TAB,Wedge Lock

Y-009 Solenoid, Header Float Valve, Left (Yellow) X-100

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-009 Solenoid, Header Float Valve, Left (Yellow) X-100

2шт.

17

84277533

ELEC CONNECTOR,Fem, 2 Cavities/Pins

Y-003 Solenoid, Unload Valve, Left (Blue) X-094

1шт.

17

84277220

LOCKING TAB,Wedge Lock

Y-003 Solenoid, Unload Valve, Left (Blue) X-094

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-003 Solenoid, Unload Valve, Left (Blue) X-094

2шт.

18

47461911

ELEC CONNECTOR

Y-004 Solenoid, Unload Valve, Right (White) X-095

1шт.

18

84277220

LOCKING TAB,Wedge Lock

Y-004 Solenoid, Unload Valve, Right (White) X-095

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-004 Solenoid, Unload Valve, Right (White) X-095

2шт.

19

84277535

ELEC CONNECTOR,Female, 2 Cavities

Y-010 Solenoid, Header Float Valve, Right (Yellow) X-101

1шт.

19

84277220

LOCKING TAB,Wedge Lock

Y-010 Solenoid, Header Float Valve, Right (Yellow) X-101

1шт.

19

84277237

TERMINAL

Y-010 Solenoid, Header Float Valve, Right (Yellow) X-101

2шт.

20

84277534

ELEC CONNECTOR

Y-001 Solenoid, Header Flotation, Right (Green) X-092

1шт.

20

84277220

LOCKING TAB,Wedge Lock

Y-001 Solenoid, Header Flotation, Right (Green) X-092

1шт.

20

84277237

TERMINAL

Y-001 Solenoid, Header Flotation, Right (Green) X-092

2шт.

21

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-006 Solenoid, Header Raise Valve, Right (Black) X-097

1шт.

21

84074638

LOCKING TAB,Locking Wedge, Green

Y-006 Solenoid, Header Raise Valve, Right (Black) X-097

1шт.

21

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-006 Solenoid, Header Raise Valve, Right (Black) X-097

2шт.
