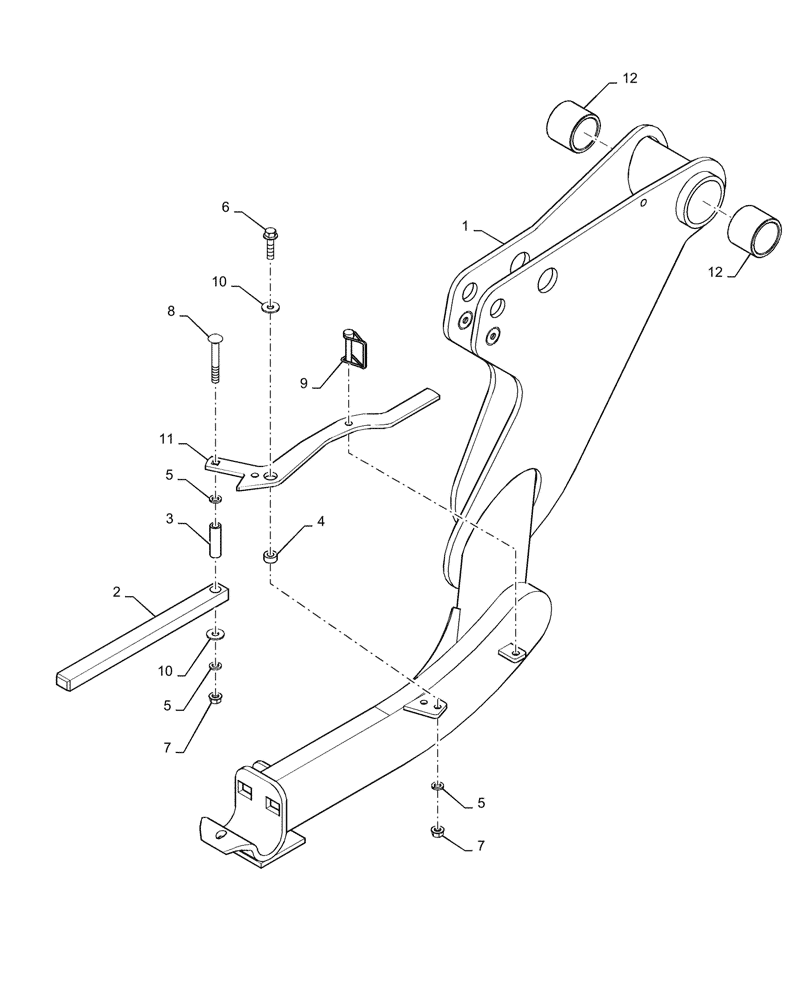

Запчасти Case IH WD1904 (37.110.AE) - LIFT ARM, LATCH HOOK, 6 CYLINDER MODELS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47474455

LIFT ARM

LH, Non Draper

1шт.

1

47474453

LIFT ARM

LH, Non-Draper

1шт.

1

47474449

LIFT ARM

LH, Draper

1шт.

1

47474448

LIFT ARM

LH, Draper

1шт.

1

47474458

LIFT ARM

RH, Non Draper

1шт.

1

47474457

LIFT ARM

RH, Non-Draper

1шт.

1

47474452

LIFT ARM

RH, Draper

1шт.

1

47474450

LIFT ARM

RH, Draper

1шт.

2

87011324

LOCK PIN

2шт.

3

87042678

SPACER

2шт.

4

646056

SPACER,13/32” ID x .750” OD x .338” Tk.

2шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

6

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

7

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

8

80280806

SCREW

Carriage 3/8-16X3 GR5 ZND

2шт.

9

86837801

PIN,7.93mm OD x 44.45mm L

2шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

11

87569777

HANDLE

Latch

2шт.

12

87649911

BUSHING,51.05mm ID x 63.65mm OD x 50.8mm L

Lift Arm

2шт.
