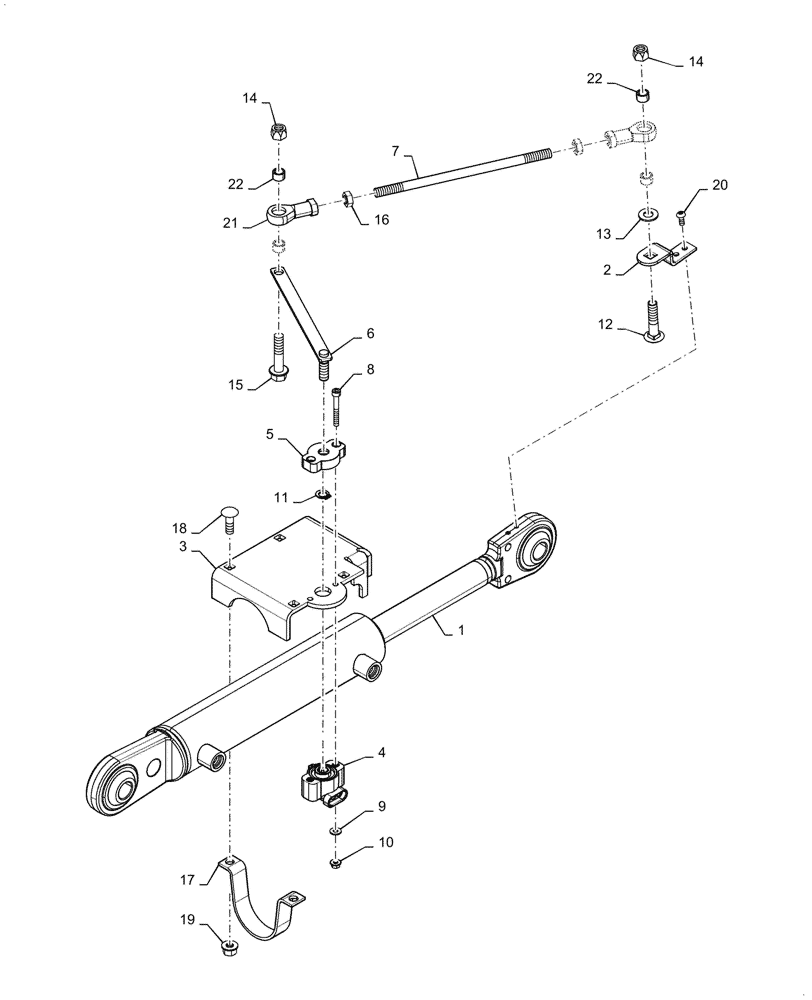

Запчасти Case IH WD1904 (35.415.AE[01]) - TILT INDICATOR ASSY, 8" INDICATOR (35) - HYDRAULIC SYSTEMS

1

47998711

HYDRAULIC CYLINDER

1шт.

2

47889456

BRACKET

Sensor Arm

1шт.

3

47959189

BRACKET

Tilt Cylinder

1шт.

4

87330286

SENSOR

Position

1шт.

5

87676896

SENSOR

Shaft Clip Cover

1шт.

6

47766192

LINKAGE

1шт.

7

47807598

ROD

Ball Ends

1шт.

8

87625620

HEX SOC SCREW,M5 x 40mm, Cl 8.8

2шт.

9

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

2шт.

10

86512495

FLANGE NUT,Hex, M5, Cl 8

2шт.

11

103-1437

SNAP RING,#37, Ext

1шт.

12

280646

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

1шт.

13

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

14

88902

NUT,3/8"-16

2шт.

15

86562215

FLANGE BOLT,3/8"-16 x 1.75", Cl 5

1шт.

16

87308

JAM NUT,Jam, 3/8"-24, G2

2шт.

17

47959007

BRACKET

Clamp

2шт.

18

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

19

9823743

FLANGE NUT,Flg, 5/16"-18

4шт.

20

86511920

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2"

2шт.

21

86500348

BALL JOINT HEAD,3/8" - 24

2шт.

22

87653299

SPACER

4шт.
