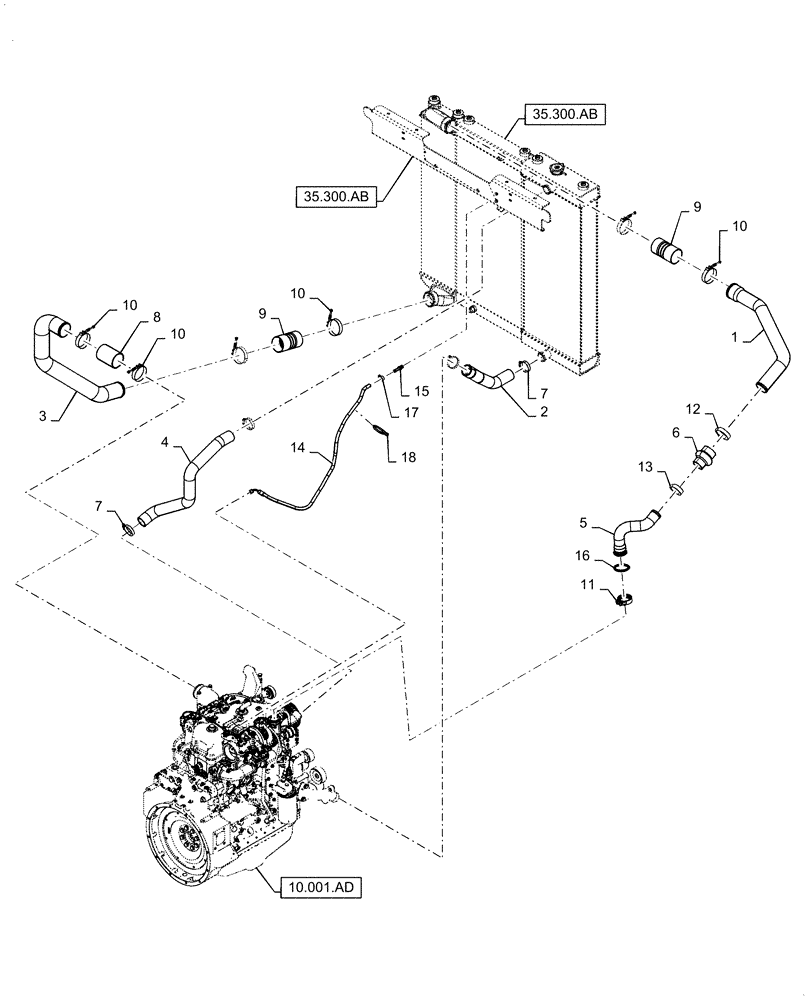

Запчасти Case IH WD1504 (10.310.AE) - INTERCOOLER LINE (10) - ENGINE

1

47517286

TUBE

Upper, CAC

1шт.

2

47517278

HOSE

Lower, Radiator

1шт.

3

47517292

TUBE

Lower, CAC

1шт.

4

47517293

HOSE

Upper, Radiator

1шт.

5

47517347

TUBE

CAC Outlet

1шт.

6

9848337

HOSE,50.8 mm ID, 63.50 mm ID x 101.60 mm

Outlet, Intercooler

1шт.

7

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

Radiator

5шт.

8

86623661

FLEXIBLE HOSE,76.20 mm ID x 110.00 mm, SAE J20 Class A

Inlet, Intercooler

1шт.

9

87340284

INTAKE AIR HOSE,76.20mm ID x 129mm L

Charge Air

2шт.

10

87041091

HOSE CLAMP,3.06" - 3.37"

CAC

6шт.

11

84365315

CLAMP,68mm

Turbo

1шт.

12

86014159

HOSE CLIP

Upper

1шт.

13

86014158

HOSE CLIP

Lower

1шт.

14

47636451

HOSE

Radiator

1шт.

15

87016893

FITTING,1/4" Hose X 1/4" NPTF Beaded

Radiator

1шт.

16

84364093

O-RING,0.103" Thk x 2.05" ID, -137, Cl 7, 75 Duro

1шт.

17

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

1шт.

18

529070

CABLE TIE,368.3mm L

2шт.
