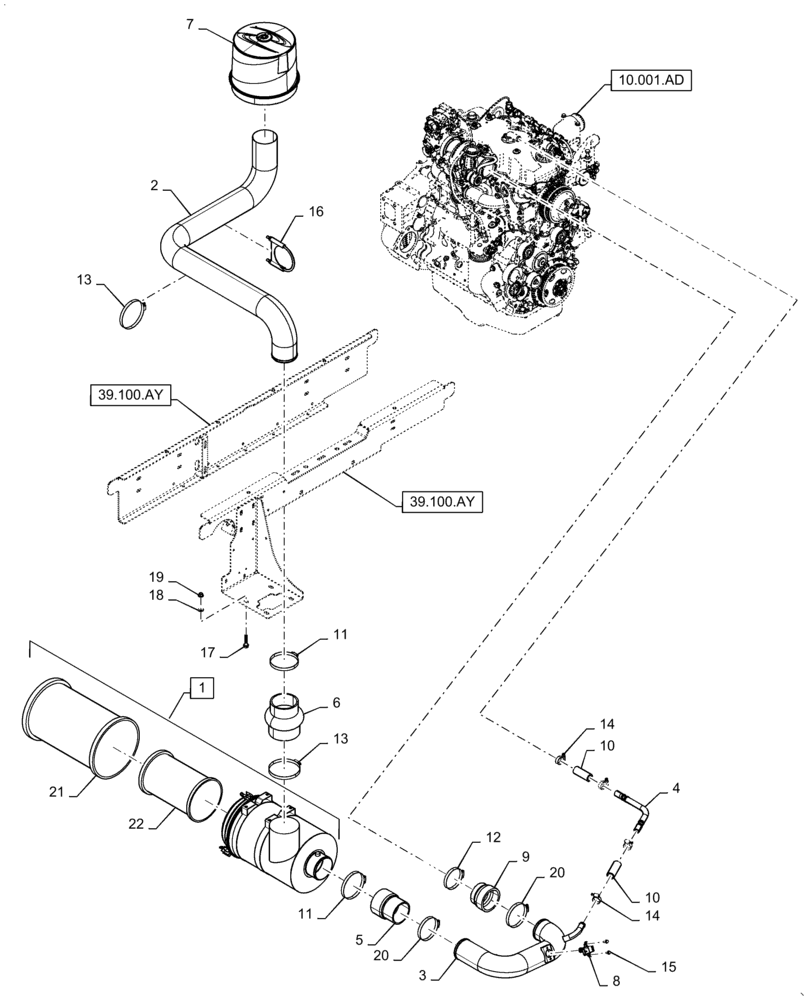

Запчасти Case IH WD1504 (10.202.AB) - AIR INTAKE (10) - ENGINE

1

47506920

AIR CLEANER

10", Incl 21 - 22

1шт.

2

47518493

TUBE

Air Cleaner

1шт.

3

47694980

TUBE

Air Intake

1шт.

4

47540369

TUBE

CCV Line

1шт.

5

47517217

HOSE

Air Intake

1шт.

6

87047481

HOSE,101.6 mm ID, 114.3 mm ID x 152.4 mm, SAE J200 3CA 710

Reducer 45/40

1шт.

7

47507537

CLEANER

Pre

1шт.

8

87482355

SENSOR

Humidity

1шт.

9

84573870

FLEXIBLE HOSE

Air Cleaner

1шт.

10

84296251

HOSE,22.23mm ID x 80mm L, SAE J30R7, Type 2

Breather

2шт.

11

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

12

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

3шт.

13

87019670

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

2шт.

14

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

4шт.

15

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

16

131539

CLAMP

Exhaust

1шт.

17

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

4шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

19

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

20

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

1шт.

21

87682990

AIR FILTER,Primary, 105.9mm ID x 207.6mm OD x 409.5mm L

Primary, Incl with 1

1шт.

22

87683000

AIR FILTER,Safety, 108.5mm OD x 403.1mm L

Secondary, Incl with 1

1шт.
