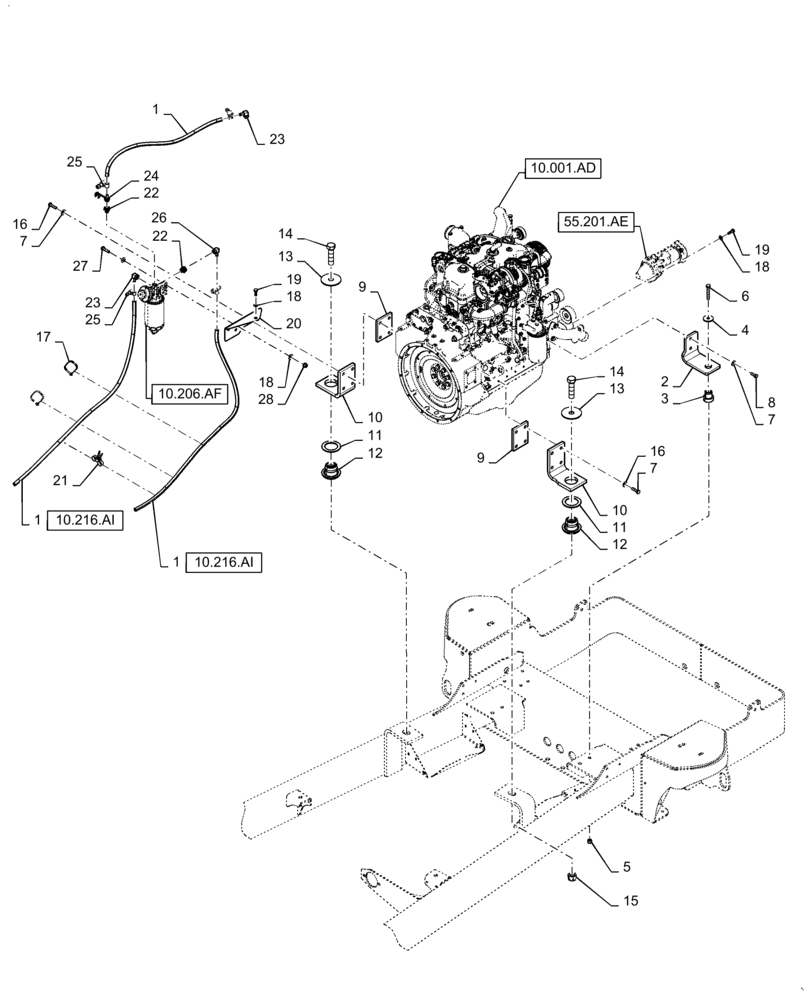

Запчасти Case IH WD1504 (10.001.AK) - ENGINE MOUNT, 4 CYLINDER (10) - ENGINE

1

86516356

FUEL HOSE,0.38" ID, SAE 30R7

1шт.

2

87543343

MOUNTING PLATE

Engine, Rear

2шт.

3

86541277

INSULATOR

Engine, Rear

2шт.

4

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

Rear Mount

2шт.

5

9636698

NUT,1/2"-13, GB

2шт.

6

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

8

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

9

87353377

SUPPORT

Front Mount Spacer

2шт.

10

47544321

MOUNT

Engine, Front

2шт.

11

9823910

WASHER

Isolator

2шт.

12

86550697

INSULATOR

Engine, Front

2шт.

13

86545287

WASHER,25.9mm ID x 101.6mm OD x 4.8mm thick

2шт.

14

280285

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

15

280286

NUT,1"-8, GB

2шт.

16

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

8шт.

17

249730

SECURING STRAP,8" L

Cable Tie

4шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

7шт.

19

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

20

47547097

BRACKET

Fuel Filter

1шт.

21

84484346

STRAP,328mm L

Dual Tie

1шт.

22

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

2шт.

23

8605735

90 ELBOW

90 Degree Elbow

2шт.

24

8605736

FITTING

Straight

1шт.

25

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

4шт.

26

87400460

90 ELBOW

1шт.

27

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

3шт.

28

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.
