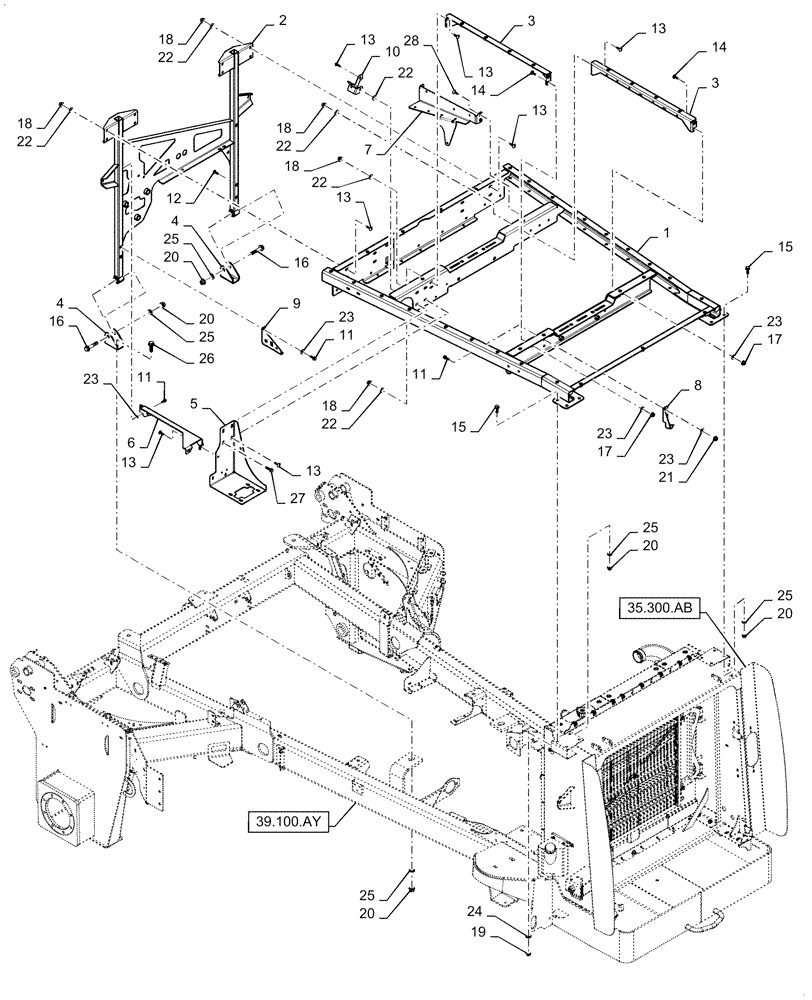

Запчасти Case IH WD1504 (90.100.AU[02]) - CENTER SUPPORT FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47610818

SUPPORT

Top

1шт.

2

47610821

SUPPORT

Front

1шт.

3

47610825

SUPPORT

Hood

2шт.

4

47643322

BRACKET

RH

2шт.

5

47519219

BRACKET

Air Cleaner

1шт.

6

47396165

BRACKET

Air Cleaner

1шт.

7

47719893

BRACKET

Coolant Support

1шт.

8

47597606

BRACKET

Intake Tube, 4 Cylinder T4B

1шт.

9

47534004

SUPPORT

Horn, Power, Switch

1шт.

10

47518471

BRACKET

Intake Tube, 6 Cylinder T4B

1шт.

11

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

12

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

2шт.

13

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

9шт.

14

86636815

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd

8шт.

15

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

8шт.

16

87646188

FLANGE BOLT,M16 x 95.4mm, Cl 10.9

2шт.

17

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

10шт.

18

9804278

FLANGE NUT,M10 x 1.5, Cl 8

12шт.

19

86512497

FLANGE NUT,M12 x 1.75, Cl 10

8шт.

20

86512498

FLANGE NUT,M16 x 2, Cl 10

4шт.

21

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

25

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

26

87698849

BOLT,M16 x 50mm, Cl 10.9

2шт.

27

87698839

FLANGE BOLT,M10 x 40mm, Cl 10.9

1шт.

28

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

2шт.
