Запчасти Case IH WD1504 (55.101.AC[05]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, FM4 (CONT,) (55) - ELECTRICAL SYSTEMS

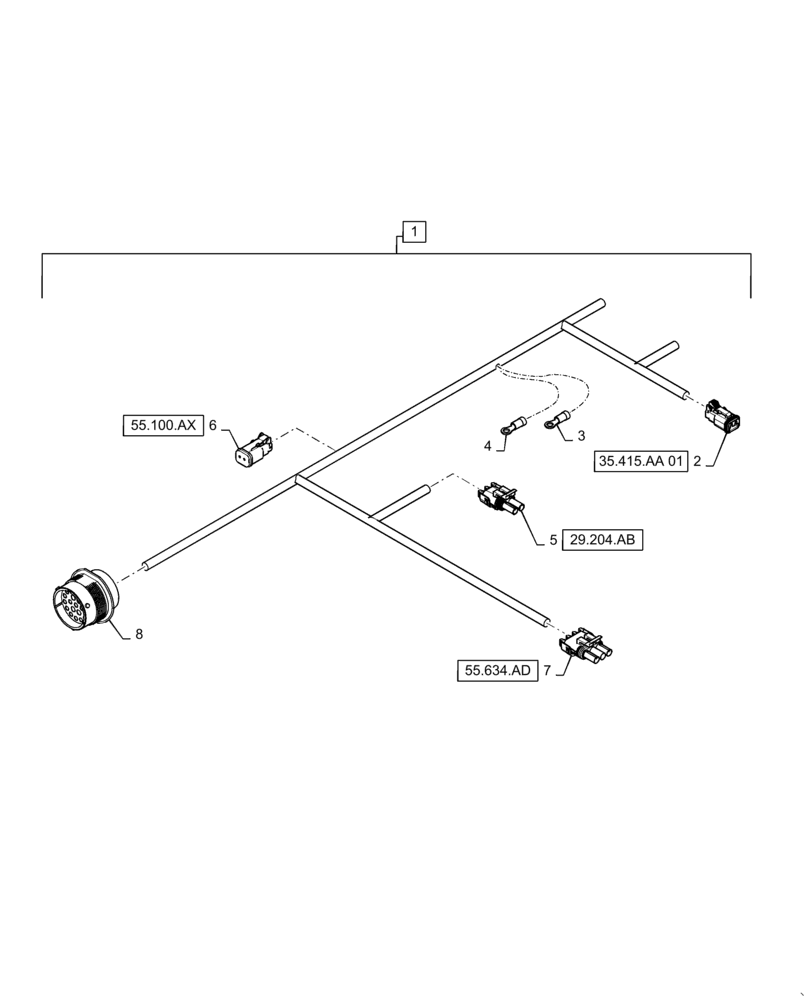

Схема запчастей Case IH WD1504 - (55.101.AC[05]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, FM4 (CONT,) (55) - ELECTRICAL SYSTEMS
29.204.ab
2
7
3
5
8
4
55.100.ax
35.415.aa 01
55.634.ad
1
6

Артикул

Название

Примечание

Количество

1

47474917

WIRE HARNESS

FM4, Incl 2 - 8 (Continued)

1шт.

2

84277193

ELEC CONNECTOR

Y-064 Solenoid, Ground Speed Range Select (Grey) X-143

1шт.

2

84277220

LOCKING TAB,Wedge Lock

Y-064 Solenoid, Ground Speed Range Select (Grey) X-143

1шт.

2

84277237

TERMINAL

Y-064 Solenoid, Ground Speed Range Select (Grey) X-143

2шт.

3

84128198

HEAT SHIELD

GND-003, X-281

1шт.

3

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

GND-003, X-281

3шт.

4

84128198

HEAT SHIELD

GND-003, X-433

1шт.

4

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

GND-003, X-433

2шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

B-002 Sensor, Ground Speed, Right, X-111

1шт.

5

87692856

CABLE TERMINAL

B-002 Sensor, Ground Speed, Right, X-111

2шт.

5

87680701

SEAL

B-002 Sensor, Ground Speed, Right, X-111

2шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

E-012 Lamp, Base Unit, Flashing, Right, X-325

1шт.

6

84074638

LOCKING TAB,Locking Wedge, Green

E-012 Lamp, Base Unit, Flashing, Right, X-325

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

E-012 Lamp, Base Unit, Flashing, Right, X-325

2шт.

7

87644909

WIRE CONNECTOR,Female, 3 Pins

B-056 Sensor, Lift Arm Position Sensor, Right, X-077

1шт.

7

87686742

PLUG

B-056 Sensor, Lift Arm Position Sensor, Right, X-077

1шт.

7

87692858

ELEC CONNECTOR,Male

B-056 Sensor, Lift Arm Position Sensor, Right, X-077

1шт.

7

87692880

CABLE TERMINAL

B-056 Sensor, Lift Arm Position Sensor, Right, X-077

3шт.

7

87680701

SEAL

B-056 Sensor, Lift Arm Position Sensor, Right, X-077

3шт.

8

84364896

PLUG

FM To AD Pass Thru Connector, X-192

1шт.

8

84607513

LOCK WASHER

FM To AD Pass Thru Connector, X-192

1шт.

8

84068583

PLUG,12 - 16 Ga, White

FM To AD Pass Thru Connector, X-192

1шт.

8

87696184

NUT

FM To AD Pass Thru Connector, X-192

1шт.

8

87716289

COVER

FM To AD Pass Thru Connector, X-192

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM To AD Pass Thru Connector, X-192

5шт.

8

87695923

TERMINAL

FM To AD Pass Thru Connector, X-192

2шт.

8

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

FM To AD Pass Thru Connector, X-192

1шт.

Выбрано товаров: 27
