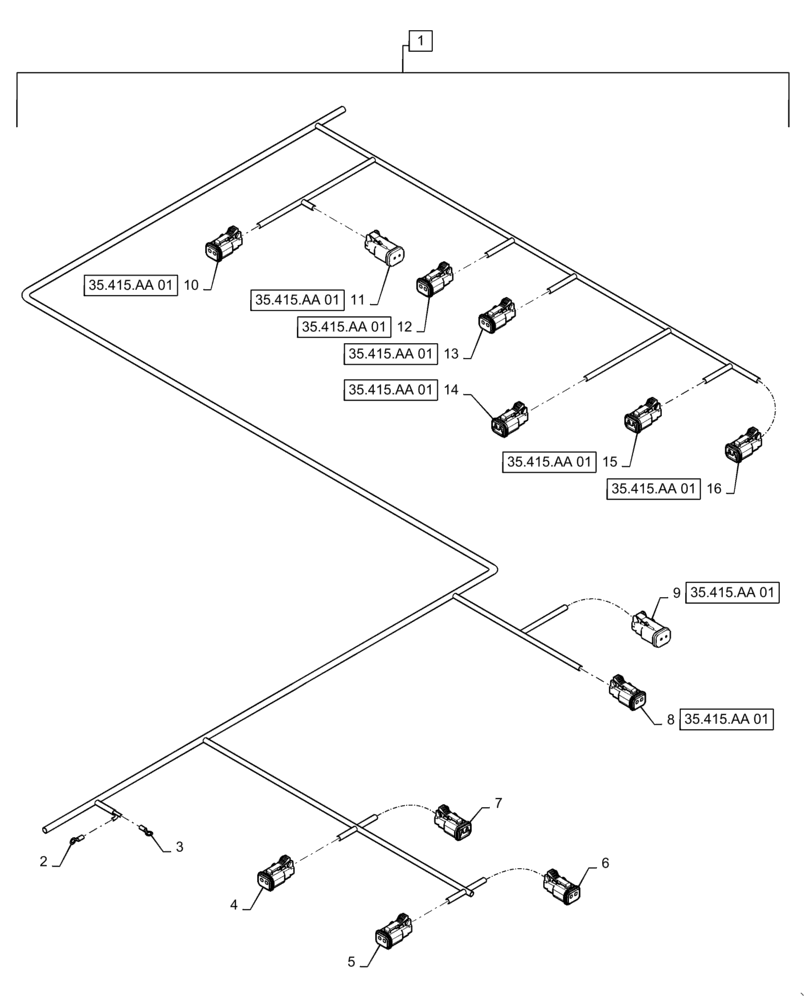

Запчасти Case IH WD1504 (55.101.AC[05]) - WIRE HARNESS & CONNECTOR, DRAPER, FD4 (CONT,) (55) - ELECTRICAL SYSTEMS

1

47474920

WIRE HARNESS

FD4, Incl 2 - 16 (Continued)

1шт.

2

84128198

HEAT SHIELD

GND-003, X-281

1шт.

2

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

GND-003, X-281

4шт.

3

84128198

HEAT SHIELD

GND-003, X-433

1шт.

3

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

GND-003, X-433

3шт.

4

84277533

ELEC CONNECTOR,Fem, 2 Cavities/Pins

Y-038 Solenoid, Draper Unload (Blue) X-137

1шт.

4

84277220

LOCKING TAB,Wedge Lock

Y-038 Solenoid, Draper Unload (Blue) X-137

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-038 Solenoid, Draper Unload (Blue) X-137

2шт.

5

84277535

ELEC CONNECTOR,Female, 2 Cavities

Y-019 Solenoid, Equalization (Yellow) X-88

1шт.

5

84277220

LOCKING TAB,Wedge Lock

Y-019 Solenoid, Equalization (Yellow) X-88

1шт.

5

84277237

TERMINAL

Y-019 Solenoid, Equalization (Yellow) X-88

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-019 Solenoid, Equalization (Yellow) X-88

1шт.

6

84277534

ELEC CONNECTOR

Y-036 Solenoid, Cut Height Position, Left (Green) X-159

1шт.

6

84277220

LOCKING TAB,Wedge Lock

Y-036 Solenoid, Cut Height Position, Left (Green) X-159

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-036 Solenoid, Cut Height Position, Left (Green) X-159

2шт.

7

47486924

ELEC CONNECTOR

Y-037 Solenoid, Draper Lift Position, Right (Brown) X-142

1шт.

7

84277220

LOCKING TAB,Wedge Lock

Y-037 Solenoid, Draper Lift Position, Right (Brown) X-142

1шт.

7

84277237

TERMINAL

Y-037 Solenoid, Draper Lift Position, Right (Brown) X-142

2шт.

8

84277193

ELEC CONNECTOR

Y-064 Solenoid, Ground Speed Range Low (Gray) X-143

1шт.

8

84277220

LOCKING TAB,Wedge Lock

Y-064 Solenoid, Ground Speed Range Low (Gray) X-143

1шт.

8

84277237

TERMINAL

Y-064 Solenoid, Ground Speed Range Low (Gray) X-143

2шт.

9

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-065 Solenoid, Lift Arm Power Down (Black) X-146

1шт.

9

84074638

LOCKING TAB,Locking Wedge, Green

Y-065 Solenoid, Lift Arm Power Down (Black) X-146

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-065 Solenoid, Lift Arm Power Down (Black) X-146

2шт.

10

84277532

ELEC CONNECTOR

Y-005 Solenoid, Header Raise Valve, Left (Red) X-096

1шт.

10

84277220

LOCKING TAB,Wedge Lock

Y-005 Solenoid, Header Raise Valve, Left (Red) X-096

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-005 Solenoid, Header Raise Valve, Left (Red) X-096

2шт.

11

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-006 Solenoid, Header Raise Valve, Right (Black) X-097

1шт.

11

84074638

LOCKING TAB,Locking Wedge, Green

Y-006 Solenoid, Header Raise Valve, Right (Black) X-097

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-006 Solenoid, Header Raise Valve, Right (Black) X-097

2шт.

12

84277534

ELEC CONNECTOR

Y-001 Solenoid, Header Flotation, Right (Green) X-092

1шт.

12

84277220

LOCKING TAB,Wedge Lock

Y-001 Solenoid, Header Flotation, Right (Green) X-092

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-001 Solenoid, Header Flotation, Right (Green) X-092

2шт.

13

84277535

ELEC CONNECTOR,Female, 2 Cavities

Y-010 Solenoid, Header Float Valve, Right (Yellow) X-101

1шт.

13

84277220

LOCKING TAB,Wedge Lock

Y-010 Solenoid, Header Float Valve, Right (Yellow) X-101

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-010 Solenoid, Header Float Valve, Right (Yellow) X-101

2шт.

14

47486924

ELEC CONNECTOR

Y-008 Solenoid, Header Lower Valve, Right (Brown) X-099

1шт.

14

84277220

LOCKING TAB,Wedge Lock

Y-008 Solenoid, Header Lower Valve, Right (Brown) X-099

1шт.

14

84277237

TERMINAL

Y-008 Solenoid, Header Lower Valve, Right (Brown) X-099

2шт.

15

47461911

ELEC CONNECTOR

Y-004 Solenoid, Unload Valve, Right (White) X-095

1шт.

15

84277220

LOCKING TAB,Wedge Lock

Y-004 Solenoid, Unload Valve, Right (White) X-095

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-004 Solenoid, Unload Valve, Right (White) X-095

2шт.

16

84277533

ELEC CONNECTOR,Fem, 2 Cavities/Pins

Y-003 Solenoid, Unload Valve, Left (Blue) X-094

1шт.

16

84277220

LOCKING TAB,Wedge Lock

Y-003 Solenoid, Unload Valve, Left (Blue) X-094

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-003 Solenoid, Unload Valve, Left (Blue) X-094

2шт.
