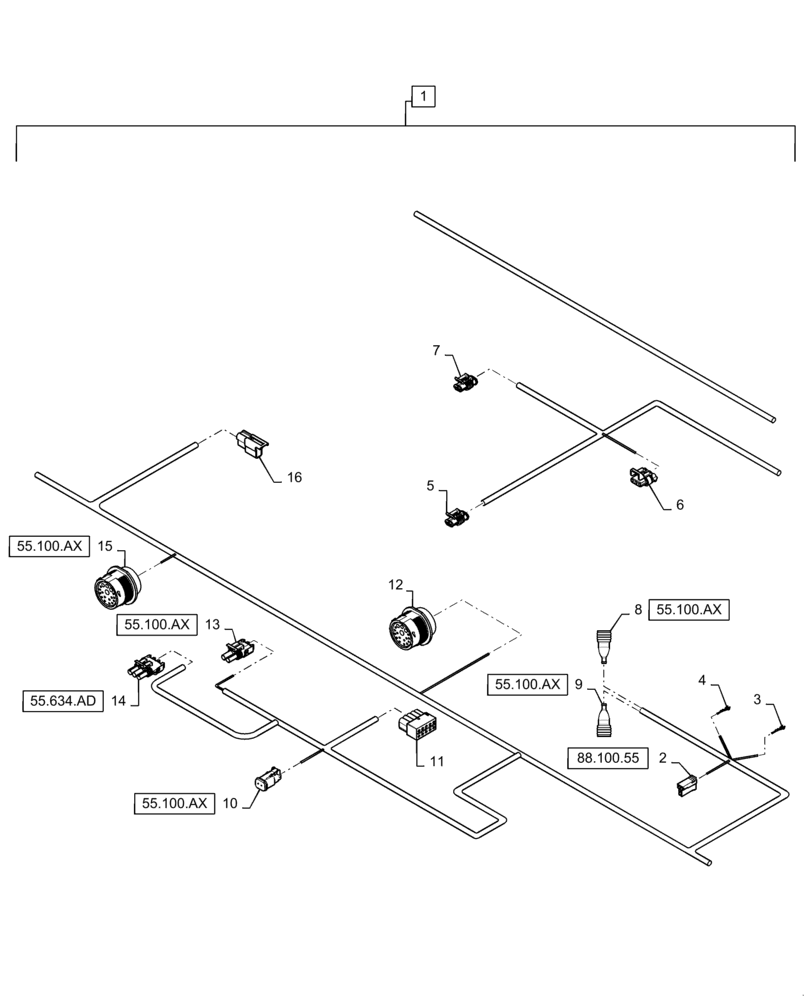

Запчасти Case IH WD1504 (55.101.AC[03]) - WIRE HARNESS & CONNECTOR, DRAPER FD4 (CONT,) (55) - ELECTRICAL SYSTEMS

1

47474920

WIRE HARNESS

FD4, Incl 2 - 16 (Continued)

1шт.

2

82944110

ELEC CONNECTOR,Female, 2 Cavities

J-007 Jack, Service Light, Left, X-255

1шт.

2

87690511

ELEC CONNECTOR

J-007 Jack, Service Light, Left, X-255

2шт.

3

84128198

HEAT SHIELD

S-043 Switch, Fuel Door Light, X-196

1шт.

3

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

S-043 Switch, Fuel Door Light, X-196

1шт.

4

84128198

HEAT SHIELD

S-043 Switch, Fuel Door Light, X-345

1шт.

4

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

S-043 Switch, Fuel Door Light, X-345

1шт.

5

82012083

WIRE CONNECTOR,Female

Y-073 Solenoid, PTO Tandem Pump Right Side, Reverse, X-156

1шт.

5

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-073 Solenoid, PTO Tandem Pump Right Side, Reverse, X-156

2шт.

5

82012084

SEAL,1.4mm ID

Y-073 Solenoid, PTO Tandem Pump Right Side, Reverse, X-156

2шт.

6

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-065 Sensor, Swash Plate Angle, Pump 2, X-089

1шт.

6

87693732

LOCKING TAB,Wedge Lock

B-065 Sensor, Swash Plate Angle, Pump 2, X-089

1шт.

6

87688852

ELEC. TERMINAL PIN

B-065 Sensor, Swash Plate Angle, Pump 2, X-089

3шт.

6

87689629

SEAL

B-065 Sensor, Swash Plate Angle, Pump 2, X-089

3шт.

7

82012083

WIRE CONNECTOR,Female

Y-072 Solenoid, PTO Tandem Pump Right Side FWD, X-153

1шт.

7

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-072 Solenoid, PTO Tandem Pump Right Side FWD, X-153

2шт.

7

82012084

SEAL,1.4mm ID

Y-072 Solenoid, PTO Tandem Pump Right Side FWD, X-153

2шт.

8

84364894

BOOT

H-002 Horn, X-145

1шт.

8

87690511

ELEC CONNECTOR

H-002 Horn, X-145

1шт.

9

84364894

BOOT

H-002 Horn, X-144

1шт.

9

87690511

ELEC CONNECTOR

H-002 Horn, X-144

1шт.

10

87695582

ELEC CONNECTOR,Female, 2 Pole

E-009 Lamp, Base Unit, Flashing, Left, X-326

1шт.

10

84074638

LOCKING TAB,Locking Wedge, Green

E-009 Lamp, Base Unit, Flashing, Left, X-326

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

E-009 Lamp, Base Unit, Flashing, Left, X-326

2шт.

11

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-101 Switch, Header Tilt, Apron, X-091

1шт.

11

82035902

PLUG

S-101 Switch, Header Tilt, Apron, X-091

1шт.

11

87694668

ELEC CONNECTOR

S-101 Switch, Header Tilt, Apron, X-091

3шт.

11

87691478

SEAL

S-101 Switch, Header Tilt, Apron, X-091

3шт.

12

84177899

ELEC CONNECTOR

Frame To ET Pass Thru, X-132

1шт.

12

84819143

TERMINAL CONNECTOR,Female, 4.5 - 8 mm2

Frame To ET Pass Thru, X-132

1шт.

12

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Frame To ET Pass Thru, X-132

14шт.

12

87695923

TERMINAL

Frame To ET Pass Thru, X-132

3шт.

13

87692855

CONTACT HOUSING,Male, 2 Cavities

B-001 Sensor, Ground Speed, Left, X-178

1шт.

13

87692856

CABLE TERMINAL

B-001 Sensor, Ground Speed, Left, X-178

2шт.

13

87680701

SEAL

B-001 Sensor, Ground Speed, Left, X-178

2шт.

14

87644909

WIRE CONNECTOR,Female, 3 Pins

B-055 Sensor, Lift Arm Position, Left, X-075

1шт.

14

87692880

CABLE TERMINAL

B-055 Sensor, Lift Arm Position, Left, X-075

3шт.

14

87680701

SEAL

B-055 Sensor, Lift Arm Position, Left, X-075

3шт.

15

87696087

ELEC CONNECTOR

FM To AC Pass-Thru Connector, Manual & ATC, X-033

1шт.

15

87704524

ELEC CONNECTOR,Pin, Size 12

FM To AC Pass-Thru Connector, Manual & ATC, X-033

2шт.

15

87695623

ELEC. TERMINAL PIN

FM To AC Pass-Thru Connector, Manual & ATC, X-033

10шт.

16

87697530

ELEC CONNECTOR

M-010 Motor, Intake Air Pressurization, X-039

1шт.

16

87693724

TERMINAL CONNECTOR,Tin, 1.00 - 2.00mm

M-010 Motor, Intake Air Pressurization, X-039

2шт.
