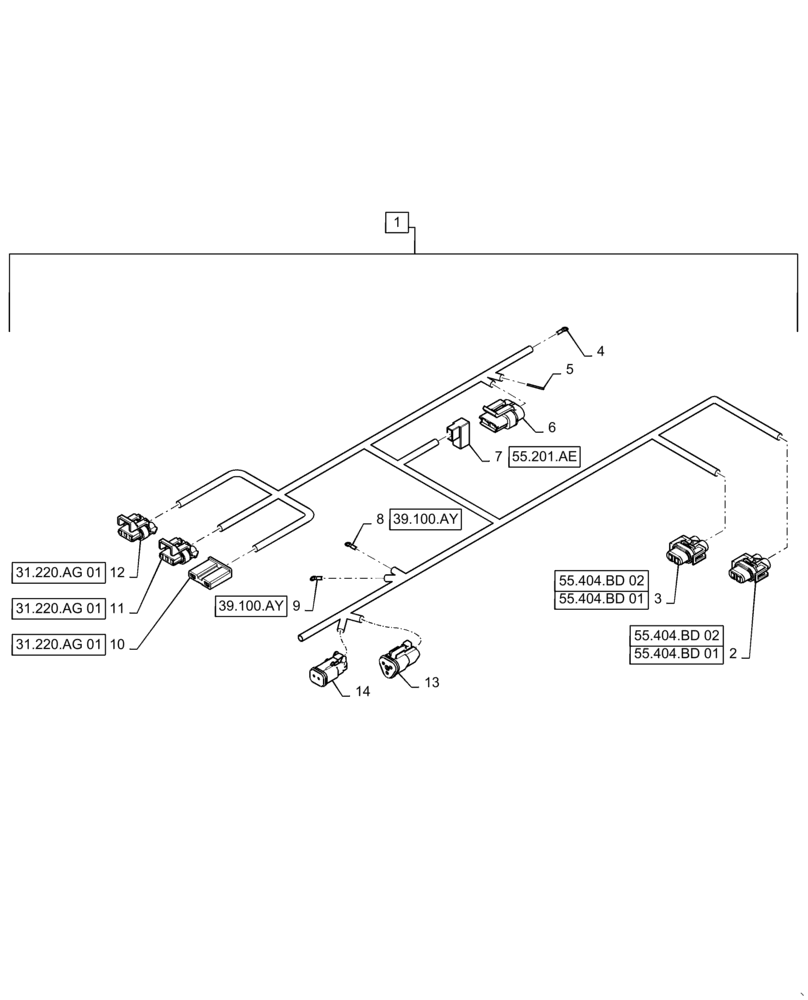

Запчасти Case IH WD1504 (55.101.AC[02]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, FM4 (CONT,) (55) - ELECTRICAL SYSTEMS

1

47474917

WIRE HARNESS

FM4, Incl 2 - 14 (Continued)

1шт.

2

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-024 Lamp, Work, Left Rear, X-225

1шт.

2

87690602

LOCK

E-024 Lamp, Work, Left Rear, X-225

1шт.

2

87680656

CONTACT

E-024 Lamp, Work, Left Rear, X-225

2шт.

2

87680701

SEAL

E-024 Lamp, Work, Left Rear, X-225

2шт.

3

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-022 Lamp, Stubble, Left, X-283

1шт.

3

87690602

LOCK

E-022 Lamp, Stubble, Left, X-283

1шт.

3

87680656

CONTACT

E-022 Lamp, Stubble, Left, X-283

2шт.

3

87680701

SEAL

E-022 Lamp, Stubble, Left, X-283

2шт.

4

84128198

HEAT SHIELD

G-001 Altermator, X-148

1шт.

4

84159854

TERMINAL,M8

G-001 Altermator, X-148

1шт.

5

84128198

HEAT SHIELD

G-001 Alternator, X-212

1шт.

5

84159852

TERMINAL,#10 Ring, SAE 18 - 20

Terminal, G-001 Alternator, X-212

1шт.

6

87688712

WIRE CONNECTOR,Female

F-054 Fuse, Alternator "W" Line, X-020

1шт.

6

87688863

CAP

F-054 Fuse, Alternator "W" Line, X-020

1шт.

6

83933689

FUSE,10A, Red

F-054 Fuse, Alternator "W" Line, X-020

1шт.

6

87688848

TERMINAL

F-054 Fuse, Alternator "W" Line, X-020

2шт.

7

84120017

ELEC CONNECTOR

M-008 Motor, Starter, X-348

1шт.

7

371230-AL02

TERMINAL

Terminal, M-008 Motor, Starter, X-348

1шт.

8

84128198

HEAT SHIELD

GND-001 Left Rear Frame, X-296

1шт.

8

84398832

TERMINAL,Eyelet, M10, 1.00 - 2.00mm

GND-001 Left Rear Frame, X-296

3шт.

9

84128198

HEAT SHIELD

GND-001 Left Rear Frame, X-305

1шт.

9

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

Terminal, GND-001 Left Rear Frame, X-305

1шт.

10

87709211

ELEC CONNECTOR

S-010 Switch, Hydraulic Charge Pressure, X-139

1шт.

10

87709400

ELEC. TERMINAL PIN

S-010 Switch, Hydraulic Charge Pressure, X-139

2шт.

11

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-059 Sensor, Swash Plate Angle, Left (Rear) X-078

1шт.

11

87693732

LOCKING TAB,Wedge Lock

B-059 Sensor, Swash Plate Angle, Left (Rear) X-078

1шт.

11

87688852

ELEC. TERMINAL PIN

B-059 Sensor, Swash Plate Angle, Left (Rear) X-078

3шт.

11

87689629

SEAL

B-059 Sensor, Swash Plate Angle, Left (Rear) X-078

3шт.

12

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-060 Sensor, Swash Plate Angle, Right (Rear) X-079

1шт.

12

87693732

LOCKING TAB,Wedge Lock

B-060 Sensor, Swash Plate Angle, Right (Rear) X-079

1шт.

12

87689629

SEAL

B-060 Sensor, Swash Plate Angle, Right (Rear) X-079

3шт.

12

87688852

ELEC. TERMINAL PIN

B-060 Sensor, Swash Plate Angle, Right (Rear) X-079

3шт.

13

87695580

ELEC CONNECTOR,Female, 3 Pole

Y-014 Solenoid Propulsion Forward, X-070

1шт.

13

84068583

PLUG,12 - 16 Ga, White

Y-014 Solenoid Propulsion Forward, X-070

1шт.

13

84074639

LOCKING TAB,Wedge Lock

Y-014 Solenoid Propulsion Forward, X-070

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-014 Solenoid Propulsion Forward, X-070

2шт.

14

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-015 Solenoid, Propulsion Reverse, X-071

1шт.

14

84074638

LOCKING TAB,Locking Wedge, Green

Y-015 Solenoid, Propulsion Reverse, X-071

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-015 Solenoid, Propulsion Reverse, X-071

2шт.
