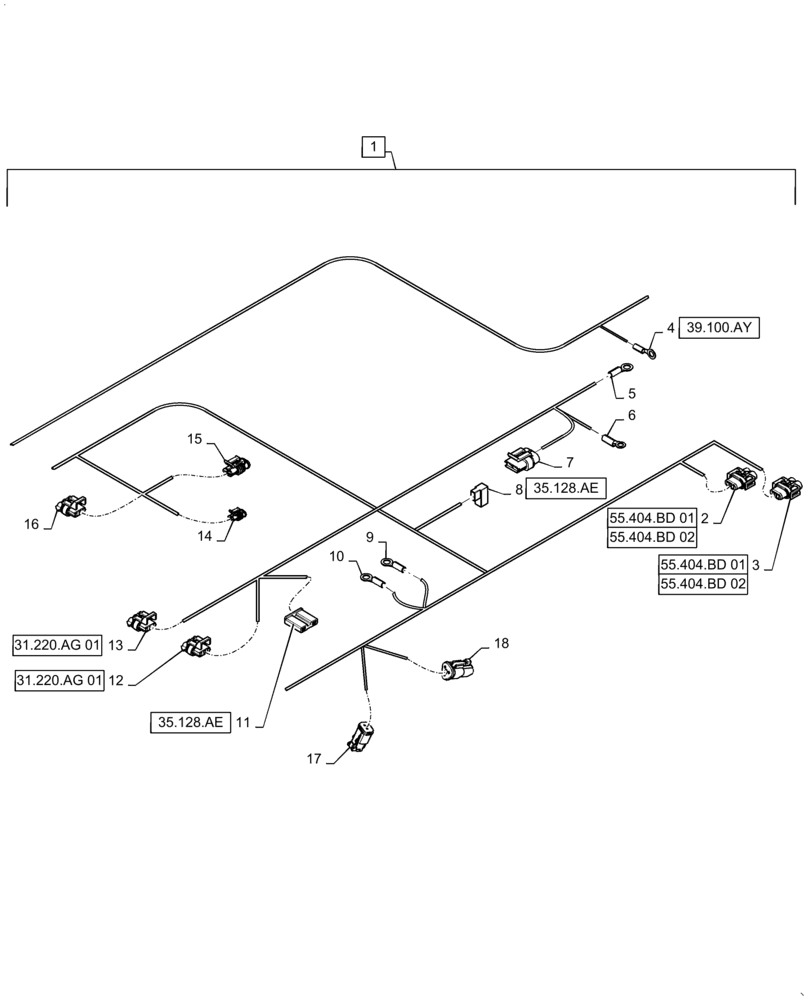

Запчасти Case IH WD1504 (55.101.AC[02]) - WIRE HARNESS & CONNECTOR, DRAPER, FD4 (CONT,) (55) - ELECTRICAL SYSTEMS

1

47474920

WIRE HARNESS

FD4, Incl 2 - 18 (Continued)

1шт.

2

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-022 Lamp, Stubble, Left, X-283

1шт.

2

87690602

LOCK

E-022 Lamp, Stubble, Left, X-283

1шт.

2

87680656

CONTACT

E-022 Lamp, Stubble, Left, X-283

2шт.

2

87680701

SEAL

E-022 Lamp, Stubble, Left, X-283

2шт.

3

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-024 Lamp, Work, Left Rear, X-225

1шт.

3

87690602

LOCK

E-024 Lamp, Work, Left Rear, X-225

1шт.

3

87680656

CONTACT

E-024 Lamp, Work, Left Rear, X-225

2шт.

3

87680701

SEAL

E-024 Lamp, Work, Left Rear, X-225

2шт.

4

84128198

HEAT SHIELD

GND-008 Right Rear Frame, X-011

1шт.

4

84398828

TERMINAL,3/8" Ring, SAE 8

GND-008 Right Rear Frame, X-011

1шт.

5

84128198

HEAT SHIELD

G-001 Alternator, X-148

1шт.

5

84159854

TERMINAL,M8

G-001 Alternator, X-148

1шт.

6

84128198

HEAT SHIELD

G-001 Alternator, X-212

1шт.

6

84159852

TERMINAL,#10 Ring, SAE 18 - 20

G-001 Alternator, X-212

1шт.

7

87688712

WIRE CONNECTOR,Female

F-054 Fuse, Alternator "W" Line, X-020

1шт.

7

87688863

CAP

F-054 Fuse, Alternator "W" Line, X-020

1шт.

7

83933689

FUSE,10A, Red

F-054 Fuse, Alternator "W" Line, X-020

1шт.

7

87688848

TERMINAL

F-054 Fuse, Alternator "W" Line, X-020

2шт.

8

84120017

ELEC CONNECTOR

M-008 Motor, Starter, X-348

1шт.

8

371230-AL02

TERMINAL

M-008 Motor, Starter, X-348

1шт.

9

84128198

HEAT SHIELD

GND-001 Left Rear Frame, X-296

1шт.

9

84398832

TERMINAL,Eyelet, M10, 1.00 - 2.00mm

GND-001 Left Rear Frame, X-296

3шт.

10

84128198

HEAT SHIELD

GND-001 Left Rear Frame, X-305

1шт.

10

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

GND-001 Left Rear Frame, X-305

1шт.

11

87709211

ELEC CONNECTOR

S-010 Switch, Hydraulic Charge Pressure, X-139

1шт.

11

87709400

ELEC. TERMINAL PIN

S-010 Switch, Hydraulic Charge Pressure, X-139

2шт.

12

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-059 Sensor, Swash Plate Angle Left (Front) X-078

1шт.

12

87693732

LOCKING TAB,Wedge Lock

B-059 Sensor, Swash Plate Angle Left (Front) X-078

1шт.

12

87688852

ELEC. TERMINAL PIN

B-059 Sensor, Swash Plate Angle Left (Front) X-078

3шт.

12

87689629

SEAL

B-059 Sensor, Swash Plate Angle Left (Front) X-078

3шт.

13

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-060 Sensor, Swash Plate Angle (Right) X-079

1шт.

13

87693732

LOCKING TAB,Wedge Lock

B-060 Sensor, Swash Plate Angle (Right) X-079

1шт.

13

87688852

ELEC. TERMINAL PIN

B-060 Sensor, Swash Plate Angle (Right) X-079

3шт.

13

87689629

SEAL

B-060 Sensor, Swash Plate Angle (Right) X-079

3шт.

14

82012083

WIRE CONNECTOR,Female

Y-070 Solenoid, PTO Tandem Pump Leftside FWD, X-169

1шт.

14

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-070 Solenoid, PTO Tandem Pump Leftside FWD, X-169

2шт.

14

82012084

SEAL,1.4mm ID

Y-070 Solenoid, PTO Tandem Pump Leftside FWD, X-169

2шт.

15

82012083

WIRE CONNECTOR,Female

Y-071 Solenoid, PTO Tandem Pump Leftside Reverse, X-046

1шт.

15

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-071 Solenoid, PTO Tandem Pump Leftside Reverse, X-046

2шт.

15

82012084

SEAL,1.4mm ID

Y-071 Solenoid, PTO Tandem Pump Leftside Reverse, X-046

2шт.

16

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-064 Sensor, Swash Plate Angle, Pump 1, X-080

1шт.

16

87693732

LOCKING TAB,Wedge Lock

B-064 Sensor, Swash Plate Angle, Pump 1, X-080

1шт.

16

87688852

ELEC. TERMINAL PIN

B-064 Sensor, Swash Plate Angle, Pump 1, X-080

3шт.

16

87689629

SEAL

B-064 Sensor, Swash Plate Angle, Pump 1, X-080

3шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-015 Solenoid, Propulsion Reverse, X-071

1шт.

17

84074638

LOCKING TAB,Locking Wedge, Green

Y-015 Solenoid, Propulsion Reverse, X-071

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-015 Solenoid, Propulsion Reverse, X-071

2шт.

18

87695580

ELEC CONNECTOR,Female, 3 Pole

Y-014 Solenoid, Propulsion Forward, X-070

1шт.

18

84068583

PLUG,12 - 16 Ga, White

Y-014 Solenoid, Propulsion Forward, X-070

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-014 Solenoid, Propulsion Forward, X-070

2шт.
