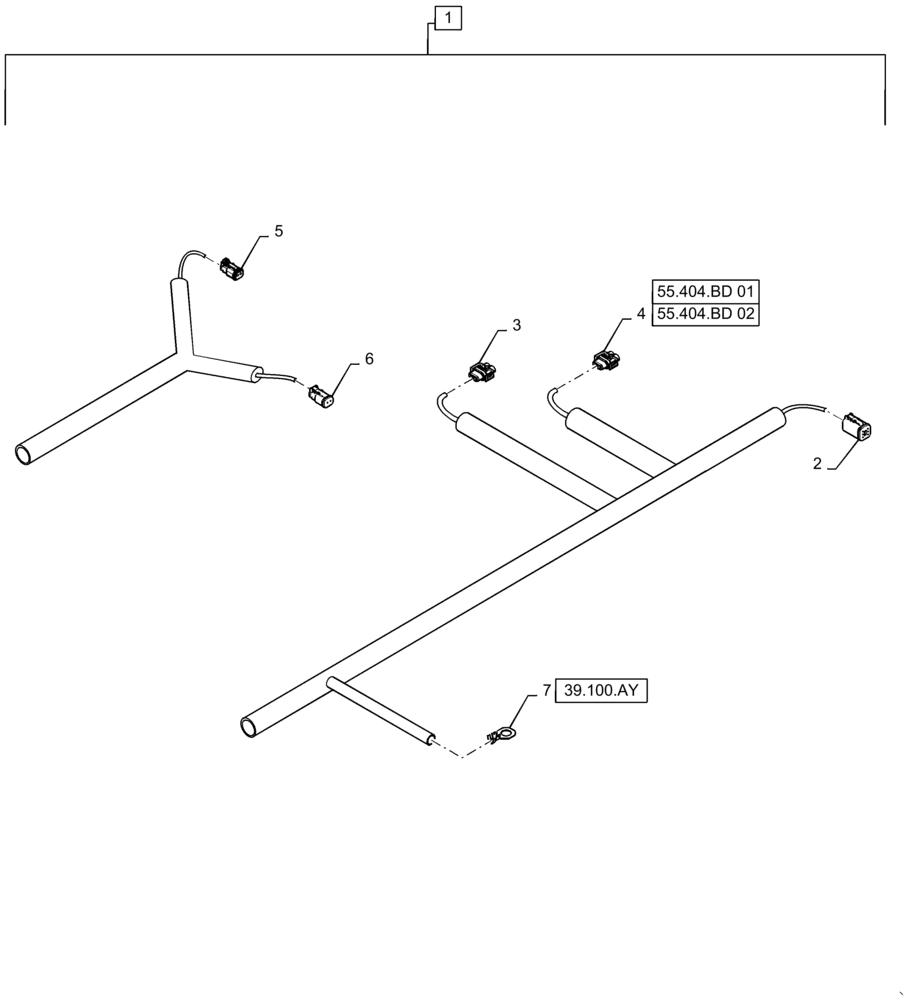

Запчасти Case IH WD1504 (55.101.AC[01]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, FM4 (55) - ELECTRICAL SYSTEMS

1

47474917

WIRE HARNESS

Incl 2 - 7 FM4

1шт.

2

87694112

ELEC CONNECTOR,Female, 6 Pole

FM To TL Pass Thru, X-149

1шт.

2

87694150

LOCKING TAB,Wedge Lock

FM To TL Pass Thru, X-149

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

FM To TL Pass Thru

3шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM To TL Pass Thru

3шт.

3

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-025 Lamp, Work, Right Rear, X-222

1шт.

3

87690602

LOCK

E-025 Lamp, Work, Right Rear, X-222

1шт.

3

87680656

CONTACT

E-025 Lamp, Work, Right Rear

2шт.

3

87680701

SEAL

E-025 Lamp, Work, Right Rear

2шт.

4

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-023 Lamp, Stubble, Right, X-221

1шт.

4

87690602

LOCK

E-023 Lamp, Stubble, Right, X-221

1шт.

4

87680701

SEAL

E-023 Lamp, Stubble, Right

1шт.

4

87680656

CONTACT

E-023 Lamp, Stubble, Right

2шт.

5

84277534

ELEC CONNECTOR

Y-031 Solenoid, PTO Reverse, X-105

1шт.

5

84277220

LOCKING TAB,Wedge Lock

Y-031 Solenoid, PTO Reverse, X-105

1шт.

5

84277237

TERMINAL

Y-031 Solenoid, PTO Reverse

2шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-030 Solenoid, PTO Forward, X-104

1шт.

6

84074638

LOCKING TAB,Locking Wedge, Green

Y-030 Solenoid, PTO Forward, X-104

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-030 Solenoid, PTO Forward

2шт.

7

84128198

HEAT SHIELD

GND-008 Right Rear Frame, X-011

1шт.

7

84398828

TERMINAL,3/8" Ring, SAE 8

GND-008 Right Rear Frame

1шт.
