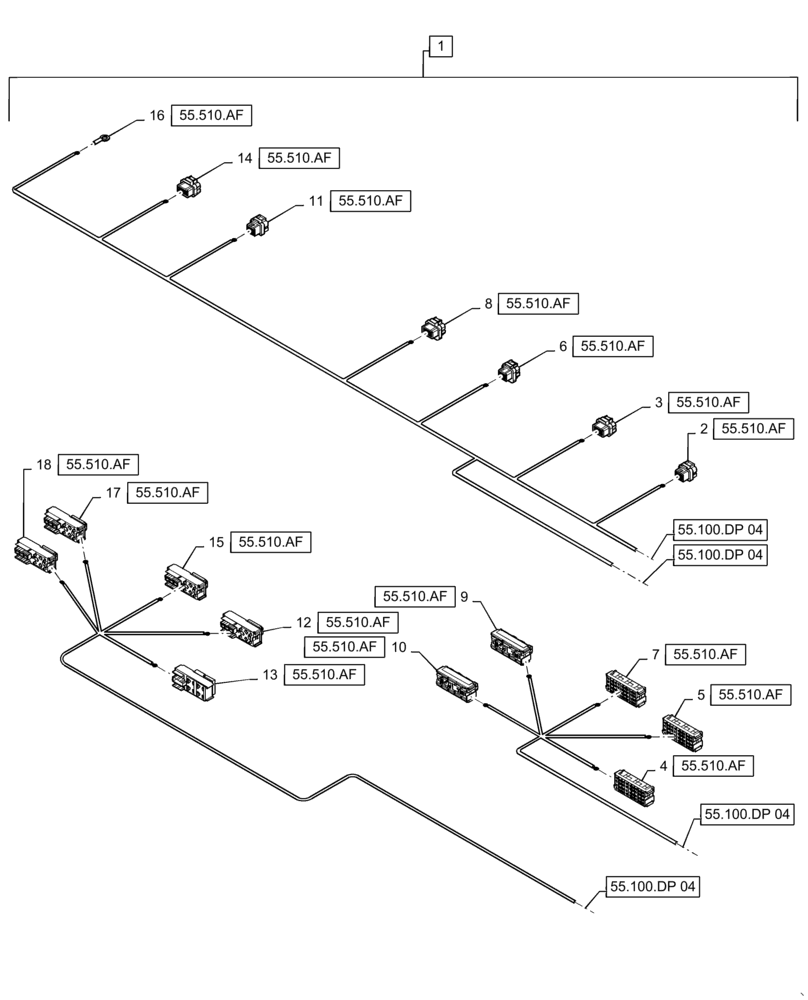

Запчасти Case IH WD1504 (55.100.DP[05]) - WIRE HARNESS & CONNECTOR, DRAPER, CD4 (CONT.) (55) - ELECTRICAL SYSTEMS

1

84572802

WIRE HARNESS

CD4, Incl 2 - 18 (Continued)

1шт.

2

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

A-001 UCM, X-003

1шт.

2

82017048

CABLE TERMINAL

A-001 UCM, X-003

19шт.

3

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

A-001 Module, UCM, X-004

1шт.

3

82017048

CABLE TERMINAL

A-001 Module, UCM, X-004

23шт.

4

84526304

MODULE

Connector, Z-009, X-372

1шт.

4

84491250

TERMINAL

Z-009, X-372

10шт.

4

84529032

TERMINAL

Z-009, X-372

12шт.

5

84526304

MODULE

Connector, Z-008, X-366

1шт.

5

84491250

TERMINAL

Z-008, X-366

10шт.

5

84529032

TERMINAL

Z-008, X-366

12шт.

5

84491251

TERMINAL

Z-008, X-366

2шт.

6

84130757

ELEC CONNECTOR,Female, 26 Cavities

A-001 Module, UCM, X-005

1шт.

6

82017048

CABLE TERMINAL

A-001 Module, UCM, X-005

19шт.

7

84526304

MODULE

Connector, Z-007, X-365

1шт.

7

84529032

TERMINAL

Z-007, X-365

12шт.

7

84491250

TERMINAL

Z-007, X-365

4шт.

7

84491251

TERMINAL

Z-007, X-365

6шт.

7

84207859

TERMINAL

Z-007, X-365

2шт.

8

84130760

ELEC CONNECTOR,Female, 34 Cavities

A-001 UCM, X-006

1шт.

8

82017048

CABLE TERMINAL

A-001 UCM, X-006

22шт.

9

84405124

ELEC CONNECTOR,Female, 8 Cavities

Module, Connector, Z-001, X-360

1шт.

9

84405125

LOCKING TAB

Lock, Z-001, X-360

1шт.

9

84164961

TERMINAL

Z-001, X-360

4шт.

9

84491250

TERMINAL

Z-001, X-360

4шт.

10

84405124

ELEC CONNECTOR,Female, 8 Cavities

Module, Connector, Z-010, X-165

1шт.

10

84405125

LOCKING TAB

Lock, Z-010, X-165

1шт.

10

84491250

TERMINAL

Z-010, X-165

4шт.

10

84164961

TERMINAL

Z-010, X-165

2шт.

10

84164962

TERMINAL

Z-010, X-165

2шт.

11

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

A-001 UCM, X-007

1шт.

11

82017048

CABLE TERMINAL

A-001 UCM, X-007

7шт.

12

87733595

FUSE HOLDER

Connector, Z-005, X-364

1шт.

12

84123443

TERMINAL

Z-005, X-364

7шт.

12

84164962

TERMINAL

Z-005, X-364

2шт.

12

84123442

TERMINAL

Z-005, X-364

6шт.

12

84127679

TERMINAL

Z-005, X-364

1шт.

12

84164963

TERMINAL

Terminal, Z-005, X-364

2шт.

13

87733596

FUSE BOX

Connector, Z-006, X-356

1шт.

13

84123442

TERMINAL

Z-006, X-356

3шт.

13

84164963

TERMINAL

Terminal, Z-006, X-356

8шт.

13

84123443

TERMINAL

Z-006, X-356

3шт.

13

84153403

TERMINAL

Terminal, Z-006, X-356

10шт.

13

84127679

TERMINAL

Z-006, X-356

1шт.

14

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

A-001 UCM, X-008

1шт.

14

82017048

CABLE TERMINAL

A-001 UCM, X-008

24шт.

15

87733595

FUSE HOLDER

Connector, Z-004, X-363

1шт.

15

84123443

TERMINAL

Z-004, X-363

6шт.

15

84123442

TERMINAL

Z-004, X-363

8шт.

15

84164963

TERMINAL

Terminal, Z-004, X-363

2шт.

15

84164962

TERMINAL

Z-004, X-363

2шт.

15

84127679

TERMINAL

Z-004, X-363

2шт.

16

84399574

TERMINAL,5/16" Ring, SAE 10 - 12

Ring Terminal, GND-002 UCM Ground

3шт.

17

87733595

FUSE HOLDER

Connector, Z-003, X-362

1шт.

17

84123443

TERMINAL

Z-003, X-362

5шт.

17

84127679

TERMINAL

Z-003, X-362

4шт.

17

84123442

TERMINAL

Z-003, X-362

6шт.

17

84164962

TERMINAL

Z-003, X-362

2шт.

17

84164963

TERMINAL

Terminal, Z-003, X-362

2шт.

18

87733595

FUSE HOLDER

Connector, Z-002, X-361

1шт.

18

84123443

TERMINAL

Z-002, X-361

4шт.

18

84123442

TERMINAL

Z-002, X-361

8шт.

18

84164962

TERMINAL

Z-002, X-361

2шт.

18

84164963

TERMINAL

Terminal, Z-002, X-361

2шт.

18

84127679

TERMINAL

Z-002, X-361

3шт.
