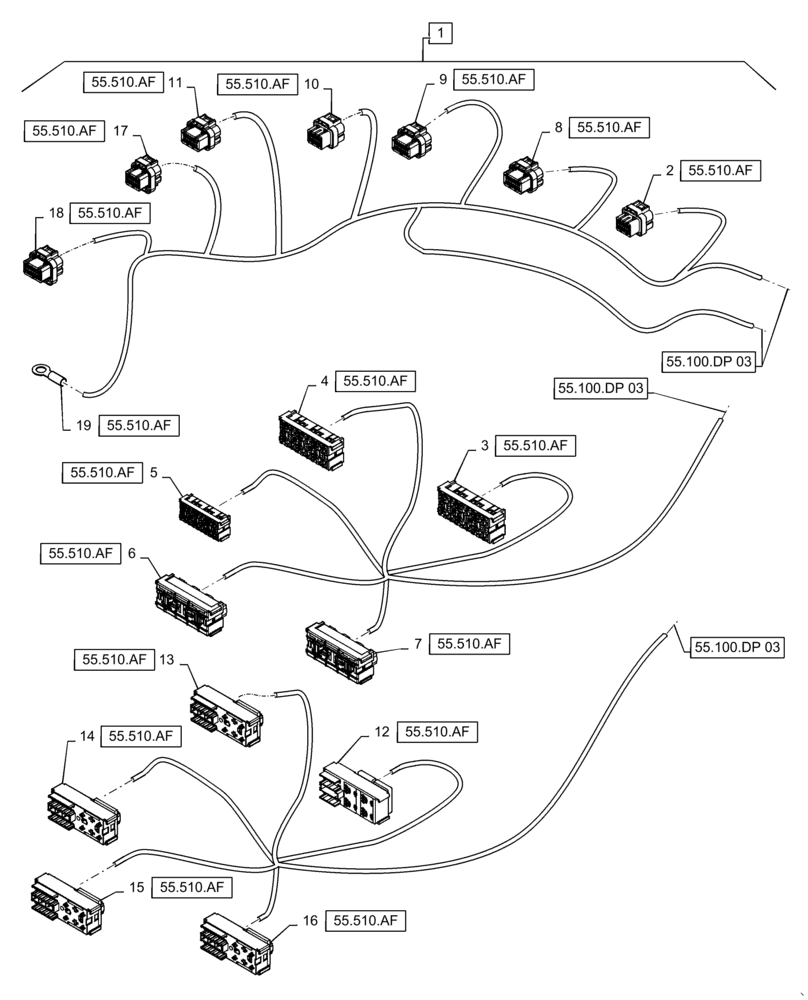

Запчасти Case IH WD1504 (55.100.DP[04]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, CM4 (CONT.) (55) - ELECTRICAL SYSTEMS

1

84572801

WIRE HARNESS

CM4, Incl 2 - 19 (Continued)

1шт.

2

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

A-001 UCM, X-002

1шт.

2

82017048

CABLE TERMINAL

A-001 UCM, X-002

23шт.

3

84526304

MODULE

Z-009, X-372

1шт.

3

84529032

TERMINAL

Z-009, X-372

2шт.

3

84491250

TERMINAL

Z-009, X-372

2шт.

4

84526304

MODULE

Z-008, X-366

1шт.

4

84491250

TERMINAL

Z-008, X-366

8шт.

4

84529032

TERMINAL

Z-008, X-366

11шт.

4

84491251

TERMINAL

Z-008, X-366

2шт.

5

84526304

MODULE

Z-007, X-365

1шт.

5

84491251

TERMINAL

Z-007, X-365

6шт.

5

84207859

TERMINAL

Z-007, X-365

2шт.

5

84491250

TERMINAL

Z-007, X-365

4шт.

5

84529032

TERMINAL

Z-007, X-365

12шт.

6

84405124

ELEC CONNECTOR,Female, 8 Cavities

Connector, Z-001, X-360

1шт.

6

84405125

LOCKING TAB

Lock, Z-001, X-360

1шт.

6

84491250

TERMINAL

Z-001, X-360

4шт.

6

84164961

TERMINAL

Z-001, X-360

4шт.

7

84405124

ELEC CONNECTOR,Female, 8 Cavities

Connector, Z-010, X-165

1шт.

7

84405125

LOCKING TAB

Lock, Z-010, X-165

1шт.

7

84164961

TERMINAL

Z-010, X-165

2шт.

7

84491250

TERMINAL

Z-010, X-165

2шт.

8

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

A-001 UCM, X-003

1шт.

8

82017048

CABLE TERMINAL

A-001 UCM, X-003

15шт.

9

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

A-001 Module, UCM, X-004

1шт.

9

82017048

CABLE TERMINAL

A-001 Module, UCM, X-004

19шт.

10

84130757

ELEC CONNECTOR,Female, 26 Cavities

A-001 Module, UCM, X-005

1шт.

10

82017049

PLUG

A-001 Module, UCM, X-005

1шт.

10

82017048

CABLE TERMINAL

A-001 Module, UCM, X-005

15шт.

11

84130760

ELEC CONNECTOR,Female, 34 Cavities

A-001 UCM, X-006

1шт.

11

82017049

PLUG

A-001 UCM, X-006

1шт.

11

82017048

CABLE TERMINAL

A-001 UCM, X-006

18шт.

12

87733596

FUSE BOX

Z-006, Z-356

1шт.

12

84123442

TERMINAL

Z-006, Z-356

4шт.

12

84164963

TERMINAL

Terminal, Z-006, Z-356

8шт.

12

84127679

TERMINAL

Z-006, Z-356

2шт.

12

84123443

TERMINAL

Z-006, Z-356

3шт.

12

84153403

TERMINAL

Terminal, Z-006, Z-356

10шт.

13

87733595

FUSE HOLDER

Z-005, X-364

1шт.

13

84123442

TERMINAL

Z-005, X-364

8шт.

13

84123443

TERMINAL

Z-005, X-364

7шт.

13

84164962

TERMINAL

Z-005, X-364

2шт.

13

84127679

TERMINAL

Z-005, X-364

1шт.

13

84164963

TERMINAL

Terminal, Z-005, X-364

2шт.

14

87733595

FUSE HOLDER

Z-004, X-363

1шт.

14

84123442

TERMINAL

Z-004, X-363

8шт.

14

84123443

TERMINAL

Z-004, X-363

6шт.

14

84164962

TERMINAL

Z-004, X-363

2шт.

14

84127679

TERMINAL

Z-004, X-363

1шт.

14

84164963

TERMINAL

Terminal, Z-004, X-363

2шт.

15

87733595

FUSE HOLDER

Z-003, X-362

1шт.

15

84127679

TERMINAL

Z-003, X-362

2шт.

15

84123443

TERMINAL

Z-003, X-362

6шт.

15

84123442

TERMINAL

Z-003, X-362

4шт.

15

84164962

TERMINAL

Z-003, X-362

2шт.

15

84199548

TERMINAL

Z-003, X-362

2шт.

16

87733595

FUSE HOLDER

Z-002, X-361

1шт.

16

84127679

TERMINAL

Z-002, X-361

3шт.

16

84123442

TERMINAL

Z-002, X-361

7шт.

16

84123443

TERMINAL

Z-002, X-361

4шт.

16

84199548

TERMINAL

Z-002, X-361

2шт.

16

84164962

TERMINAL

Z-002, X-361

2шт.

17

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

A-001 UCM, X-007

1шт.

17

82017049

PLUG

A-001 UCM, X-007

1шт.

17

82017048

CABLE TERMINAL

A-001 UCM, X-007

5шт.

18

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

A-001 UCM, X-008

1шт.

18

82017049

PLUG

A-001 UCM, X-008

1шт.

18

82017048

CABLE TERMINAL

A-001 UCM, X-008

20шт.

19

84399574

TERMINAL,5/16" Ring, SAE 10 - 12

Terminal, GND-002 UCM Ground, X-333

3шт.
