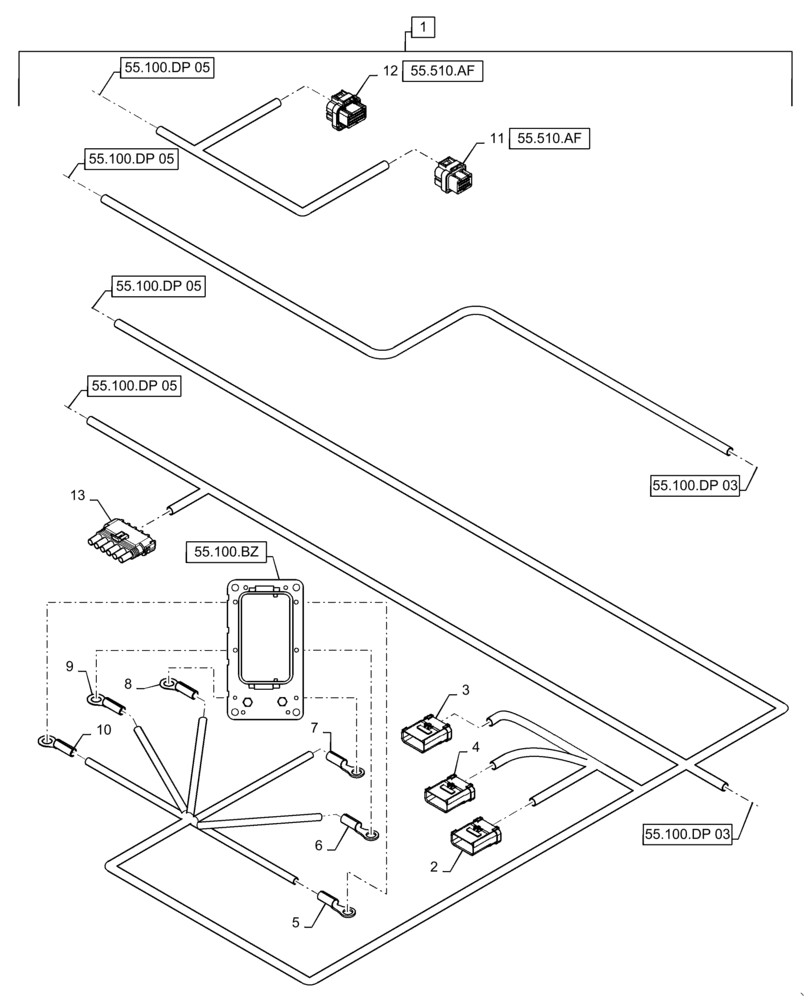

Запчасти Case IH WD1504 (55.100.DP[04]) - WIRE HARNESS & CONNECTOR, DRAPER, CD4 (CONT.) (55) - ELECTRICAL SYSTEMS

1

84572802

WIRE HARNESS

CD4, Incl 2 - 13 (Continued)

1шт.

2

84153389

FUSE HOLDER

F-050 Fuse, Engine Control Module, X-167

1шт.

2

84155772

Lock, F-050 Fuse, Engine Control Module, X-167

1шт.

2

84253575

FUSE

Fuse, 30A, F-050 Fuse, Engine Control Module, X-167

1шт.

2

87685669

Terminal, F-050 Fuse, Engine Control Module, X-167

2шт.

3

84153389

FUSE HOLDER

F-049 Fuse, Starter Circuit, X-162

1шт.

3

84155772

Lock, F-049 Fuse, Starter Circuit, X-162

1шт.

3

84518910

Fuse, 40A, F-049 Fuse, Starter Circuit, X-162

1шт.

3

87716256

Terminal, F-049 Fuse, Starter Circuit, X-162

2шт.

4

84153389

FUSE HOLDER

F-048 Fuse, HVAC, X-161

1шт.

4

84155772

Lock, F-048 Fuse, HVAC, X-161

1шт.

4

84518910

Fuse, 40A, F-048 Fuse, HVAC, X-161

1шт.

4

87716256

Terminal, F-048 Fuse, HVAC, X-161

2шт.

5

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Ring Terminal, X-051

2шт.

6

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Ring Terminal, X-050

2шт.

7

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Ring Terminal, X-049

2шт.

8

84401295

TERMINAL

Ring, X-054

2шт.

9

84401295

TERMINAL

Ring, X-055

2шт.

10

84398828

TERMINAL,3/8" Ring, SAE 8

Ring, X-160

1шт.

11

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

A-001 UCM, X-001

1шт.

11

82017048

CABLE TERMINAL

A-001 UCM, X-001

18шт.

12

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

A-001 UCM, X-002

1шт.

12

82017048

CABLE TERMINAL

A-001 UCM, X-002

24шт.

13

87039236

ELEC CONNECTOR

D-009 Diode Module, X-502

1шт.

13

87022597

MODULE

D-009 Diode Module, X-502

1шт.

13

87692856

CABLE TERMINAL

D-009 Diode Module, X-502

5шт.

13

87680701

SEAL

D-009 Diode Module, X-502

5шт.

13

87686742

PLUG

D-009 Diode Module, X-502

1шт.
