Запчасти Case IH WD1504 (55.100.DP[03]) - WIRE HARNESS & CONNECTOR, DRAPER, CD4 (CONT.) (55) - ELECTRICAL SYSTEMS

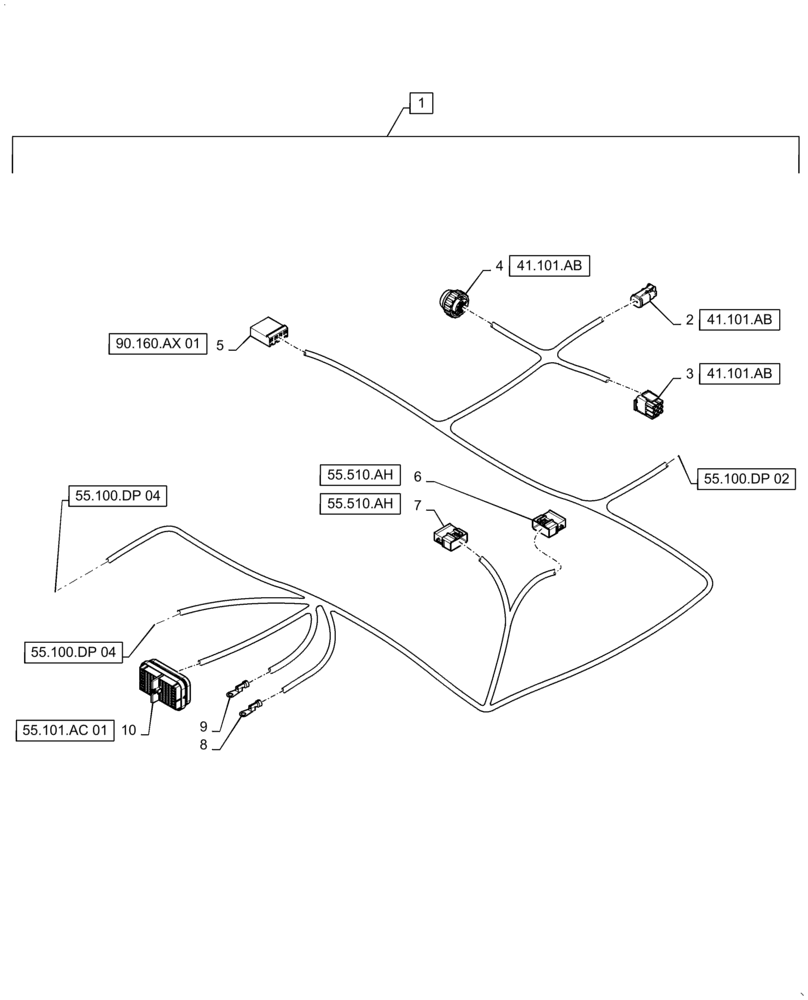

Схема запчастей Case IH WD1504 - (55.100.DP[03]) - WIRE HARNESS & CONNECTOR, DRAPER, CD4 (CONT.) (55) - ELECTRICAL SYSTEMS
55.100.dp 02
41.101.ab
41.101.ab
55.100.dp 04
7
8
2
55.510.ah
55.100.dp 04
41.101.ab
10
9
3
55.510.ah
5
6
1
90.160.ax 01
4
55.101.ac 01

Артикул

Название

Примечание

Количество

1

84572802

WIRE HARNESS

CD4, Incl 2 - 10 (Continued)

1шт.

2

87695582

ELEC CONNECTOR,Female, 2 Pole

B-003 Sensor, Steering Override, X-405

1шт.

2

84074638

LOCKING TAB,Locking Wedge, Green

Wedge, B-003 Sensor, Steering Override, X-405

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

B-003 Sensor, Steering Override, X-405

1шт.

3

87675201

ELEC CONNECTOR

S-024 Turn Indicator/Horn Switch, X-234

1шт.

3

82864512

TERMINAL

Terminal, S-024 Turn Indicator/Horn Switch, X-234

5шт.

4

87686681

ELEC CONNECTOR

CM To SC Pass-Thru, X-279

1шт.

4

87680775

TERMINAL

Terminal, CM To SC Pass-Thru, X-279

5шт.

5

84520005

ELEC CONNECTOR

Connector, A-007 Module, A-Pillar Display, X-370

1шт.

5

84526553

TERMINAL

Terminal, A-007 Module, A-Pillar Display, X-370

4шт.

6

84479011

ELEC CONNECTOR

Connector, CM To RM Pass-Thru, X-546

1шт.

6

84479031

TERMINAL

Terminal, CM To RM Pass-Thru, X-546

6шт.

7

84278759

ELEC CONNECTOR

Connector, CM To RM Pass-Thru, X-545

1шт.

7

84278800

TERMINAL

Terminal, CM To RM Pass-Thru, X-545

15шт.

8

84399575

TERMINAL,5/16" Ring, SAE 8

Terminal, GND-005 Left Cab (Under Instructer Seat), X-332

3шт.

9

84399575

TERMINAL,5/16" Ring, SAE 8

Terminal, GND-005 Left Cab (Under Instructer Seat), X-278

4шт.

10

84477026

ELEC CONNECTOR,Female, 128 Cavities

Connector, FM To CM Pass-Thru, X-044

1шт.

10

84477105

LOCKING TAB,Wedge Lock

Wedge, FM To CM Pass-Thru, X-044

2шт.

10

84477095

FLANGE

Flange, FM To CM Pass-Thru, X-044

1шт.

10

87695623

ELEC. TERMINAL PIN

FM To CM Pass-Thru, X-044

92шт.

10

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

FM To CM Pass-Thru, X-044

9шт.

10

87704524

ELEC CONNECTOR,Pin, Size 12

Terminal, FM To CM Pass-Thru, X-044

9шт.

Выбрано товаров: 22
