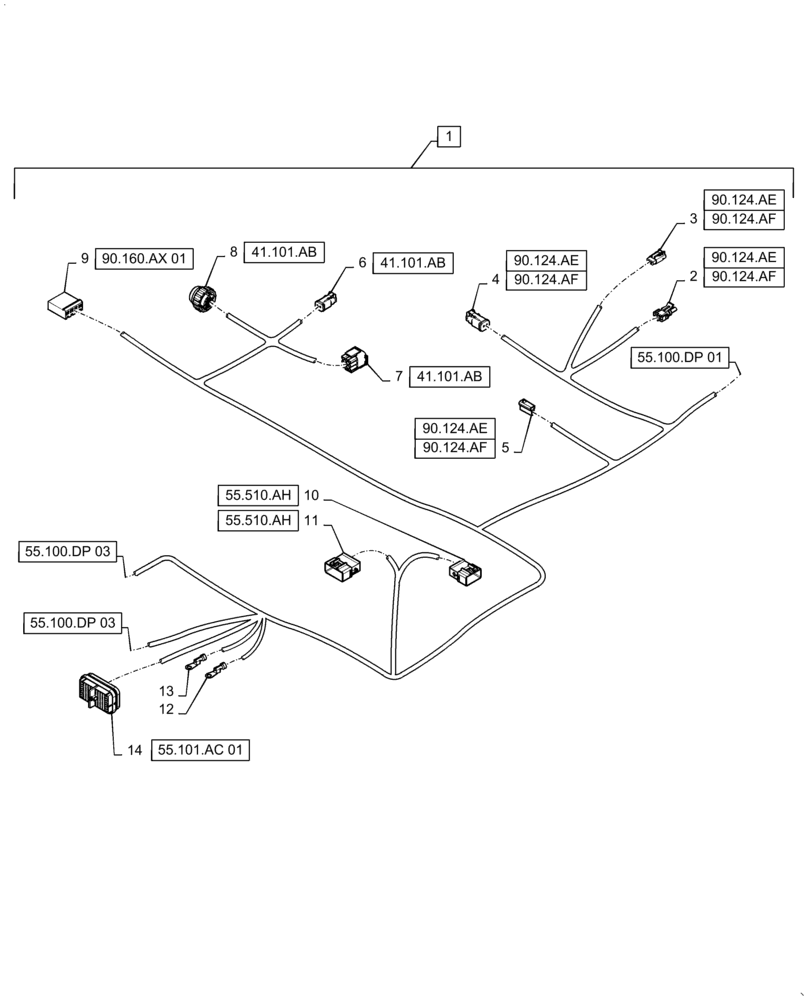

Запчасти Case IH WD1504 (55.100.DP[02]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, CM4 (CONT.) (55) - ELECTRICAL SYSTEMS

1

84572801

WIRE HARNESS

CM4, Incl 2 - 14 (Continued)

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

M-003 Seat Suspension Motor, X-187

1шт.

2

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

M-003 Seat Suspension Motor, X-187

2шт.

2

87680701

SEAL

M-003 Seat Suspension Motor, X-187

2шт.

3

87696093

ELEC CONNECTOR,Female, 2 Cavities

Z-015 Resistor, Seat Heat, X-022

1шт.

3

87696145

LOCKING TAB

Lock, Z-015 Resistor, Seat Heat, X-022

1шт.

3

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Z-015 Resistor, Seat Heat, X-022

2шт.

4

87695582

ELEC CONNECTOR,Female, 2 Pole

S-002 Seat Switch, X-109

1шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

Lock, S-002 Seat Switch, X-109

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

S-002 Seat Switch, X-109

2шт.

5

87697531

ELEC CONNECTOR,Female, 2 Cavities

J-006 Jack, Seat Base Power, X-182

1шт.

5

87697660

TERMINAL

J-006 Jack, Seat Base Power, X-182

2шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

B-003 Sensor, Steering Override, X-405

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

B-003 Sensor, Steering Override, X-405

2шт.

7

87675201

ELEC CONNECTOR

S-024 Turn Indicator/Horn Switch, X-234

1шт.

7

82864512

TERMINAL

S-024 Turn Indicator/Horn Switch, X-234

5шт.

8

87686681

ELEC CONNECTOR

CM To SC Pass Thru, X-279

1шт.

8

87680775

TERMINAL

CM To SC Pass Thru, X-279

5шт.

9

84520005

ELEC CONNECTOR

A-007 Module, A-Pillar Display, X-370

1шт.

9

84526553

TERMINAL

A-007 Module, A-Pillar Display, X-370

4шт.

10

84479011

ELEC CONNECTOR

CM To RM Pass Thru, X-546

1шт.

10

84479031

TERMINAL

CM To RM Pass Thru, X-546

6шт.

11

84278759

ELEC CONNECTOR

CM To RM Pass Thru, X-545

1шт.

11

84278800

TERMINAL

CM To RM Pass Thru, X-545

15шт.

12

84399575

TERMINAL,5/16" Ring, SAE 8

GND-005 Left Cab (Under Instructor Seat), X-332

3шт.

13

84399575

TERMINAL,5/16" Ring, SAE 8

GND-005 Left Cab (Under Instructor Seat), X-278

3шт.

14

84477026

ELEC CONNECTOR,Female, 128 Cavities

FM To CM Pass Thru, X-044

1шт.

14

84477105

LOCKING TAB,Wedge Lock

FM To CM Pass Thru, X-044

2шт.

14

84477095

FLANGE

FM To CM Pass Thru, X-044

1шт.

14

87695623

ELEC. TERMINAL PIN

FM To CM Pass Thru, X-044

72шт.

14

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

FM To CM Pass Thru, X-044

8шт.

14

87704524

ELEC CONNECTOR,Pin, Size 12

FM To CM Pass Thru, X-044

9шт.
