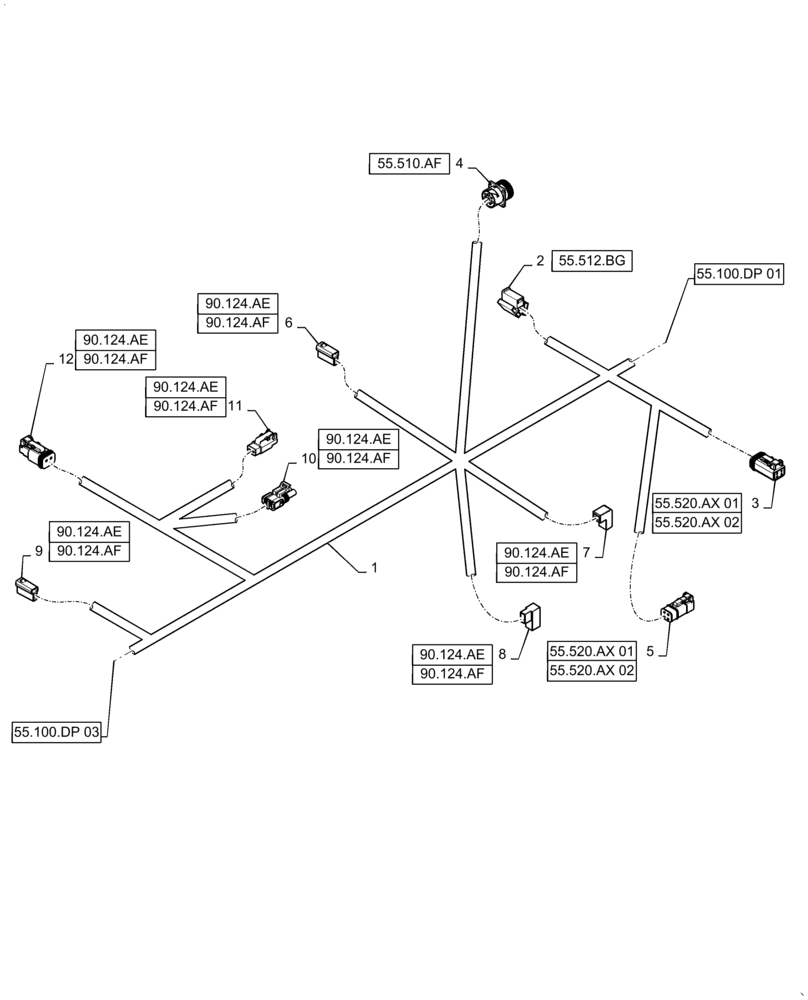

Запчасти Case IH WD1504 (55.100.DP[02]) - WIRE HARNESS & CONNECTOR, DRAPER, CD4 (CONT.) (55) - ELECTRICAL SYSTEMS

1

84572802

WIRE HARNESS

CD4, Incl 2 - 12 (Continued)

1шт.

2

87693713

ELEC CONNECTOR,Female, 6 Cavities

S-004 Key Switch, X-147

1шт.

2

87709400

ELEC. TERMINAL PIN

S-004 Key Switch, X-147

4шт.

3

87694153

CONTACT HOUSING,Female, 4 Cavities

CM To DA Option, X-028

1шт.

3

84074640

LOCKING TAB,Wedge Lock

CM To DA Option, X-028

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

CM To DA Option, X-028

3шт.

4

87706943

ELEC CONNECTOR

Connector, Diagnostics Connector, X-043

1шт.

4

87695623

ELEC. TERMINAL PIN

Diagnostics Connector, X-043

4шт.

5

87696138

ELEC CONNECTOR

A-002 Display Module (4 Line), X-369

1шт.

5

87696149

ELEC CONNECTOR

Wedge, A-002 Display Module (4 Line), X-369

1шт.

5

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

A-002 Display Module (4 Line), X-369

4шт.

6

87697531

ELEC CONNECTOR,Female, 2 Cavities

Connector, J-003 Seat Pod Power Jack, X-252

1шт.

6

87697660

TERMINAL

J-003 Seat Pod Power Jack, X-252

2шт.

7

84120014

ELEC CONNECTOR

Connector, J-011 Power Jack, X-482

1шт.

8

84120017

ELEC CONNECTOR

Connector, J-011 Power Jack, X-483

1шт.

8

371230-AL02

TERMINAL

Terminal, J-011 Power Jack, X-483

1шт.

9

87697531

ELEC CONNECTOR,Female, 2 Cavities

Connector, J-006 Jack, Seat Base Power, X-182

1шт.

9

87697660

TERMINAL

J-006 Jack, Seat Base Power, X-182

2шт.

10

87692855

CONTACT HOUSING,Male, 2 Cavities

M-003 Seat Suspension Motor, X-187

1шт.

10

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

M-003 Seat Suspension Motor, X-187

2шт.

10

87680701

SEAL

M-003 Seat Suspension Motor, X-187

2шт.

11

87696093

ELEC CONNECTOR,Female, 2 Cavities

Z-015 Resistor, Seat Heat, X-022

1шт.

11

87696145

LOCKING TAB

Plug, Z-015 Resistor, Seat Heat, X-022

1шт.

11

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Z-015 Resistor, Seat Heat, X-022

2шт.

12

87711966

PLUG

Connector, S-002 Seat Switch, X-109

1шт.

12

87712180

ELEC CONNECTOR

Wedge, S-002 Seat Switch, X-109

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

S-002 Seat Switch, X-109

2шт.
