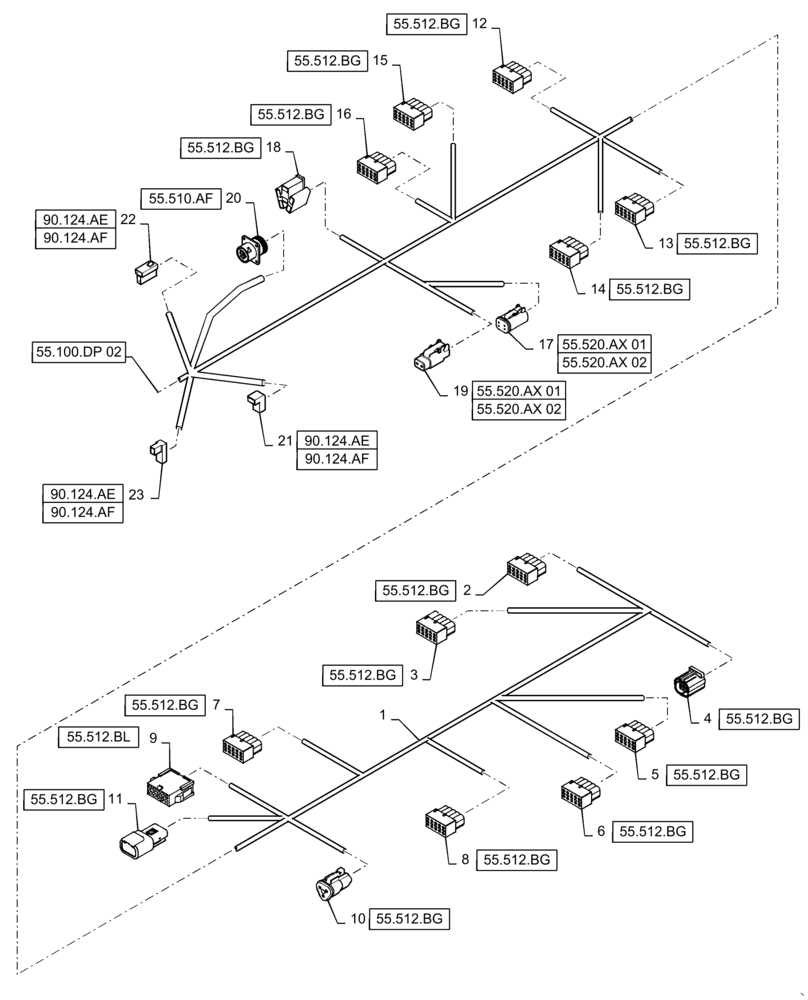

Запчасти Case IH WD1504 (55.100.DP[01]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, CM4 (55) - ELECTRICAL SYSTEMS

1

84572801

WIRE HARNESS

CM4, Incl 2 - 23

1шт.

2

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-052 Header PTO Switch (Forward/Reverse), X-108

1шт.

2

87691478

SEAL

S-052 Header PTO Switch (Forward/Reverse), X-108

3шт.

2

87694668

ELEC CONNECTOR

Terminal, S-052 Header PTO Switch (Forward/Reverse), X-108

2шт.

3

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-028 Park Brake Switch, X-076

1шт.

3

87691478

SEAL

S-028 Park Brake Switch, X-076

5шт.

3

87694668

ELEC CONNECTOR

Terminal, S-028 Park Brake Switch, X-076

5шт.

4

82002274

MULTIPOLE CONNECTOR,Female, 6 Pole

S-017 Switch, PTO Engage, X-107

1шт.

4

87690996

SPACER

S-017 Switch, PTO Engage, X-107

1шт.

4

87680211

RUBBER SEAL

S-017 Switch, PTO Engage, X-107

1шт.

4

87680685

CABLE TERMINAL

S-017 Switch, PTO Engage, X-107

4шт.

4

82863648

SEAL

S-017 Switch, PTO Engage, X-107

4шт.

5

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-013 Switch, Header Speed, X-110

1шт.

5

87694668

ELEC CONNECTOR

Terminal, S-013 Switch, Header Speed, X-110

3шт.

5

87691478

SEAL

S-013 Switch, Header Speed, X-110

3шт.

6

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-027 Reel Speed Mode Switch (Manual/Auto), X-082

1шт.

6

87694668

ELEC CONNECTOR

Terminal, S-027 Reel Speed Mode Switch (Manual/Auto), X-082

3шт.

6

87691478

SEAL

S-027 Reel Speed Mode Switch (Manual/Auto), X-082

3шт.

7

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-054 Switch, Windrow Shields, X-134

1шт.

7

87694668

ELEC CONNECTOR

Terminal, S-054 Switch, Windrow Shields, X-134

3шт.

7

87691478

SEAL

S-054 Switch, Windrow Shields, X-134

3шт.

8

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-100 Switch, Ground Speed Range, X-081

1шт.

8

87694668

ELEC CONNECTOR

Terminal, S-100 Switch, Ground Speed Range, X-081

4шт.

8

87691478

SEAL

S-100 Switch, Ground Speed Range, X-081

4шт.

9

87694699

ELEC CONNECTOR

S-049 Multi-Function Handle, X-066

1шт.

9

84219725

TERMINAL

S-049 Multi-Function Handle, X-066

1шт.

9

87694716

TERMINAL

S-049 Multi-Function Handle, X-066

4шт.

10

87695580

ELEC CONNECTOR,Female, 3 Pole

B-054 FNR Handle Position Sensor, X-379

1шт.

10

84074639

LOCKING TAB,Wedge Lock

Lock, B-054 FNR Handle Position Sensor, X-379

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

B-054 FNR Handle Position Sensor, X-379

3шт.

11

84817101

ELEC CONNECTOR,Male, 16 - 20 SAE

S-003 FNR Neutral Switch, X-074

1шт.

11

84817102

LOCKING TAB,Wedge Lock, 3-Pin

S-003 FNR Neutral Switch, X-074

1шт.

11

87696141

TERMINAL

S-003 FNR Neutral Switch, X-074

3шт.

12

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-005 Switch, Return To Cut, X-170

1шт.

12

87694668

ELEC CONNECTOR

Terminal, S-005 Switch, Return To Cut, X-170

3шт.

12

87691478

SEAL

S-005 Switch, Return To Cut, X-170

3шт.

13

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-014 Right Header Trim Switch (Increase/Decrease), X-087

1шт.

13

87691478

SEAL

S-014 Right Header Trim Switch (Increase/Decrease), X-087

4шт.

13

87694668

ELEC CONNECTOR

Terminal, S-014 Right Header Trim Switch (Increase/Decrease), X-087

3шт.

14

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-102 Switch, Autoguidance Enable, X-403

1шт.

14

87694668

ELEC CONNECTOR

Terminal, S-102 Switch, Autoguidance Enable, X-403

2шт.

14

87691478

SEAL

S-102 Switch, Autoguidance Enable, X-403

2шт.

15

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-071 Throttle Switch (Increase/Decrease), X-494

1шт.

15

87691478

SEAL

S-071 Throttle Switch (Increase/Decrease), X-494

3шт.

15

87694668

ELEC CONNECTOR

Terminal, S-071 Throttle Switch (Increase/Decrease), X-494

3шт.

16

84159859

ELEC CONNECTOR,Female, 10 Cavities

E-002 Lamp, Preheat, X-172

1шт.

16

87691478

SEAL

E-002 Lamp, Preheat, X-172

2шт.

16

87694668

ELEC CONNECTOR

Terminal, E-002 Lamp, Preheat, X-172

2шт.

17

87694153

CONTACT HOUSING,Female, 4 Cavities

CM TO DA Option, X-028

1шт.

17

84074640

LOCKING TAB,Wedge Lock

CM TO DA Option, X-028

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

CM TO DA Option, X-028

3шт.

18

87693713

ELEC CONNECTOR,Female, 6 Cavities

S-004 Key Switch, X-147

1шт.

18

87709400

ELEC. TERMINAL PIN

S-004 Key Switch, X-147

4шт.

19

87696138

ELEC CONNECTOR

A-002 Display Module (4 Line), X-369

1шт.

19

87696149

ELEC CONNECTOR

Lock, A-002 Display Module (4 Line), X-369

1шт.

19

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

A-002 Display Module (4 Line), X-369

4шт.

20

87706943

ELEC CONNECTOR

Diagnostic Connector, X-043

1шт.

20

87695623

ELEC. TERMINAL PIN

Diagnostic Connector, X-043

4шт.

21

84120014

ELEC CONNECTOR

J-011 Power Jack, X-482

1шт.

22

87697531

ELEC CONNECTOR,Female, 2 Cavities

J-003 Seat POD Power Jack, X-252

1шт.

22

87697660

TERMINAL

J-003 Seat POD Power Jack, X-252

2шт.

23

84120017

ELEC CONNECTOR

J-011 Power Jack, X-483

1шт.

23

371230-AL02

TERMINAL

Terminal, J-011 Power Jack, X-483

1шт.
