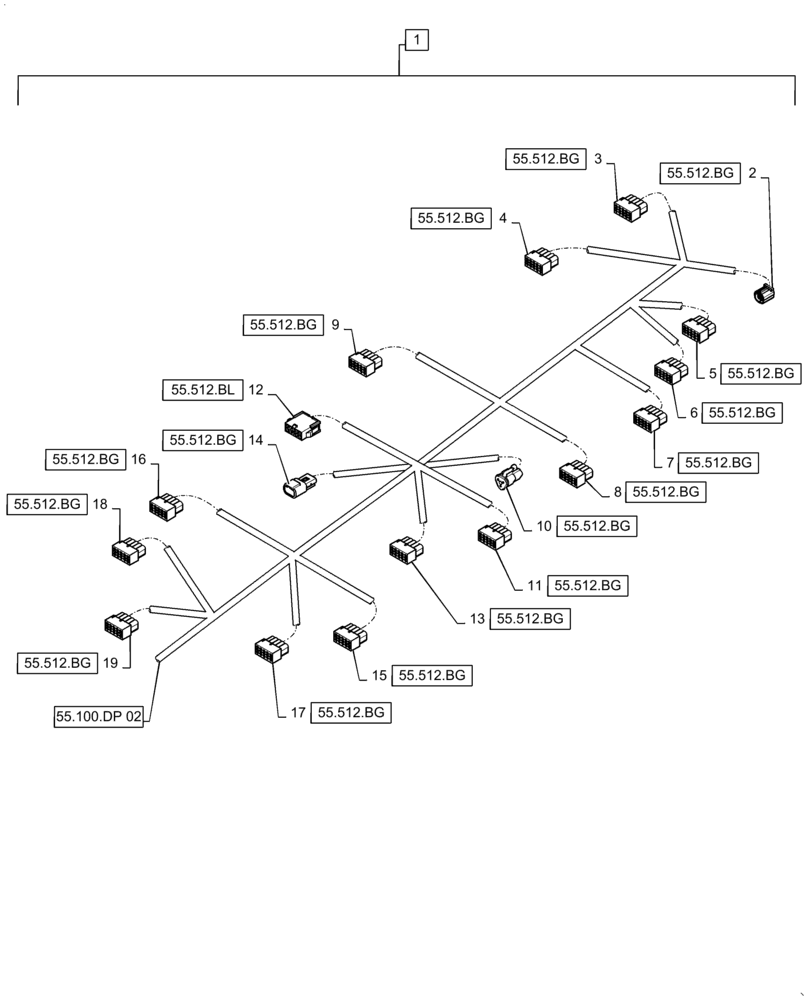

Запчасти Case IH WD1504 (55.100.DP[01]) - WIRE HARNESS & CONNECTOR, DRAPER, CD4 (55) - ELECTRICAL SYSTEMS

1

84572802

WIRE HARNESS

CD4, Incl 2 - 19

1шт.

2

82002274

MULTIPOLE CONNECTOR,Female, 6 Pole

S-017 Switch, PTO Engage, X-107

1шт.

2

87690996

SPACER

S-017 Switch, PTO Engage, X-107

1шт.

2

87680211

RUBBER SEAL

S-017 Switch, PTO Engage, X-107

1шт.

2

87680685

CABLE TERMINAL

S-017 Switch, PTO Engage, X-107

4шт.

2

82863648

SEAL

S-017 Switch, PTO Engage, X-107

4шт.

3

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-052 Header PTO Switch (Forward/Reverse), X-108

1шт.

3

87694668

ELEC CONNECTOR

Terminal, S-052 Header PTO Switch (Forward/Reverse), X-108

2шт.

3

87691478

SEAL

S-052 Header PTO Switch (Forward/Reverse), X-108

2шт.

4

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-076 Park Brake Switch, X-076

1шт.

4

87694668

ELEC CONNECTOR

Terminal, S-076 Park Brake Switch, X-076

5шт.

4

87691478

SEAL

S-076 Park Brake Switch, X-076

5шт.

5

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-013 Switch, Header Speed, X-110

1шт.

5

87694668

ELEC CONNECTOR

Terminal, S-013 Switch, Header Speed, X-110

3шт.

5

87691478

SEAL

S-013 Switch, Header Speed, X-110

3шт.

6

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-027 Reel Speed Mode Switch (Manual/Auto), X-082

1шт.

6

87694668

ELEC CONNECTOR

Terminal, S-027 Reel Speed Mode Switch (Manual/Auto), X-082

3шт.

6

87691478

SEAL

S-027 Reel Speed Mode Switch (Manual/Auto), X-082

3шт.

7

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-100 Switch, Ground Speed Range, X-081

1шт.

7

87694668

ELEC CONNECTOR

Terminal, S-100 Switch, Ground Speed Range, X-081

4шт.

7

87691478

SEAL

S-100 Switch, Ground Speed Range, X-081

4шт.

8

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-050 Draper Conveyor Speed Switch, X-121

1шт.

8

87694668

ELEC CONNECTOR

Terminal, S-050 Draper Conveyor Speed Switch, X-121

4шт.

8

87691478

SEAL

S-050 Draper Conveyor Speed Switch, X-121

4шт.

9

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-054 Switch, Windrow Shields, X-134

1шт.

9

87694668

ELEC CONNECTOR

Terminal, S-054 Switch, Windrow Shields, X-134

3шт.

9

87691478

SEAL

S-054 Switch, Windrow Shields, X-134

3шт.

10

87695580

ELEC CONNECTOR,Female, 3 Pole

B-059 FNR Handle Position Sensor, X-379

1шт.

10

84074639

LOCKING TAB,Wedge Lock

Wedge, B-059 FNR Handle Position Sensor, X-379

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

B-059 FNR Handle Position Sensor, X-379

3шт.

11

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-018 Switch, Header Trim, Left, X-086

1шт.

11

87694668

ELEC CONNECTOR

Terminal, S-018 Switch, Header Trim, Left, X-086

3шт.

11

87691478

SEAL

S-018 Switch, Header Trim, Left, X-086

3шт.

12

87694699

ELEC CONNECTOR

Connector, S-049 Multi-Function Handle, X-066

1шт.

12

87694716

TERMINAL

Terminal, S-049 Multi-Function Handle, X-066

4шт.

12

84219725

TERMINAL

Terminal, S-049 Multi-Function Handle, X-066

1шт.

13

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-021 Deck Shift Switch, X-120

1шт.

13

87694668

ELEC CONNECTOR

Terminal, S-021 Deck Shift Switch, X-120

3шт.

13

87691478

SEAL

S-021 Deck Shift Switch, X-120

3шт.

14

84817101

ELEC CONNECTOR,Male, 16 - 20 SAE

S-003 FNR Neutral Switch, X-074

1шт.

14

84817102

LOCKING TAB,Wedge Lock, 3-Pin

S-003 FNR Neutral Switch, X-074

1шт.

14

87696141

TERMINAL

S-003 FNR Neutral Switch, X-074

3шт.

15

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-014 Right Header Trim Switch (Increase/Decrease), X-087

1шт.

15

87694668

ELEC CONNECTOR

Terminal, S-014 Right Header Trim Switch (Increase/Decrease), X-087

3шт.

15

87691478

SEAL

S-014 Right Header Trim Switch (Increase/Decrease), X-087

3шт.

16

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-005 Switch, Return To Cut, X-170

1шт.

16

87694668

ELEC CONNECTOR

Terminal, S-005 Switch, Return To Cut, X-170

3шт.

16

87691478

SEAL

S-005 Switch, Return To Cut, X-170

3шт.

17

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-102 Switch, Autoguidance Enable, X-403

1шт.

17

87694668

ELEC CONNECTOR

Terminal, S-102 Switch, Autoguidance Enable, X-403

2шт.

17

87691478

SEAL

S-102 Switch, Autoguidance Enable, X-403

2шт.

18

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-071 Throttle Switch (Increase/Decrease), X-494

1шт.

18

87694668

ELEC CONNECTOR

Terminal, S-071 Throttle Switch (Increase/Decrease), X-494

3шт.

18

87691478

SEAL

S-071 Throttle Switch (Increase/Decrease), X-494

3шт.

19

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-055 Switch, Preheat, X-151

1шт.

19

87694668

ELEC CONNECTOR

Terminal, S-055 Switch, Preheat, X-151

2шт.

19

87691478

SEAL

S-055 Switch, Preheat, X-151

2шт.
