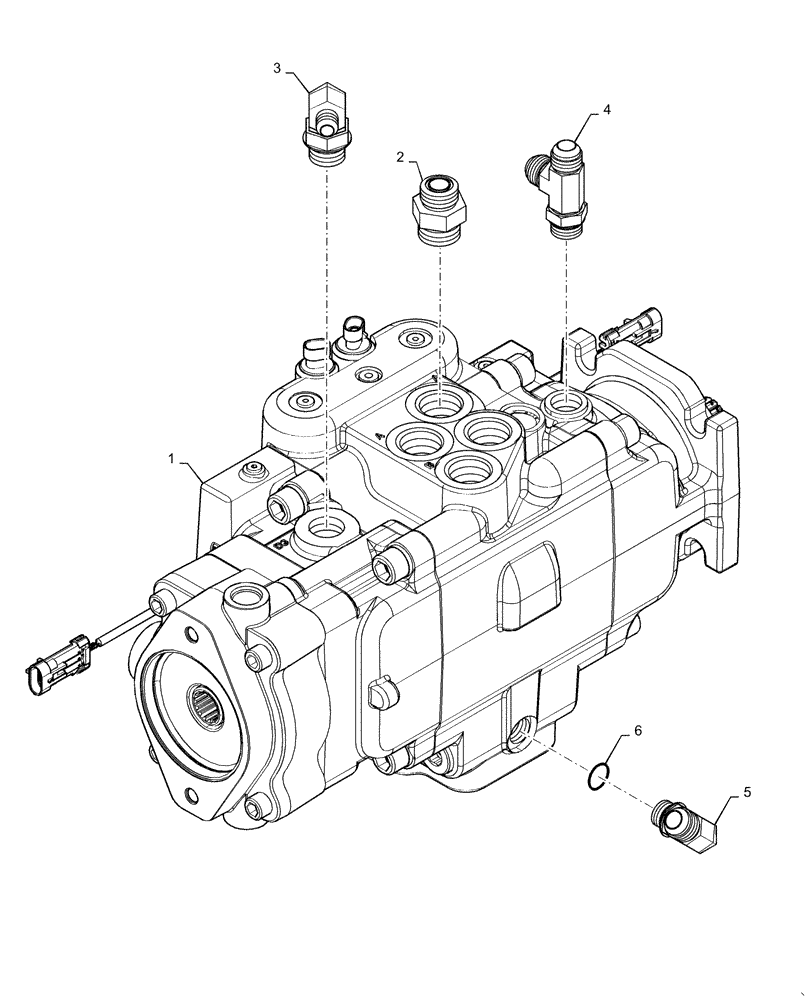

Запчасти Case IH WD1504 (35.910.AD) - HYDRAULIC PUMP, GEARBOX, DRAPER 4 CYLINDER (35) - HYDRAULIC SYSTEMS

1

84598647

HYDRAULIC PUMP

49/49 Tandem Pump, Draper 4 Cylinder

1шт.

2

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

3/4 ORFS-ORB 1.0

4шт.

3

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

4

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

5

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 6

1шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
