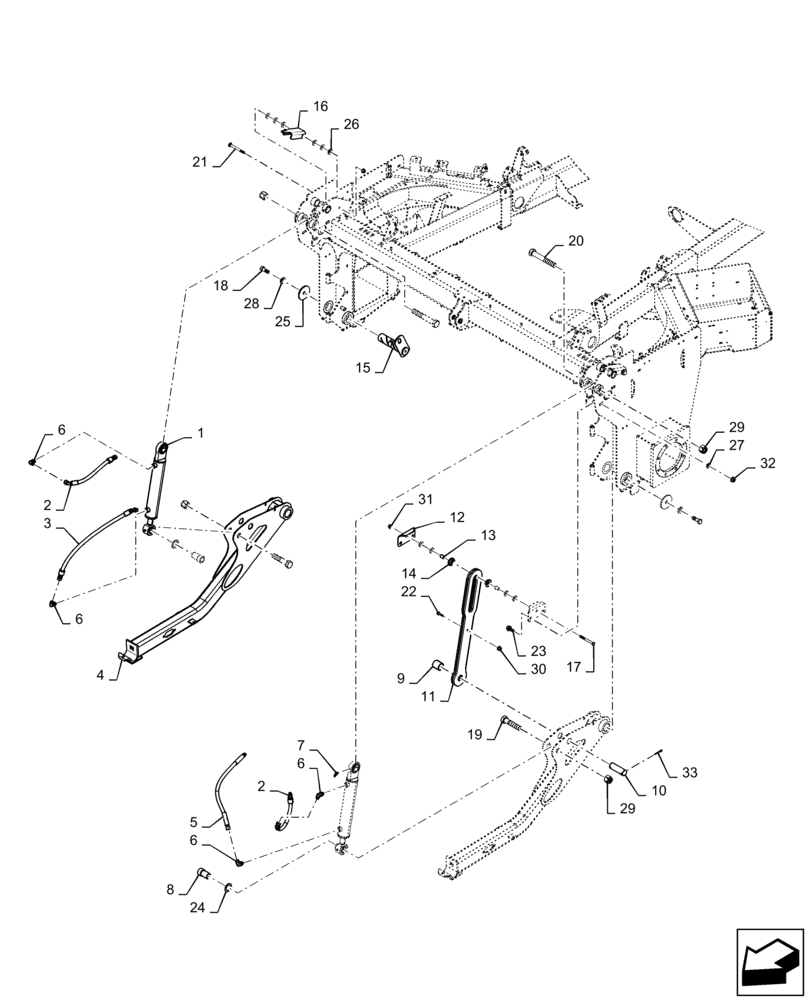

Запчасти Case IH WD1504 (35.905.AB[04]) - HYDRAULIC SYSTEM, HEADER, LIFT, NON DRAPER (4 CYL) (35) - HYDRAULIC SYSTEMS

1

84377917

HYDRAULIC CYLINDER,Double Acting, 31.8mm Rod, 266.7mm Stroke

2шт.

2

47395552

HYDRAULIC HOSE

RH, Lift Cap

2шт.

3

47435722

HYDRAULIC HOSE

RH, Lift, 4-Cyl Non Draper

1шт.

4

47458660

LIFT ARM

WA CNH DK GR, Serial Range: -YGG677503

2шт.

4

47458659

LIFT ARM

WA AG RED, Serial Range: -YGG677503

2шт.

4

48021134

ARM

Dark Grey, Non Draper, Start Serial: YGG677504

2шт.

5

47567886

HYDRAULIC HOSE

Lift Rod, End

1шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

7

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

8

86974236

SPACER

2шт.

9

86974360

SPACER

2шт.

10

87011404

PIN,38.1mm OD x 117.4mm L

2шт.

11

87039603

LINK

4шт.

11

87039602

LINK

4шт.

12

87044438

PLATE

4шт.

13

213436

SPACER

4шт.

14

86623463

SPACER

4шт.

15

86582064

PIN,50.6mm OD x 233.5mm L

2шт.

16

87044413

CHANNEL

2шт.

17

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

2шт.

18

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

19

86631897

BOLT

1 1/8-7X5.00 GR 5 ZND

2шт.

20

86619810

BOLT,Hex, 1 1/8" - 7 x 7 1/2", Gr 5

2шт.

21

280856

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5", Gr 5

2шт.

22

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

23

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

8шт.

24

191823

WASHER

1.515X2.25

2шт.

25

86502976

WASHER

.781X3.75X.250

2шт.

26

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

20шт.

27

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

28

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

29

86538215

NUT,1 1/8"-7, GB

2шт.

30

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

31

86521610

FLANGE NUT,Flg, 1/2"-13

4шт.

32

86521608

FLANGE NUT,Flg, 5/8"-11, G5

8шт.

33

87400

COTTER PIN,3/16" x 2"

4шт.
