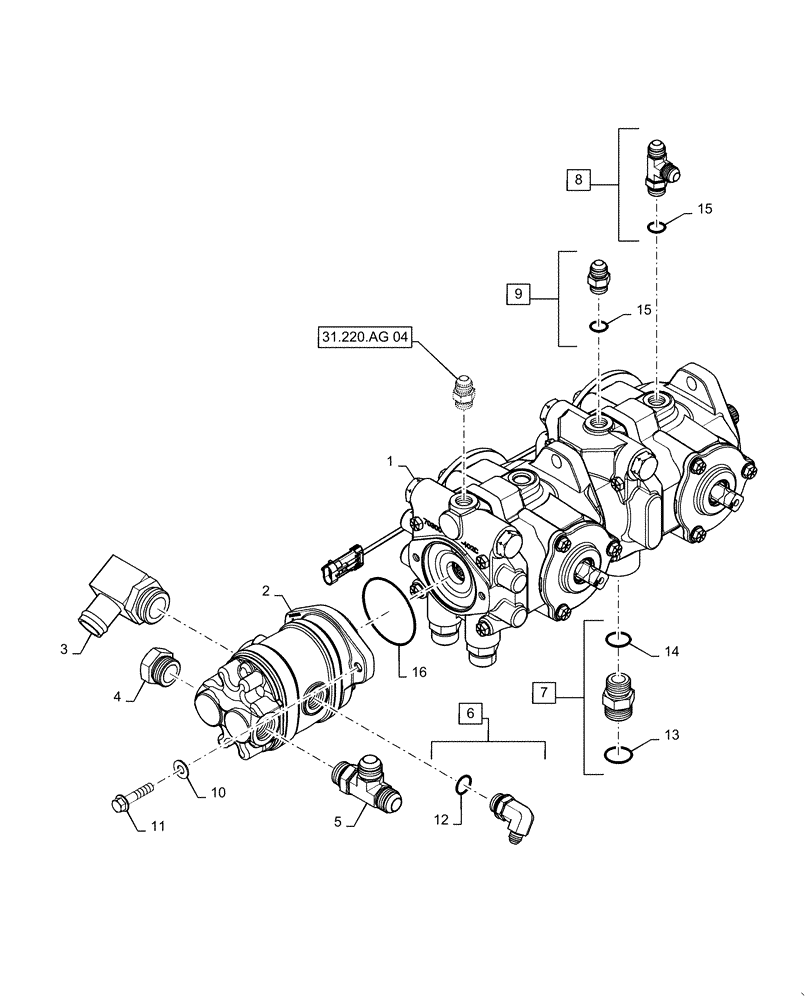

Запчасти Case IH WD1504 (35.602.BH[04]) - HYDROSTATIC PUMP, DRIVE, 4 CYLINDER NON-DRAPER, BSN YGG677500 (35) - HYDRAULIC SYSTEMS

1

84598637

HYDRAULIC PUMP

Tandem, 49.2/49.2 15 Tooth

1шт.

2

84587629

HYDRAULIC PUMP

Gear, Double Charge Lift

1шт.

2

47726064

SEAL KIT

1шт.

2

512071

SEAL,19mm ID x 34.98mm OD x 6.73mm Thk

1шт.

2

47909452

BOLT

8шт.

3

217-222

FITTING,90 Degree Elbow, 1-1/2" Hose Barb x 1-5/16" - 12 Male ORB

Stem

1шт.

4

273916

PLUG,Hex, 1-5/16" - 12 ORB

1шт.

5

87622774

TEE,-12, Male 37 Degree Fl, 1 1/16"-12, Adj Str Thd OR, Br

Tee

1шт.

6

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 12

1шт.

7

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 13 - 14

4шт.

8

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

Incl 15

1шт.

9

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 15

2шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

11

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl with 6

1шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl with 7

4шт.

14

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Incl with 7

4шт.

15

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl with 8, 9

1шт.

16

272310

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.
