Запчасти Case IH WD1504 (35.415.AD[01]) - HYDRAULIC LIFT ASSY (35) - HYDRAULIC SYSTEMS

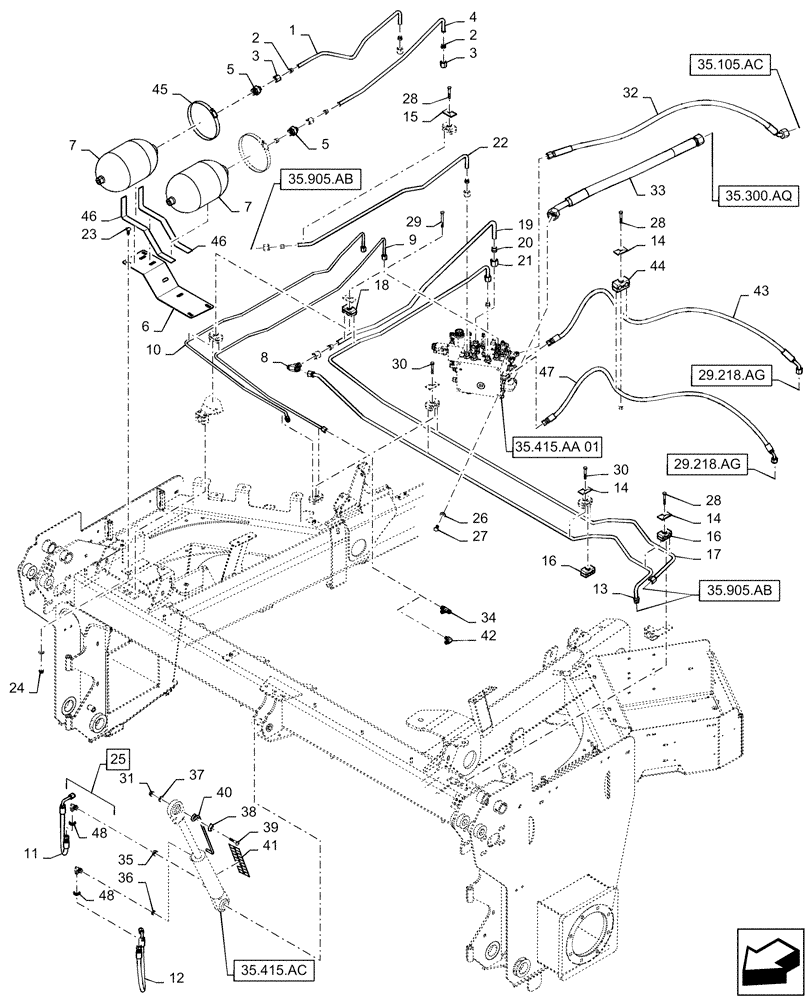

Схема запчастей Case IH WD1504 - (35.415.AD[01]) - HYDRAULIC LIFT ASSY (35) - HYDRAULIC SYSTEMS
9
20
35.905.ab
17
46
35.415.aa 01
48
34
36
1
45
48
24
41
25
31
29
30
14
28
8
26
29.218.ag
14
43
5
35.415.ac
28
47
28
11
3
18
38
27
44
15
3
35.105.ac
21
35.300.aq
32
22
33
35.905.ab
46
6
12
42
5
35
39
29.218.ag
2
30
16
7
16
10
40
14
4
2
13
23
37
7
19

Артикул

Название

Примечание

Количество

1

47380595

HYD TUBE

RAC

1шт.

2

235671

SLEEVE,37 Degree, 1/2" Tube

5шт.

3

129428

TUBE NUT,37 Degree, 3/4"-16, Type B

5шт.

4

47380591

HYD TUBE

LAC

1шт.

5

87329794

FITTING

1/2 x 3/4 ORB

2шт.

6

47600262

BRACKET

Accumulator, Dark Gray

1шт.

7

84221534

ACCUMULATOR

Diaphragm, 1 Gallon

2шт.

8

87032909

HYD CONNECTOR

Tee

1шт.

9

47380599

HYD TUBE

Tilt Cap

1шт.

10

47380597

HYD TUBE

Tilt Rod

1шт.

11

47395550

HYDRAULIC HOSE

Tilt Cap, Serial Range: -YFG676506

1шт.

11

47842003

HYDRAULIC HOSE

Tilt Cap, Start Serial: YFG676507

1шт.

12

47395551

HYDRAULIC HOSE

Tilt

1шт.

13

47567928

TUBE

LH Lift Cap

1шт.

14

384870A1

PLATE

Hose Clamp Cover

6шт.

15

87705202

CLAMP,12.7mm OD Tube x 12.7mm OD Tube

Two Hole, Ribbed, 12.7MM

4шт.

16

87000148

CLAMP

Two Hole, Ribbed, 9.52MM

3шт.

17

47567980

TUBE

LH Lift

1шт.

18

87451102

CLAMP

Two Hole, Ribbed, 15.87MM-12.7MM

1шт.

19

47380609

HYD TUBE

Lift Cap

1шт.

20

235672

SLEEVE,37 Degree, 5/8" Tube

2шт.

21

9626918

TUBE NUT,37 Degree, 7/8"-14, Type B

2шт.

22

47380606

HYD TUBE

RH Lift

1шт.

23

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

24

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

25

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 48

2шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

27

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

28

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

3шт.

29

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

1шт.

30

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

31

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

32

47434863

HYDRAULIC HOSE

Lift Manifold Charge Supply

1шт.

33

47586083

HOSE

Lift Manifold Return to Tank

1шт.

34

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

Draper Only

1шт.

35

261066

ORIFICE,9/16" - 18, 0.813" Orifice

Plate

1шт.

36

87029579

ORIFICE

1шт.

37

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

38

772028

CLIP

Tine

1шт.

39

86508771

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 3/4", Gr 5

1шт.

40

84221124

ROD

Tilt Indicator

1шт.

41

84221213

DECAL

Tilt Indicator 0-8

1шт.

42

241074

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

Non-Draper Only

1шт.

43

84597016

HYDRAULIC HOSE

RH Lift Pump

1шт.

44

6560407

CLAMP,2 Hole, 18mm ID

Two Hole, Smooth, 18.0MM

1шт.

45

86633350

HOSE CLAMP,159mm - 181mm

2шт.

46

290322

HAMMER

Sealing Strip (FT)

1шт.

47

84597014

HOSE

LH Lift Pump

1шт.

48

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Not Shown

1шт.

Выбрано товаров: 49
