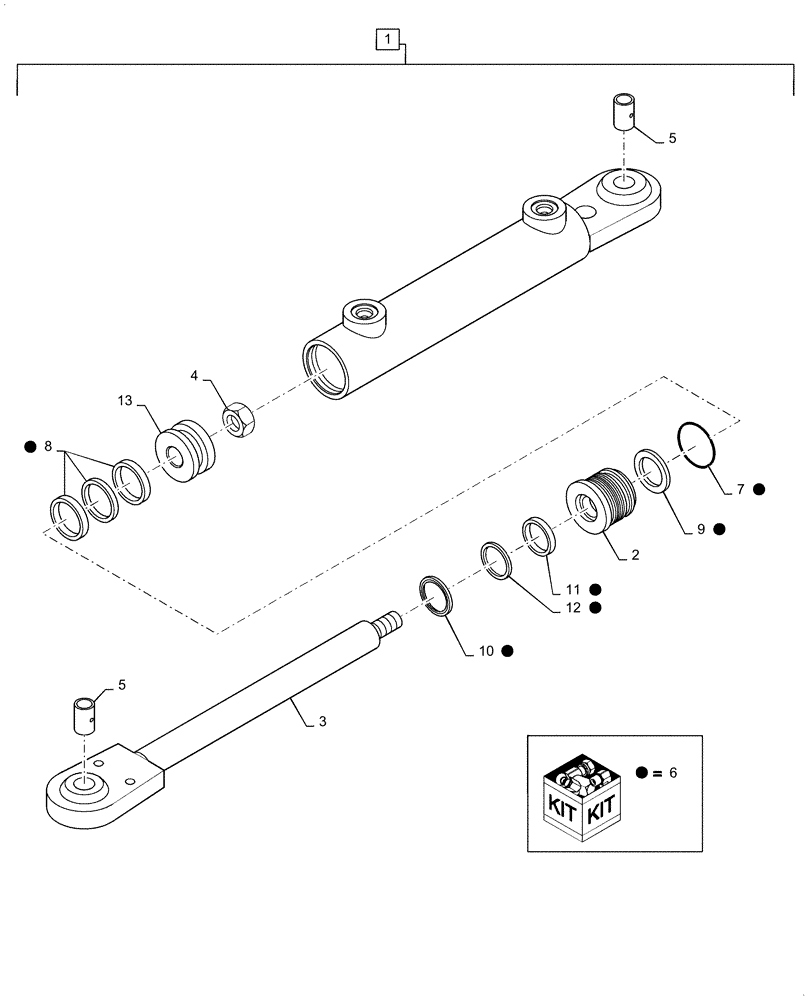

Запчасти Case IH WD1504 (35.415.AC[02]) - LIFT CYLINDER, NON-DRAPER (35) - HYDRAULIC SYSTEMS

1

84316402

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 101.6mm Stroke

Incl 2 - 12

1шт.

2

87593872

CYLINDER END CAP

1шт.

3

84316420

ROD

Cylinder

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

87580646

BUSHING,19.05mm ID x 34.92mm OD x 34.92mm L

Cylinder Ends

1шт.

6

87593873

SEAL KIT

Incl 7 - 12

1шт.

7

235782

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

Incl with 6

1шт.

8

86553483

SEAL

Piston, Incl with 6

1шт.

9

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Washer, Incl with 6

1шт.

10

NSS

NOT SOLD SEPARAT

Wiper, Incl with 6

1шт.

11

80592790

SEAL,28.7mm ID x 34.8mm OD x 6.35mm Thk

Cylinder, Incl with 6

1шт.

12

NSS

NOT SOLD SEPARAT

Back-Up Washer, Incl with 6

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.
