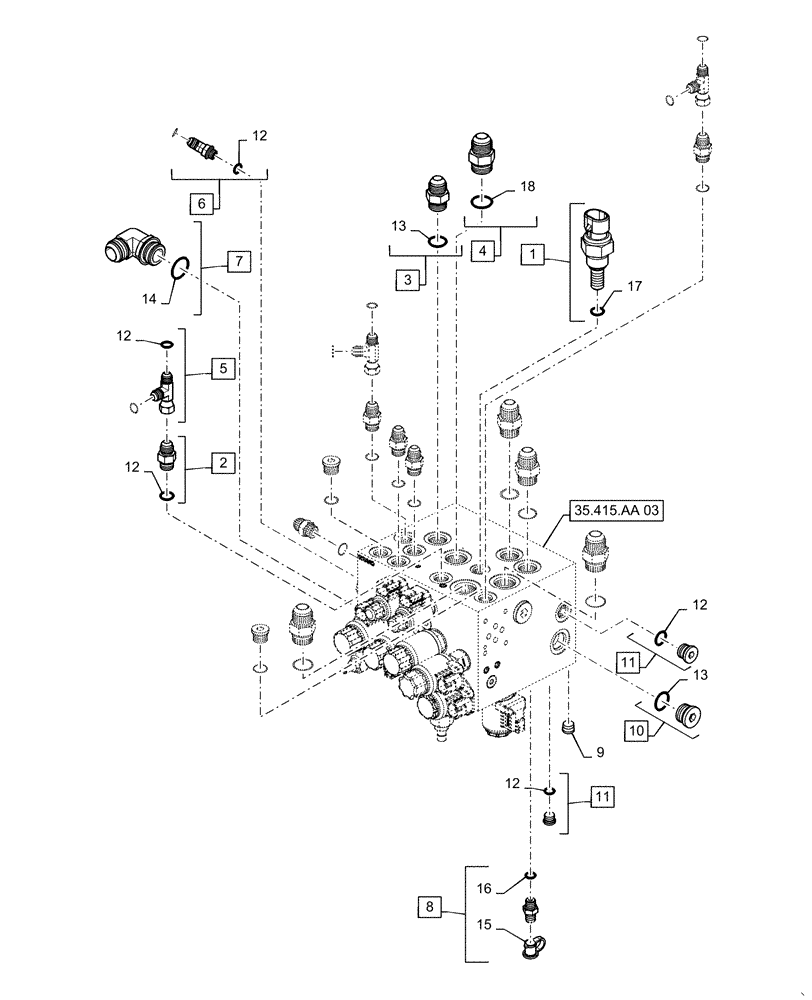

Запчасти Case IH WD1504 (35.415.AA[01]) - FLOAT MANIFOLD VALVE, NON-DRAPER (35) - HYDRAULIC SYSTEMS

1

86571273

SENSOR

Temperature, Incl 17

1шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 12

4шт.

3

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 13

4шт.

4

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

Incl 18

3шт.

5

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 12

2шт.

6

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl 12

1шт.

7

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 14

1шт.

8

86502603

COUPLING

Male, Incl 15 - 16

1шт.

9

236622

PLUG,3/8" - 18 NPT

Headless Hex Socket

1шт.

10

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Incl 13

1шт.

11

9625178

PLUG,9/16" - 18 ORB

Incl 12

3шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl with 2, 5 - 6, 11

17шт.

13

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl with 3, 10

5шт.

14

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Incl with 7

1шт.

15

86502604

DUST CAP

Incl with 8

1шт.

16

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Incl with 8

1шт.

17

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Incl with 1

1шт.

18

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl with 4

3шт.
