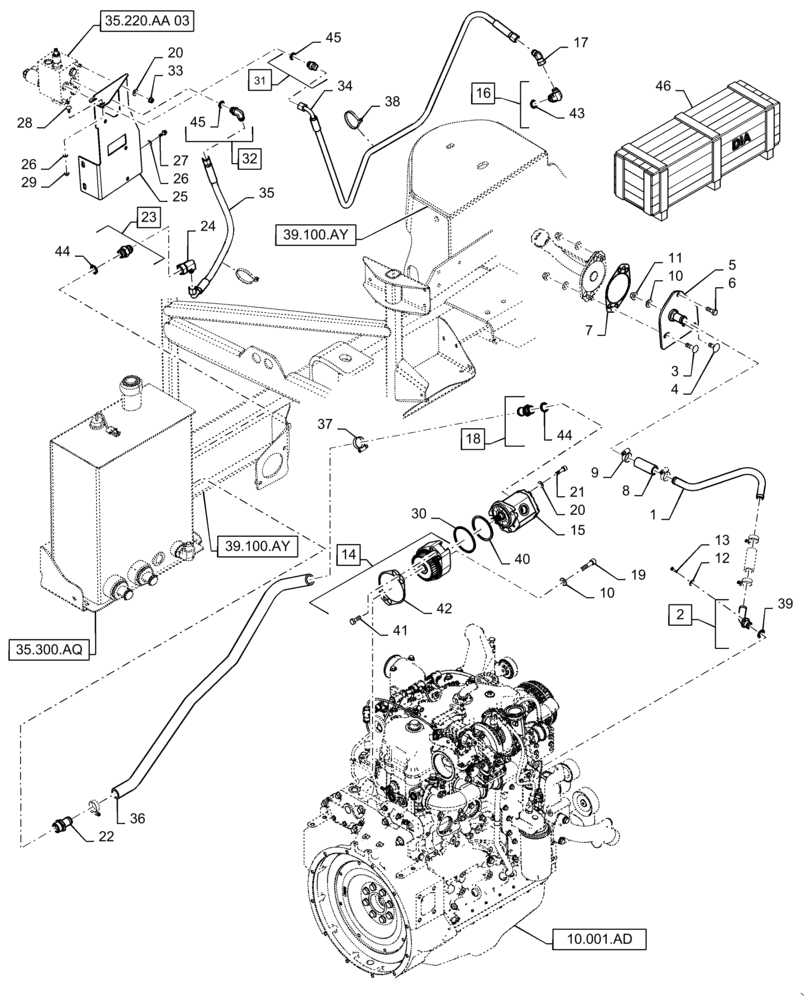

Запчасти Case IH WD1504 (35.220.AA[01]) - AUXILIARY HYDRAULIC DRIVE, 4 CYLINDER, DRAPER (35) - HYDRAULIC SYSTEMS

1

47635422

TUBE

Auxiliary Oil Fill

1шт.

2

2853116

NECK FILLER

Oil Filler, Incl 39

1шт.

3

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

1шт.

4

335890

CARRIAGE BOLT,Sq Nk, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

5

47630028

PLATE

Oil Filler Mounting

1шт.

6

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

7

4896897

GASKET,1.35mm Thk

Accessory Drive Cover

1шт.

8

84296251

HOSE,22.23mm ID x 80mm L, SAE J30R7, Type 2

Hose

2шт.

9

86634187

HOSE CLAMP,50.8mm ID - 26.9mm ID, Lined

#24

4шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

11

9804279

FLANGE NUT,Hex, M12, Cl 8

3шт.

12

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

14

84272202

PTO

Gear Pump, Incl 41 - 42

1шт.

15

87050689

HYDRAULIC PUMP,22.8 CC

Gear

1шт.

16

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 43

1шт.

17

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

18

87027931

NIPPLE

Stem, Incl 44

1шт.

19

86511099

HEX SOC SCREW,M12 x 50mm, Cl 12.9, Full Thd

2шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

21

86566100

HEX SOC SCREW,M10 x 35mm, Cl 12.9, Full Thd

2шт.

22

47503592

FITTING

Hose

1шт.

23

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 44

1шт.

24

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

25

47545029

BRACKET

Header Reverse Manifold Mounting

1шт.

26

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

27

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

28

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

2шт.

29

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

30

272310

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

31

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 45

1шт.

32

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 45

1шт.

33

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

34

47632504

HOSE

Manifold "P" Port to Pump

1шт.

35

47632502

HOSE

Manifold "T" Port to Reservior

1шт.

36

47632501

HOSE

Return

1шт.

37

86536660

HOSE CLAMP,25mm - 44mm

2шт.

38

529070

CABLE TIE,368.3mm L

3шт.

39

2852801

O-RING

Incl with 2

1шт.

40

87340205

SEAL KIT

Pump

1шт.

41

16588324

SCREW,M12 x 45mm

Gasket, Incl with 14

2шт.

42

4896897

GASKET,1.35mm Thk

Incl with 14

1шт.

43

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl with 16

1шт.

44

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl with 18, 23

2шт.

45

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl with 31 - 32

2шт.

46

47817230

KIT

DIA, 4 Cyl Auxilary Hydraulic, Draper; Instruction 47815821

1шт.
