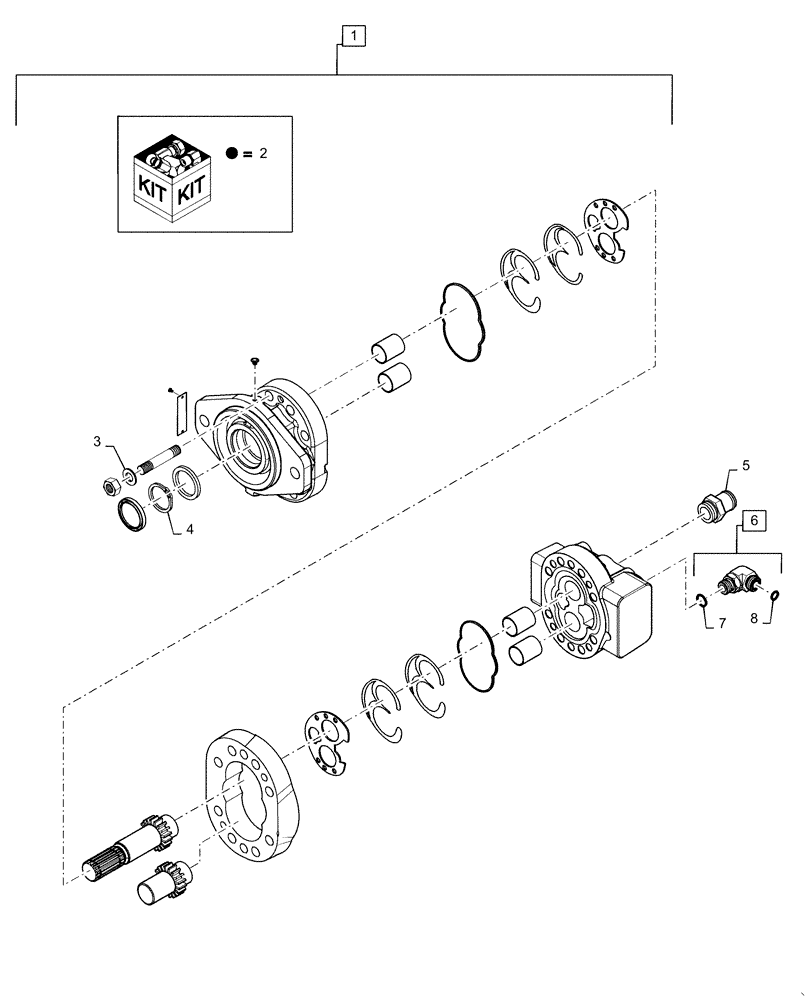

Запчасти Case IH WD1504 (35.106.AD) - HYDRAULIC PUMP, NON-DRAPER 4 CYLINDER (35) - HYDRAULIC SYSTEMS

1

87588019

PUMP

38CC, Non-Draper, 4 Cylinder, Incl 1 - 4

1шт.

1

87588019R

REMAN-HYD PUMP

38CC

1шт.

1

87588019C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

47609298

HYDRAULIC PUMP

43CC, Non-Draper, 4 Cylinder, Incl 1 - 4

1шт.

2

87618180

SEAL KIT

1шт.

3

87620369

STUD

Used With 38CC

8шт.

3

47726109

STUD

Used With 43CC

8шт.

4

66967

SNAP RING,1.75", Int, #175

1шт.

5

86634099

FITTING,1 1/2" Hose x 1 5/8"-12 ORB, Beaded

Stem

1шт.

6

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 7 - 8

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl with 6

1шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Incl with 6

1шт.
