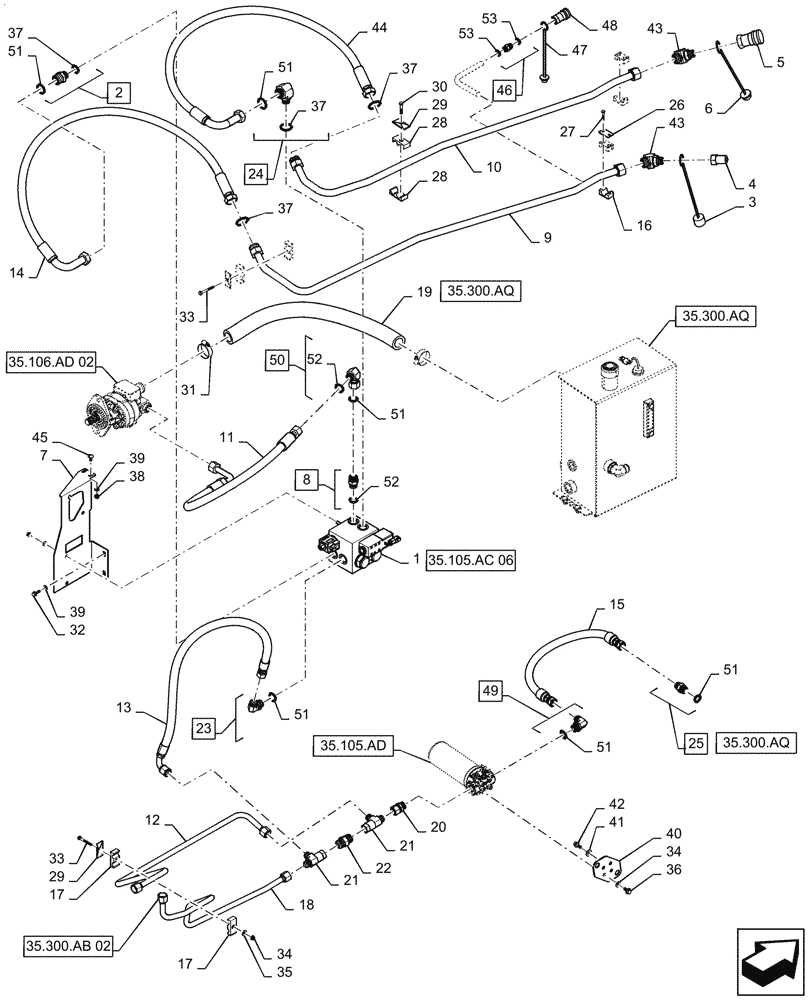

Запчасти Case IH WD1504 (35.105.AC[05]) - HYDRAULIC SYSTEM, OIL COOLER, RETURN LINES & FILTER, 4 CYL NON DRAPER (35) - HYDRAULIC SYSTEMS

1

87373659

CONTROL VALVE

Header Reverse

1шт.

2

9840329

HYD CONNECTOR

Incl 37, 51

1шт.

3

87036367

DUST CAP

Male Coupler

1шт.

4

9820148

COUPLING,1-1/16" - 12

Male

1шт.

5

86564734

COUPLING

Female

1шт.

6

87036366

DUST CAP

Female Coupler

1шт.

7

47545029

BRACKET

Header Reverse Manifold

1шт.

8

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 51 - 52

1шт.

9

47396851

HYD TUBE

RH Draper Header Reverse

1шт.

10

47396849

HYD TUBE

RH Draper Header Forward

1шт.

11

47662375

HOSE

Header Gear Pump

1шт.

12

47614889

TUBE

Oil Cooler Return

1шт.

13

47631778

HOSE

Header to Thermostat

1шт.

14

47584273

HYDRAULIC HOSE

Header Gear Pump

1шт.

15

47434631

HYDRAULIC HOSE

Header Return, Serial Range: -YFG676506

1шт.

15

47879258

HYDRAULIC HOSE

Header Return, Start Serial: YFG676507

1шт.

16

87022323

CLAMP,25.4mm D Clamping Pipe

Hydraulic Tube

2шт.

17

87000140

CLAMP,Tube, 19.05mm

Twin Tube, 19.05mm

1шт.

18

47614882

TUBE

Oil Cooler Supply

1шт.

19

47434637

HYDRAULIC HOSE

Header Pump Suction

1шт.

20

84221265

HYD CONNECTOR

Filter Inlet

1шт.

21

87698812

HYD CONNECTOR

Tee

2шт.

22

47481633

CHECK VALVE

125 PSI

1шт.

23

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 51

1шт.

24

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

Incl 37, 51

1шт.

25

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 51, Serial Range: -YFG676506

1шт.

25

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

, Start Serial: YFG676507

1шт.

26

86900727

COVER

Plate

1шт.

27

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

28

86900725

CLAMP

Twin

2шт.

29

87000230

PLATE

Hose Clamp

3шт.

30

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

1шт.

31

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

32

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

33

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

34

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

35

86521605

FLANGE NUT,5/16"-18, Cl 5

3шт.

36

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

37

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Incl with 2, 24

4шт.

38

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

39

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

40

47566635

PLATE

Filter Mounting

1шт.

41

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

42

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

43

87302733

HYD CONNECTOR

Elbow

2шт.

44

47631785

HOSE

Header Gear Pump

1шт.

45

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

2шт.

46

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 53

1шт.

47

87036368

DUST CAP

Female Coupler

1шт.

48

87037009

COUPLING, QUICK, FEM

1шт.

49

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 51

1шт.

50

84989412

ELBOW,90 Degree, 1-3/16-12 ORFS x 1-3/16"-12 Fem Sw

Incl 51 - 52

1шт.

51

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl with 2, 8, 23 - 25, 49 - 50

6шт.

52

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Incl with 8, 50

2шт.

53

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl 46

2шт.
